18m³ Garbage Compacting Truck FOTON

Sanitation truck

18m³ Garbage Compacting Truck FOTON

Garbage compacting truck consists of sealed garbage compartment, hydraulic system and operating system. The whole truck is fully sealed, self-compressed, self-dumped, and all the sewage in the process of compression is entered in the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation and avoids inconvenience to people.



  • product details

Truck Description:

CSC Garbage compacting truck (also called as compactor truck, compressed garbage truck, waste compactor truck, dust cart trash truck, refuse collection truck, dustcart, waste collection vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.


Advantage:

1: FOTON brand chassis, perfect performance, Cummins engine, super powerful, reliable performance.

2: High compression ratio and large loading capacity.

3: Computer control system to reduce the labor intensity of sanitation workers, and greatly improve the working environment.

4: Compression body capacity from 4 to 18cbm.


Technical Specification:


 18cbm Garbage compacting truck FOTON

Vehicle details

Vehicle brand

CSC

GVW

25,000kg

Kerb Weight

14,505 kg

Overall dimension

11,000x2500x3450(mmxmmxmm)

Chassis

Chassis brand

FOTON

Engine brand

Weichai (Chinese top brand)

Air conditioner

Equipped

Type of fuel

Diesel

Emission standard

Euro II

Horse power

320 HP (235kw)

Displacement

9726 cc

Wheelbase/ No. of axles

4350+1350 mm / 2

Tyre

295/80R22.5 / (10+1)pcs

Max speed

80 km/h

Superstructure details

Capacity

18 CBM

Box material

Carbon steel

Multi-way reversing valve

China famous brand

Hydraulic cylinder

China famous brand

Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate.

Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc.

Remark

Above specification is just for reference, please send us your detail request.

Contact us

Ms.Anna                                           Whatsapp:+86 18827587173

Cell phone:+86 18827587173         E-mail:annatruck@foxmail.com

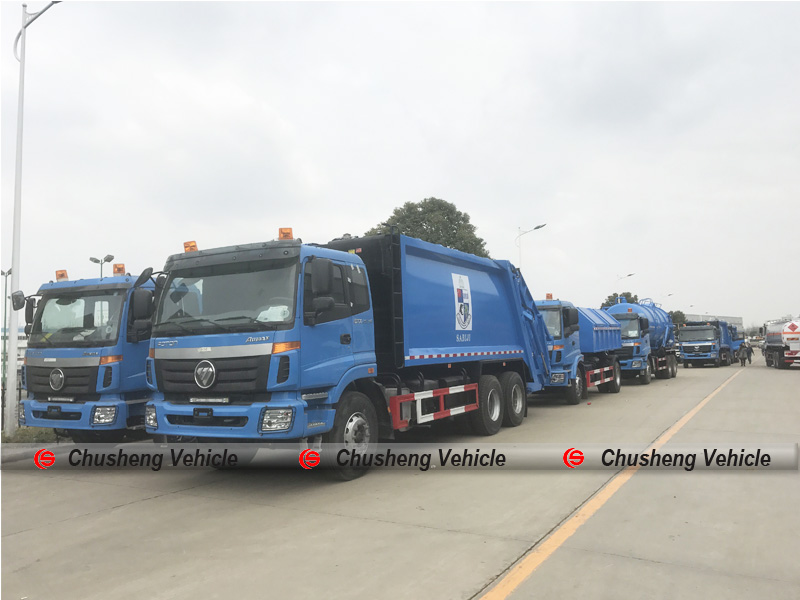

Dustpan Type of Garbage Compacting TruckGarbage Compacting TruckFoton Brand Garbage Compacting TruckDustpan Type of Garbage Compacting TruckGarbage Compacting Truck-SideGarbage Compacting Truck DispatchingGarbage Compacting Truck with FOTON Brand Chassis
