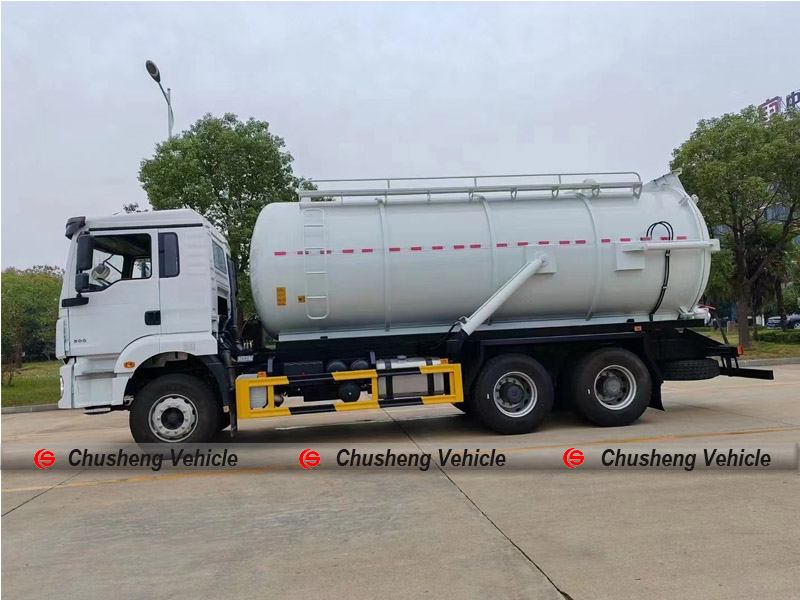

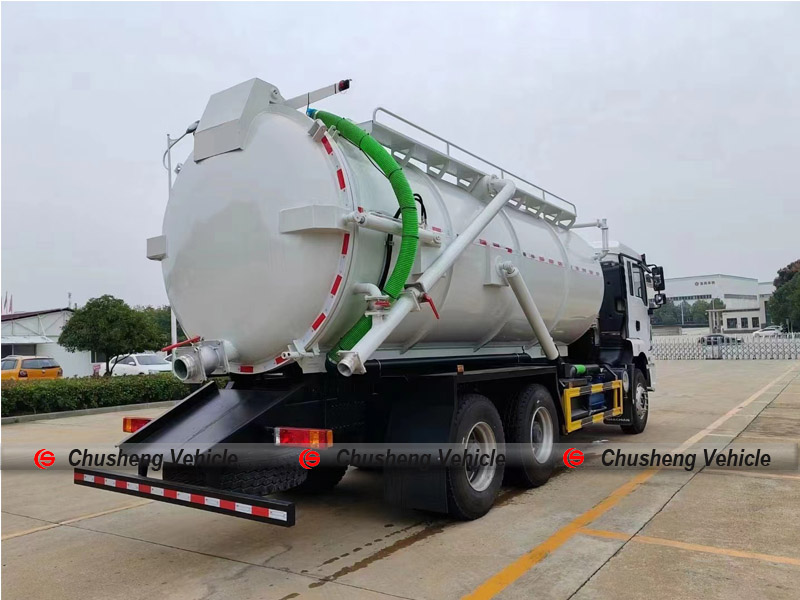

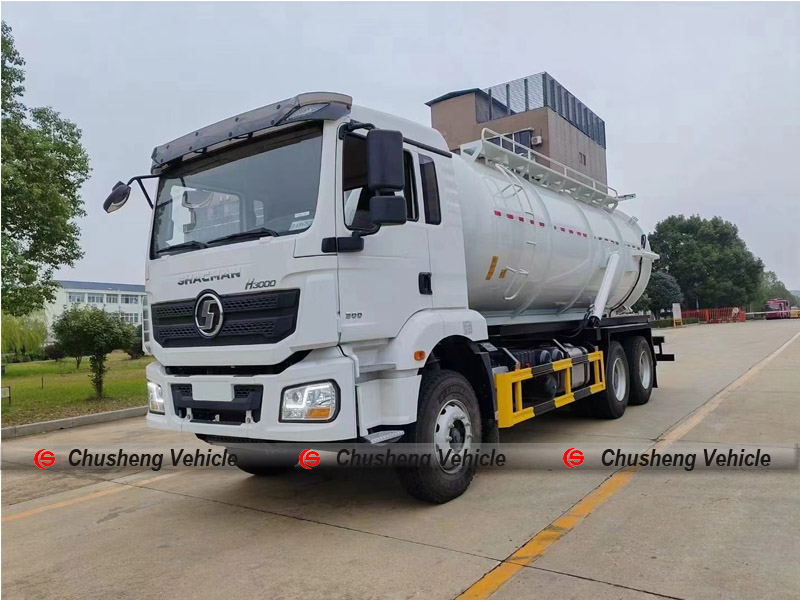

20,000 Liters Shacman Sewage Vacuum Truck

Sewage Vacuum Truck

20,000 Liters Shacman Sewage Vacuum Truck

CNCSC Sewage vacuum truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipes under high pressure, and clear sewage lines by means of a powerful vacuum suction to suck all water plus mud from sewer main hole. It is widely used in environment and sanitation field. The combine superstructure can be mounted on chassis 4x2, 4x4, 6x4, 6x6, etc.

  • product details

Truck Description:


Sewage vacuum truck (also sewage suction truck, sewer truck, sewage suction truck, vacuum suction truck, vacuum sewage suction truck, sewage suction tanker truck, sewage tanker truck, sewage drainage truck, sewage sucking truck, sewage pump truck, etc.) mainly used for sucking septic material and sludge from drains, transportation and discharge of sewage from septic tank and sludge from drains.


Advantage:


1: Vacuum Pump: Imported brand SIHI, BPP, JUROP rotary vane type and liquid ring type optional.

2: High efficiency, vacuum rate up to 99%, quick suction and discharge.

3: Rear door can be hydraulic opened for complete discharge of solid stuff.

4: Tank material optional: carbon steel, stainless steel.

5: Special chassis, reasonable structure and excellent performance.


Technology Parameter


20,000 Liters Sewage Vacuum Truck Foton

Vehicle details

Vehicle brand

CSC

GVW

25,000kg

Kerb Weight

14,505 kg

Overall dimension

11,000x2500x3800(mmxmmxmm)

Chassis

Chassis brand

Shacman

Engine brand

Weichai (Chinese top brand)

Air conditioner

Equipped

Type of fuel

Diesel

Emission standard

Euro II

Horse power

320 HP (235kw)

Displacement

9726 cc

Wheelbase/ No. of axles

4350+1350 mm / 2

Tyre

295/80R22.5 / (10+1)pcs

Max speed

80 km/h

Superstructure details

Capacity

20,000 Liters

Tank material

Carbon steel

Suction Head

7 m

Vacuum Pump

High efficient, vacuum rate 93%, SIHI water ring pump, sight glass, hydraulic cylinder, multi-way valve etc.

Remark

Above specification is just for reference, please send us your detail request.
