Truck Description:
CSC Water tank foam (also called as fire fighting
engine, fire apparatus, fire fighting equipment, foam fire truck, fire
extinguishing truck, fire-extinguishing foam truck) is widely used in urban
public security fire brigades, petrochemical field, industrial & mining
enterprises, forest, ports, docks, etc. It can extinguish the fire
independefire apparatusntly, and also supply water-foam mixture to the fire site, suitable
for extinguishing general fires, regarded as the fire vehicle for public
security fire brigades, and full-time fire brigades of enterprises and
institutions.
Advantage:
1: Dongfeng brand chassis, perfect performance, Cummins
engine, super powerful, reliable performance
2: The
main frame structure is welded by high quality square tube. Roof is non-slip
and can walk.
3:
Aluminum alloy rolling shutters are arranged on both sides of the equipment
box, and there are lights inside.
4: Long
row of warning lights installed on the top of the cab; power 100W; one light above
the rear of the vehicle.
5: Crew
room; equipment box and pump room set lighting.
6:
Drive type:4x2,4x4,6x4,6x6,8x4.
Technical Specification:

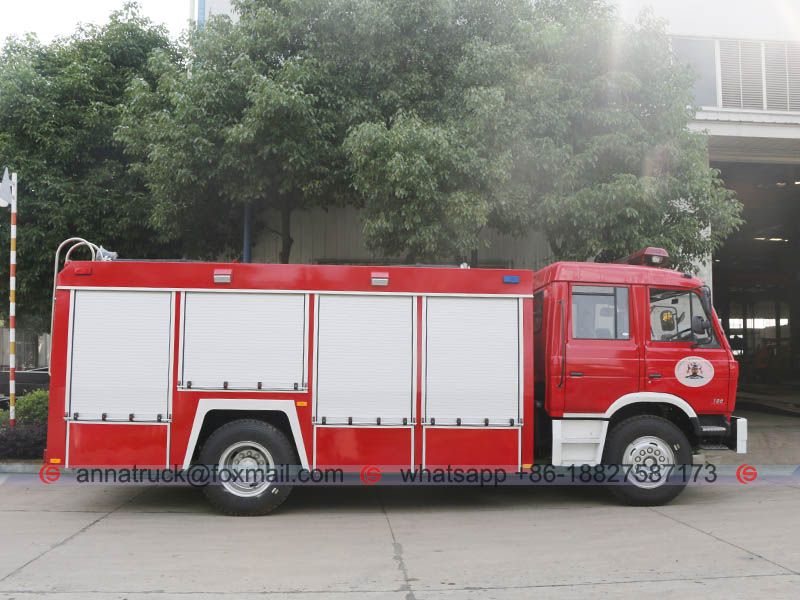

Right Hand Drive Fire Apparatus Dongfeng (6,500
Litres)
|
Vehicle Parameters
|
General
|
Vehicle Brand
|
CSC
|
Chassis Brand
|
Dongfeng(RHD)
|
Overall Dimension(mm)
|
7900x2500x3400
|
GVW/Curb Weight(kg)
|
15000/8400
|
Chassis Parameters
|
Cab
|
Cab Seat
|
2+4
|
Air Conditioner
|
Equipped
|
Engine
|
Fuel Type
|
diesel
|
Engine Brand
|
Cummins
|
Power(kw/hp)
|
190
Ps(140kw)
|
Displacement(L)
|
5.90
|
Emission Standard
|
Euro III
|
Chassis
|
Drive Type
|
4*2 , right hand drive
|
Transmission
|
6 speed front, 1 reverse, Manual
|
Wheelbase(mm)
|
4500/2
|
Tire Specification
|
10.00R20
|
Tire No.(pcs)
|
6+1
|
Max Speed(km/h)
|
85
|
Paint
|
Metallic paint
|
Fire Truck Water Tank Structure Parameters
|
Water Tank Volume
|
5000L (about1,300 gallons)
|
Tank Material
|
Carbon Steel
|
Foam Tank Volume
|
1500L(about400 gallons)
|
Tank Material
|
Stainless steel
|
Tank Thickness
|
4/3/3mm
|

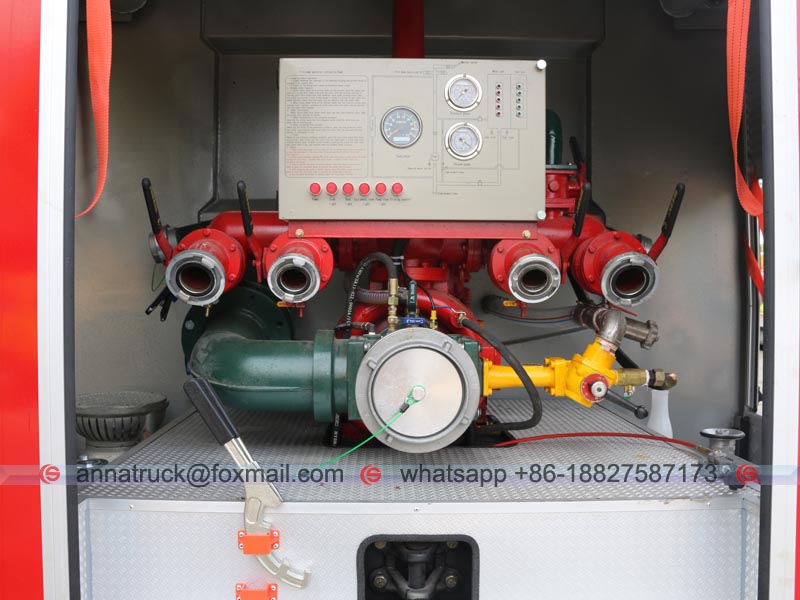

Fire pump
|
CB10/60
|
Color and Logo
|
Optional
|
Suction head
|
6 m
|
Fire Cannon
|
Flow speed
|
Water
|
50L/s
|
Foam
|
50L/s
|
Shot
|
Water
|
50L/s
|
Foam
|
50L/s
|
Standard configuration
|
Chassis,sub frame, van body, national
standard equipment box, national standard fire-fighting equipment, fire
pump(CB10/60according to the capacity), fire canon (PL48 according to the
capacity),fire power take off, sliding gate, row type lights, reel,common
tools, rear climbing ladder, water tank, foam tank, dry powder tank, nitrogen
system
|
