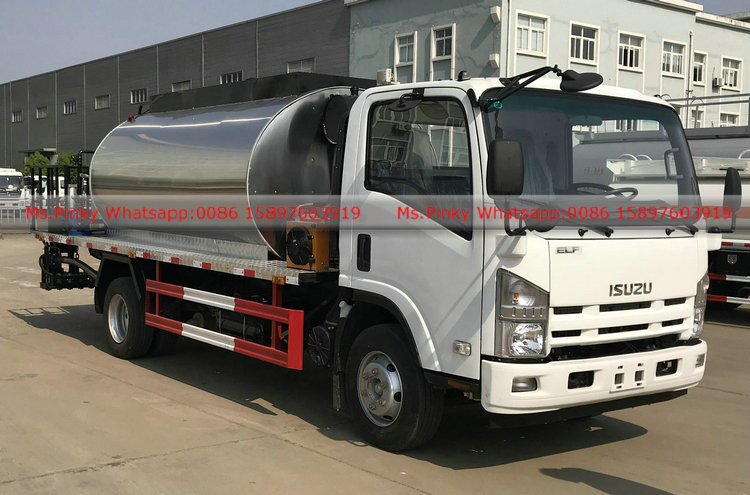

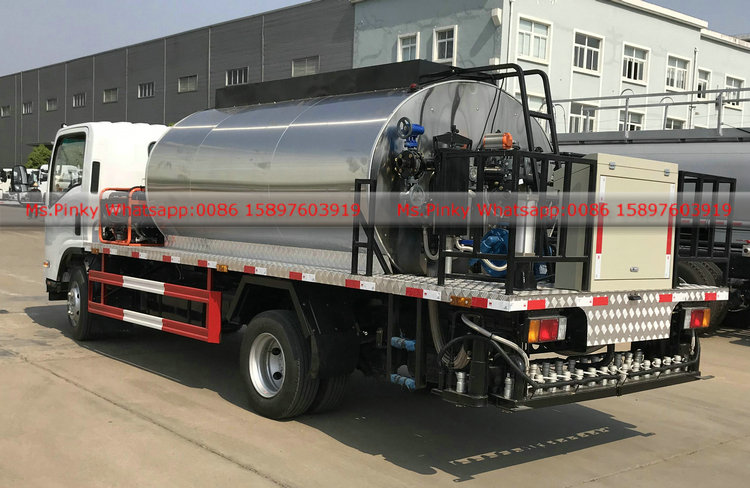

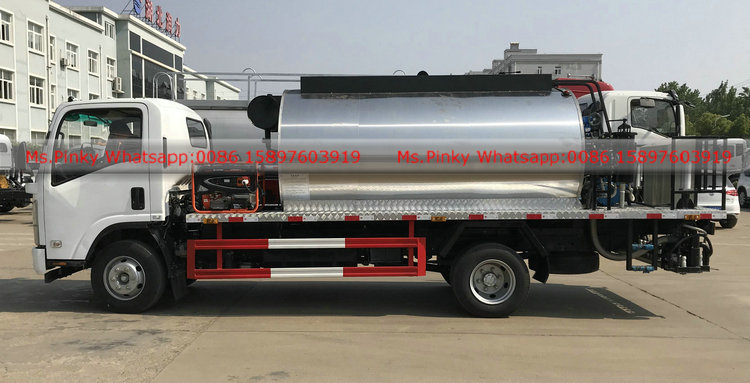

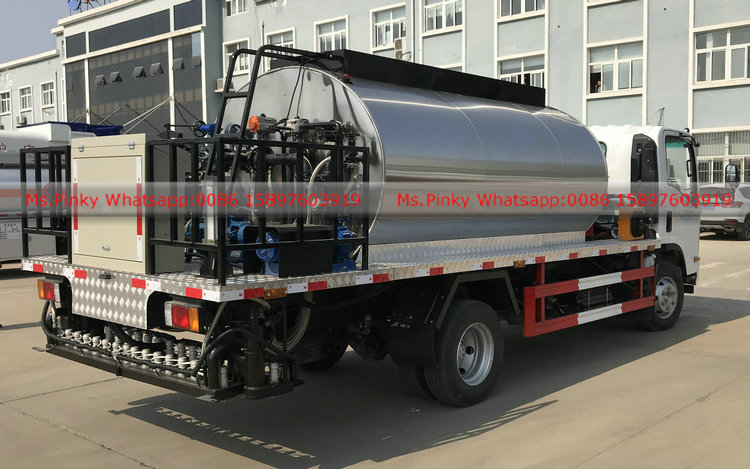

6000Litres ISUZU Asphalt Distribution Tank Truck
Original ISUZU ELF 700P Truck, ISUZU 4HK1-TC51 190HP Engine. good performance.
1. Asphalt pump: high viscosity asphalt pump, 680 liters/minute
2. Spreading width: 4.5 meters; Optional 6meter Spreading width and 39pcs Spraying Nozzle

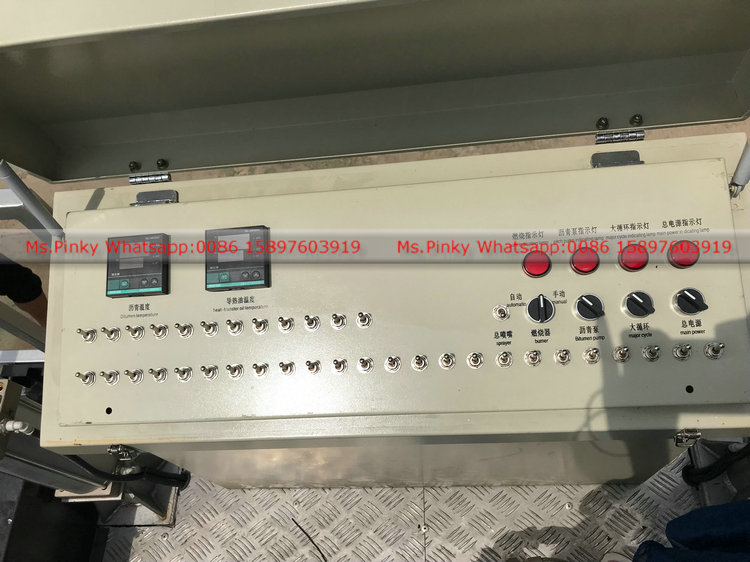

3. Control method: rear work platform operation box control; 30 pneumatic nozzles (one control);
4. Heating method: Italian imported Riyalo burner (G20)+automatic heating of thermal oil;
5. Spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc
Item No :
6000Litres ISUZU Asphalt Distribution Tank TruckOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 days
6000Litres ISUZU Asphalt Distribution Tank Truck:
| Products Technical Specification | |
| Type | 6,000Liters Bitumen spreader truck |
| Brand | 4*2 |

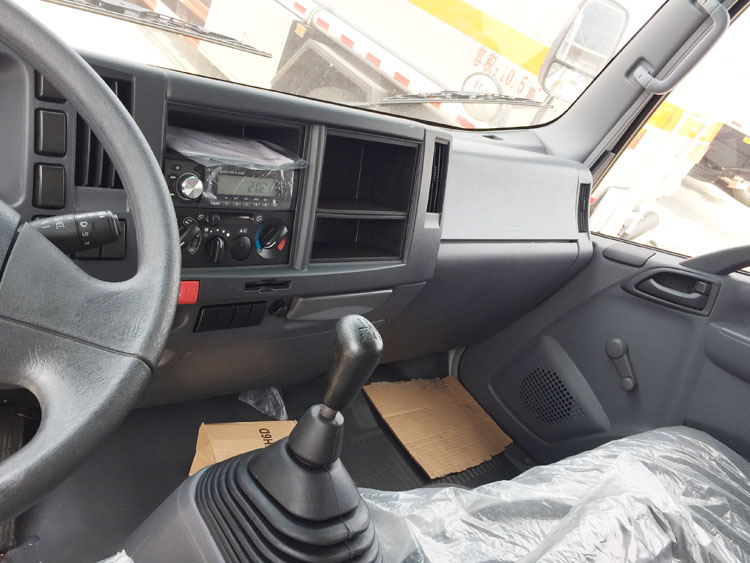

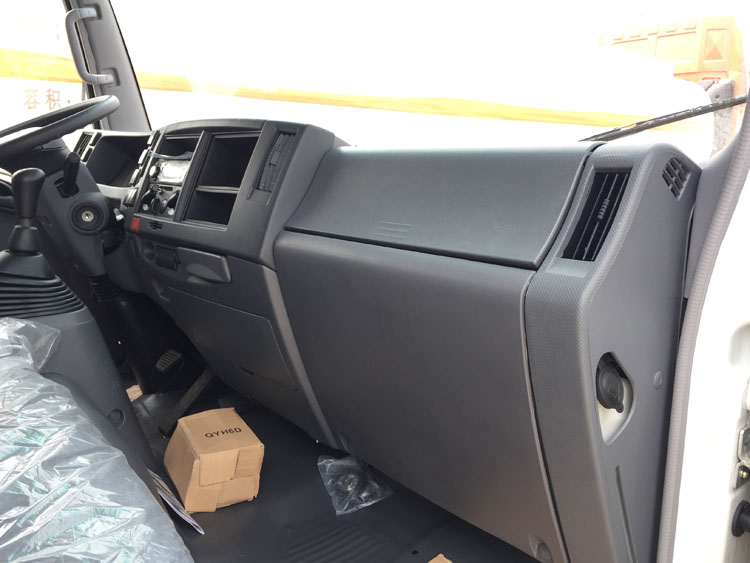

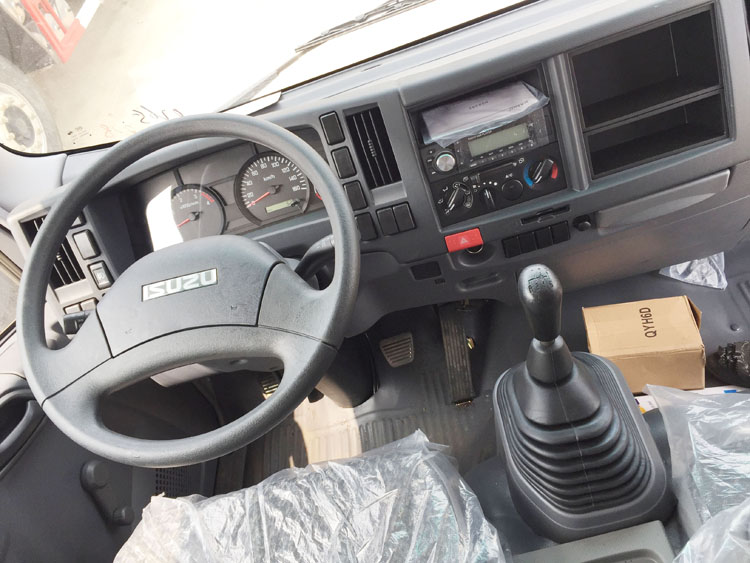

| Cab | Left hand drive, Power steering,with air condition. |
| Vehicle Description | |
| Overall dimensions（mm） | 7350*2400*2800 |
| Curb weight(vehicle) (kg) | 3990 |
| Loading capacity (kg) | 5000-6000 |
| Max speed (Km/h) | 95-120 |
| Engine | |
| Model/Rated Power | 4HK1-TC51 |
| Displacement/ power | 5193L / 141KW,190HP |
| Emission Standard | Euro 5 |
| manufacturer | ISUZU motor Co., Ltd. |
| Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging | |
| Chassis Description | |
| driving type | 4*2 |
| Wheel base | 3815mm |
| Front axle | 4T front axle |
| Rear axle | 7T rear axle |
| Gear box | ISUZU MLD SIX Forwards |
| Type & Size of Tyre | 235/75R17.5(6+1spare tire) |
| Bitumen spreader tanker equipment | |
| Capacity of tank body: | 6000Liters |
| Thickness of tank body: 4mm Q235 carbon steel. | |
| 80mm rock wool insulation material. | |
| Outside cover 1mm Matt stainless steel | |

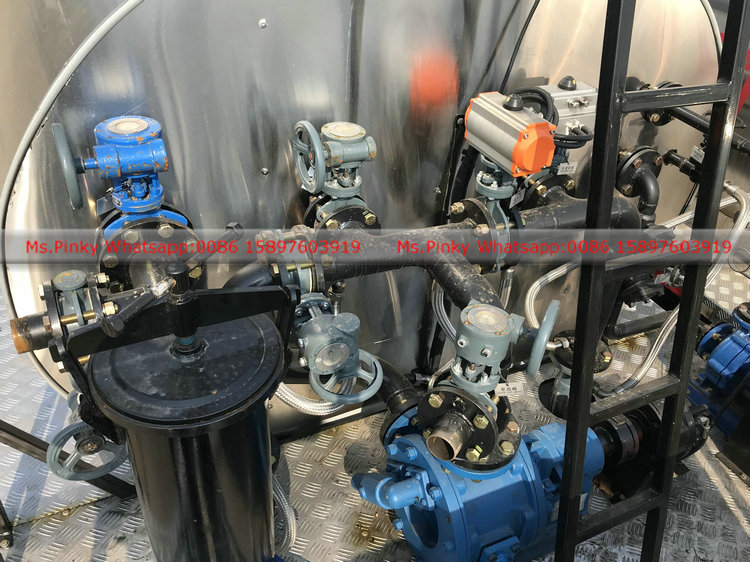

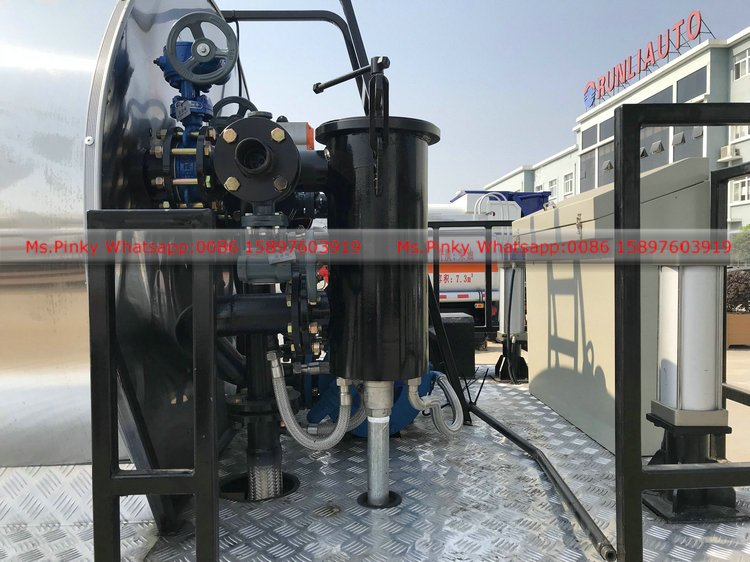

| Bitumen pump | QGB680,High viscosity asphalt pump, 680 litres / min. |
| Hydraulic system | By manual reversing valve; asphalt pump hydraulic drive motor model 05-110-BD31; |
| hydraulic pump model CBQ550-L; | |

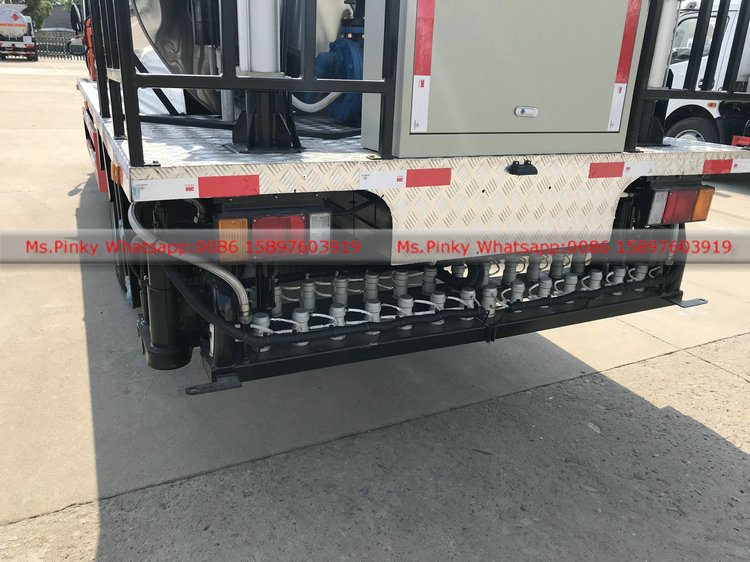

| spray width | 4.5 meters; 34 intelligent asphalt nozzles. |
| control mode | after operation platform operation box control; |
| heating way | burner (Italy G20) and heat conduction oil automatic heating; |

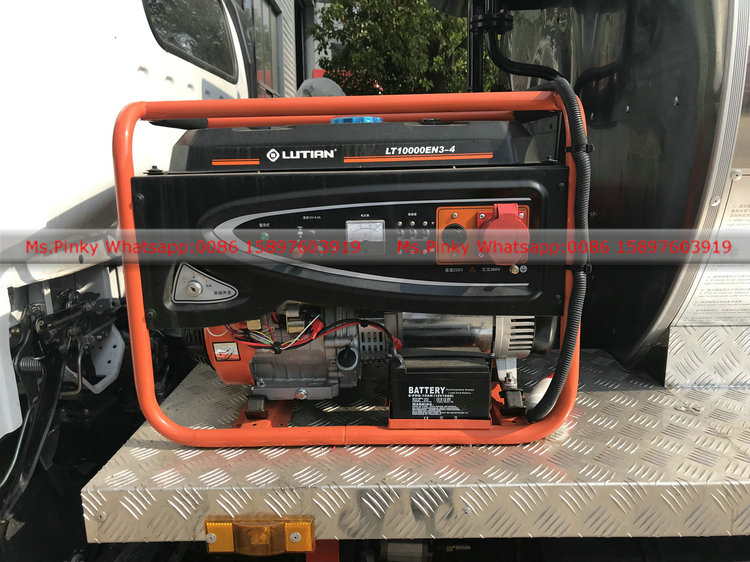

| gasoline engine | 6 kw |
| Special for Emulsified asphalt, hot asphalt and Modified asphalt | |
Working conditions of asphalt distributors produced by our company in Burundi
