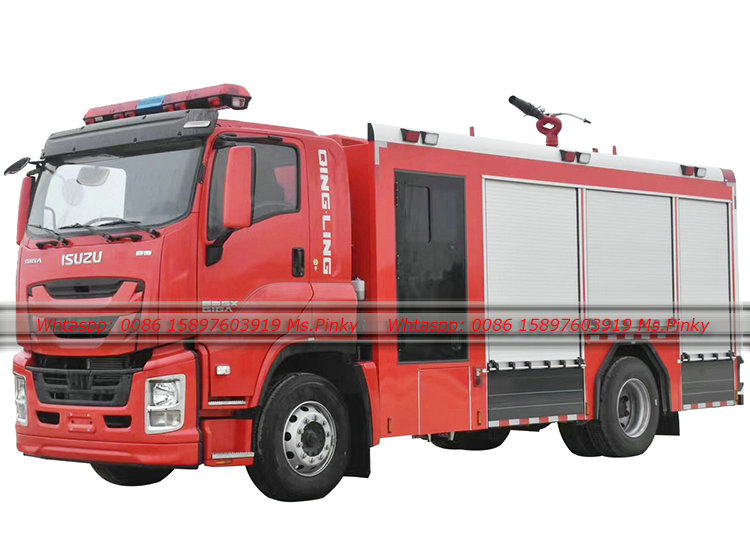

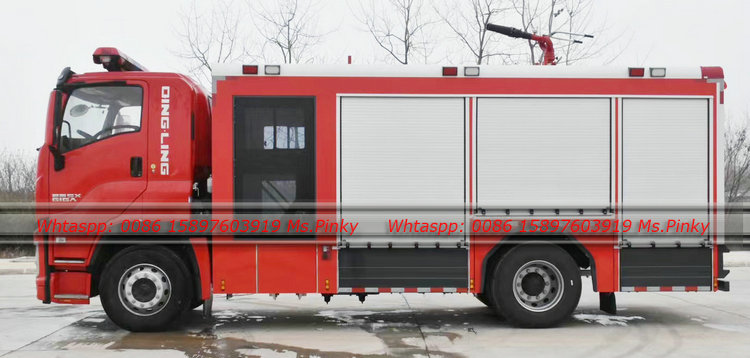

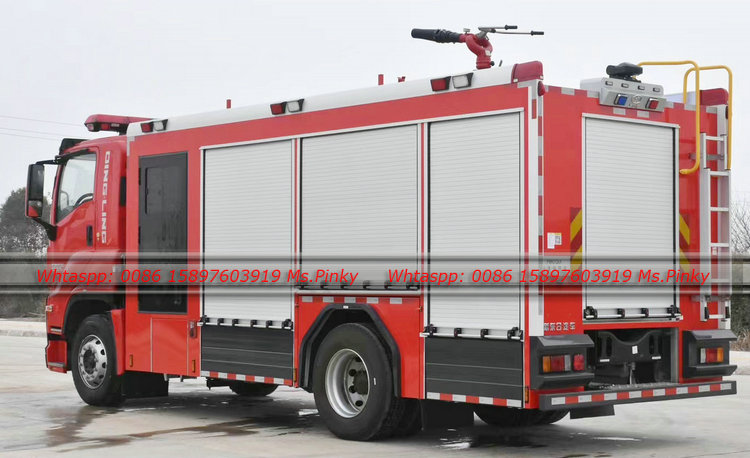

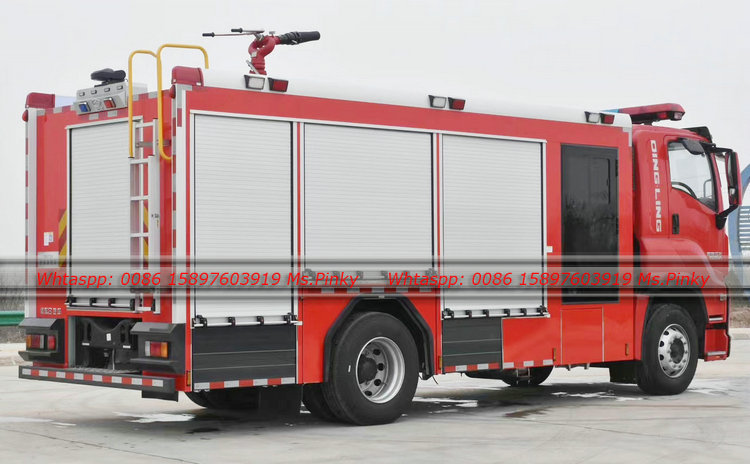

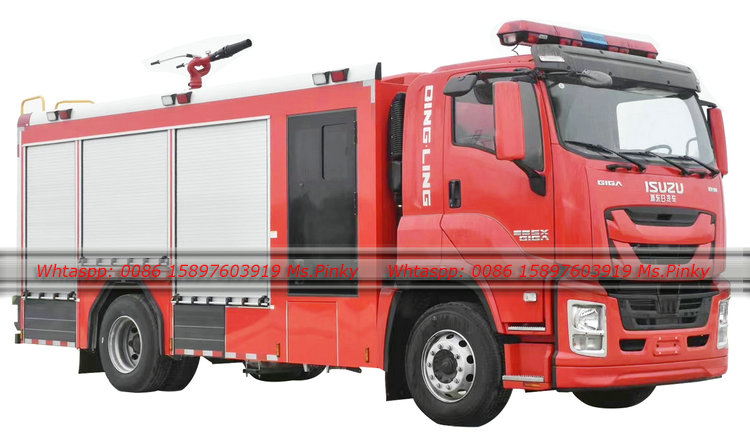

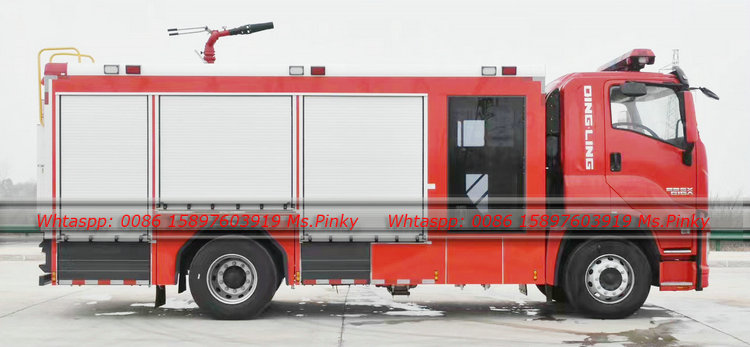

240HP ISUZU GIGA Fire Truck For Philippines

240HP ISUZU GIGA Fire Truck For Philippines

• ISUZU GIGA Fire Truck is composed of ISUZU chassis, tank, water pump, pipeline, instrument circuit system and other components.
• The Fire Truck is equipped with aluminum alloy rear ladder (removable).
• The pump room is at the rear of the Truck.
• The tank body is welded with steel plate, with a liquid carrying capacity of 6.0 m3 (4 m3 of water/2 m3 of foam).
• The water tank is made of high-quality carbon steel plate. The inside of the water tank is subject to anti-corrosion treatment.
• The foam tank is made of stainless steel.

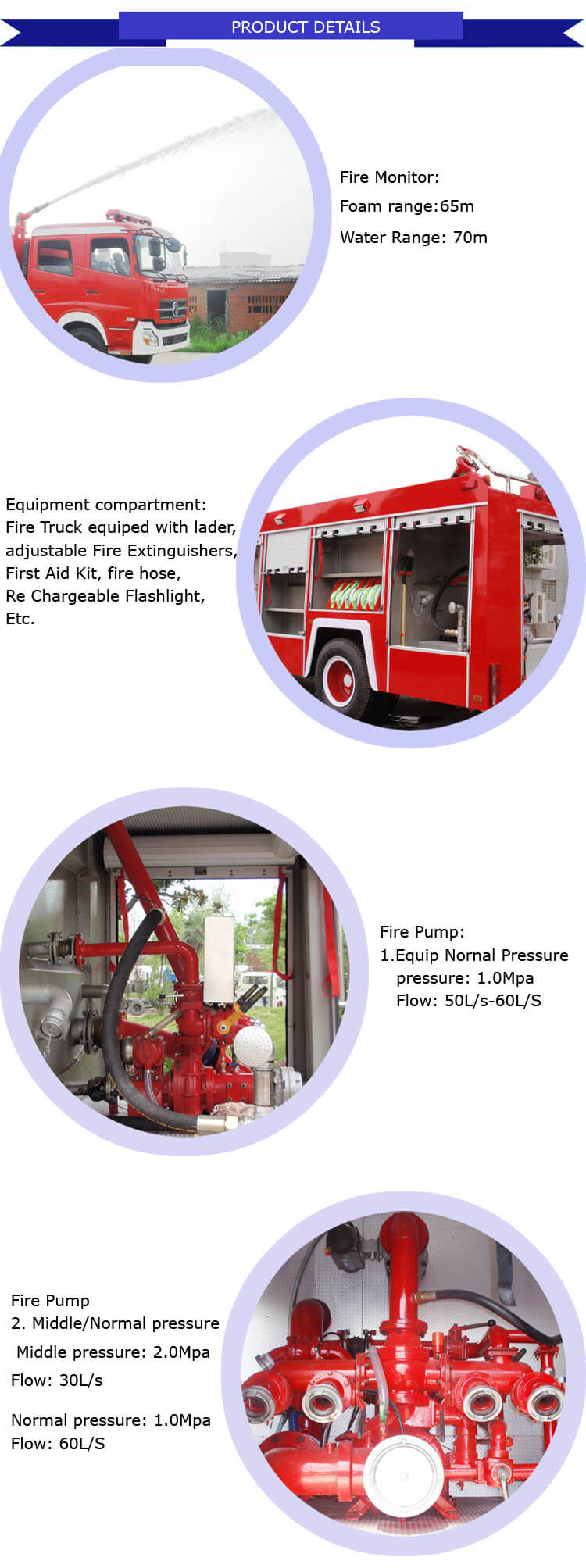

• The vehicle is equipped with CB0/40 atmospheric fire pump and PS40 dual-use fire monitor.

• 240HP ISUZU GIGA Fire Truck specs :

Product name	ISUZU GIGA Fire Truck
Outside dimension	8160×2540×3750mm
Total weight	16900kgs
Loading weight	6000kgs
Kerb weight	10450kgs
Passenger	2+4
Wheelbase	4500mm
Engine model	ISUZU 6HK1-TCG61   6Cylinder
Engine power	177kw/240HP
Displacement	7790CC
Tire	295/80R22.5 16PR  6+1
Other special equipment:
Tank capacity: 6000Liters
Among: water tank capacity 4000Liters; carbon steel material
Foam tank capacity 2000Liters; stainless steel material
Fire pump: CB0/40;
Fire monitor:PS40，Range≥60meter











we can design and produced different Fire Truck according to Customer's requirment, including water tank fire truck, Foam Fire Truck, Foam Dry Powder Combined Fire Truck, Emergency Rescue Fire Truck, High Spraying Fire Truck, Water Supply Fire Truck and Mini Fire Truck, Etc.
