460HP ISUZU GIGA Water Tank Truck
Item No :
460HP ISUZU GIGA Truck Mounted Crane 12Tons XCMG CraneOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysOptional 18Tons to 20Tons Loading capacity
Optional: 6*6 all wheel drive

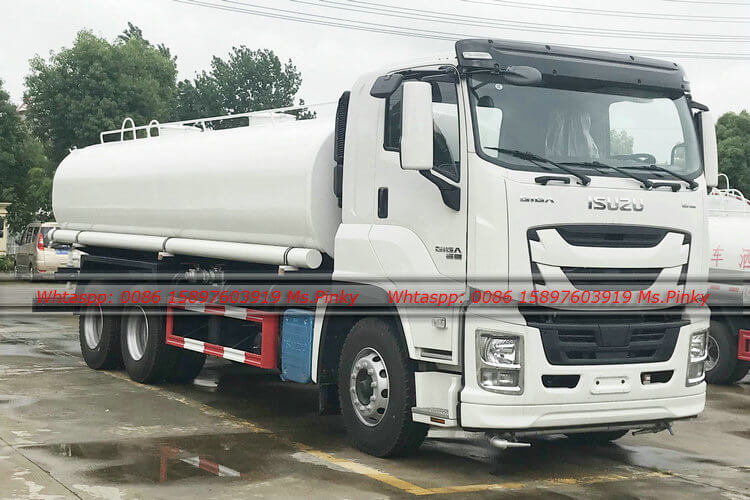

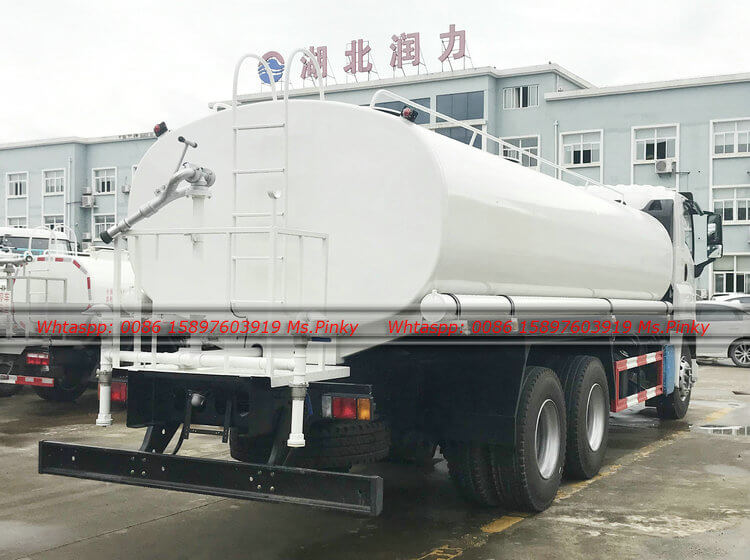

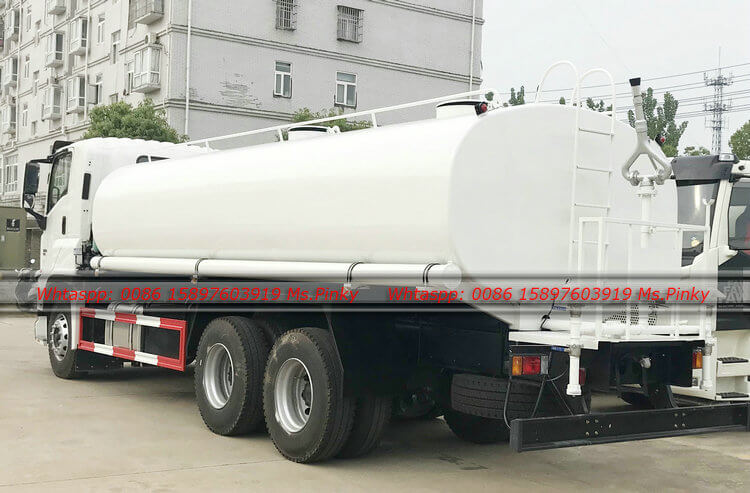

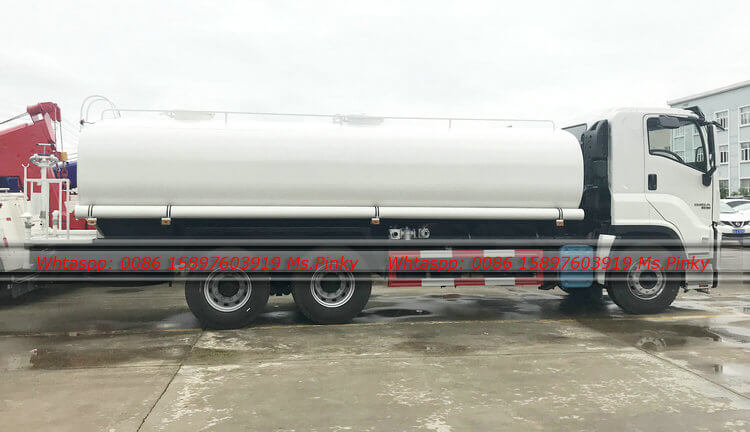

460HP ISUZU GIGA Water Truck Water Tanker Truck Water Spraying Vehicle:
| Products Technical Specification | |
| Type | ISUZU 20m Water Truck |
| Brand | ISUZU 6*4 |
| Cab | With A/C, on bed |
| Vehicle Description | |
| Overall dimensions（mm） | 9800*2500*3500 |
| Curb weight(vehicle) (kg) | 9800 |
| Max speed (Km/h) | 110 |
| Engine | |
| Mode | 6WG1-TCG51 |
| Type | Diesel, 6-cylinder in line with water cooling, |
| turbo-charging | |
| Max. power/rotated speed | 338(KW) / 460HP |
| Displacement(ML) | 16000 |
| Company of engine | ISUZU Motor |
| Emission level | Euro 5 |
| Chassis Description | |
| Wheel base | 4565+1370 |
| Front axle | Elliot I-beam type 8T |
| Rear axle | Driving axle, 26T*2 |
| Gear box | Fast 12 forwards |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tyres | 315/80R22.5 |
| Capacity of tank body | 20,000Litres |
| Material of tank body | Carbon steel 5mm thickness |
| Compartments | One compartment |
| Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. |
| Manhole | Two manhole on the top of tank body |
| ladder | Steel mounted at front, bolted top and bottom |
| walkway | Along the top of the tank, sand paint |
| Cabinet | One at the side the tank covering the valve. |
| With pump: | |
| FAST 12 forwards + 2 reverse, with air condition, power steering, Electrical glass, ABS Battery: 12V*2 115Ah*2 | |
