190HP ISUZU Tanker Truck:
Item No :
Philippine 8Tons ISUZU Drinking Water Transport Vehicle Stainless Steel Tanker for Potable WaterOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysOptional : 4x4 Driving

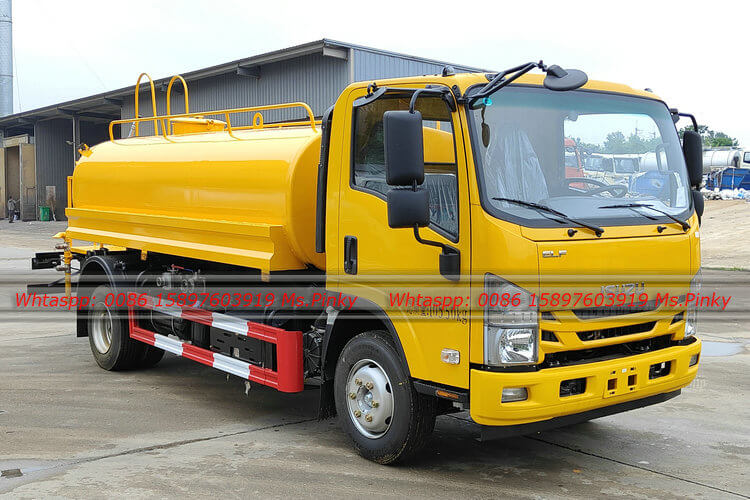

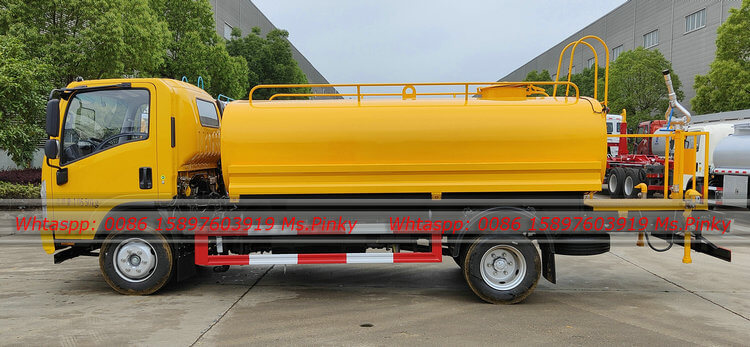

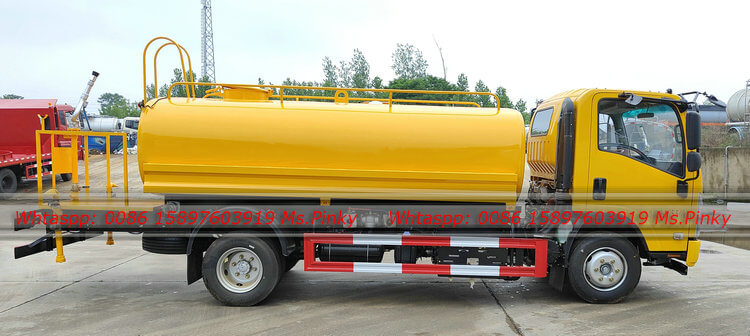

8Tons ISUZU Drinking Water Transport Vehicle:
| Products Technical Specification | |
| Type | 8Tons Water Truck |
| Brand | ISUZU 4*2 |

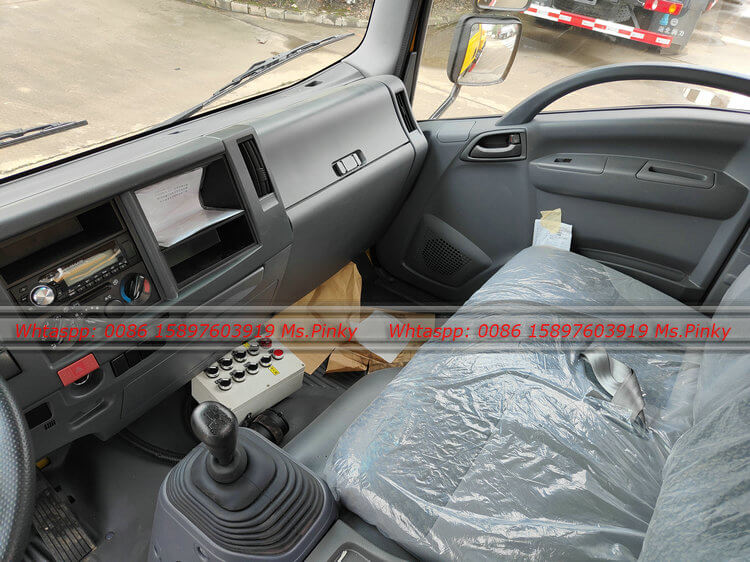

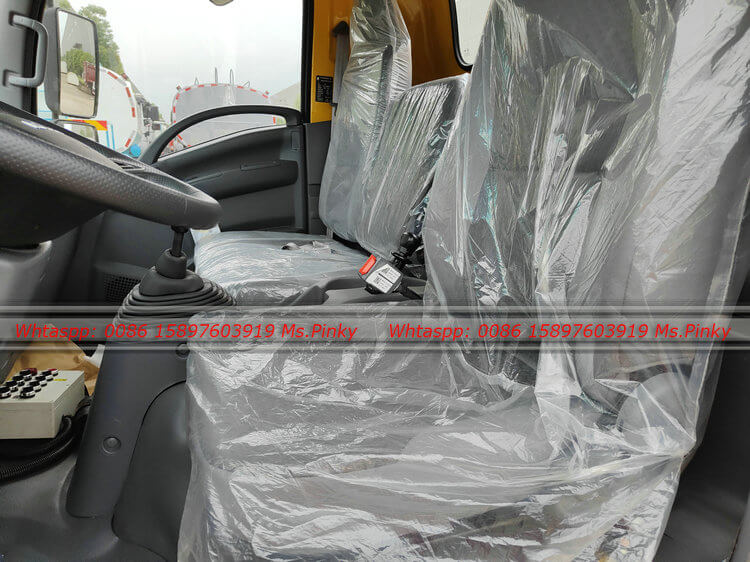

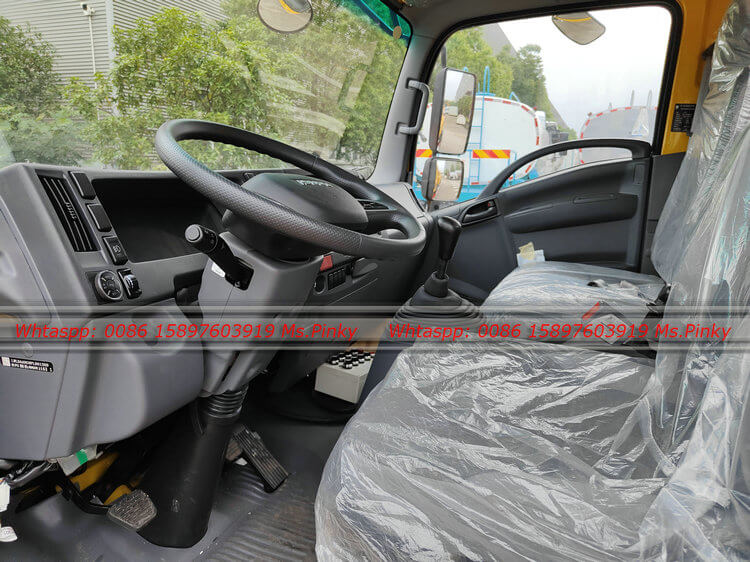

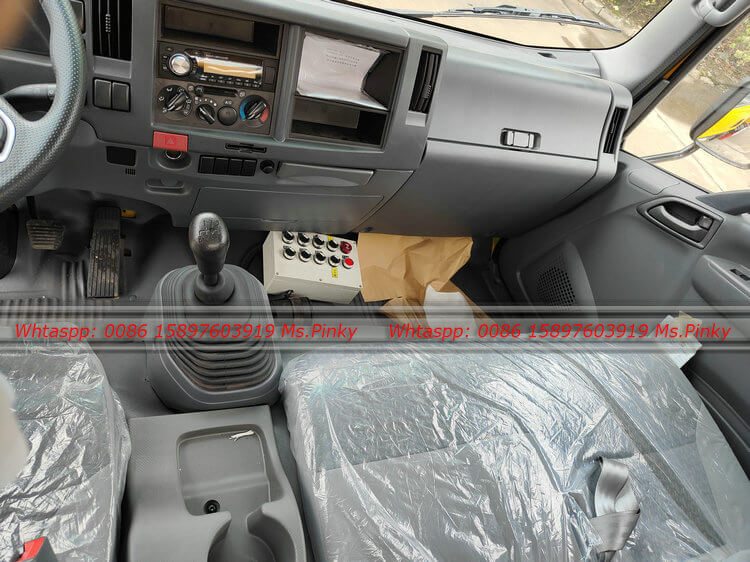

| Cab | Power steering, air condition |
| Vehicle Description | |
| Overall dimensions（mm） | 7150×2300×2850 |
| Curb weight(vehicle) (kg) | 4,735 |
| Loading capacity (kg) | 6,600 |
| Max speed (Km/h) | 95-120 |

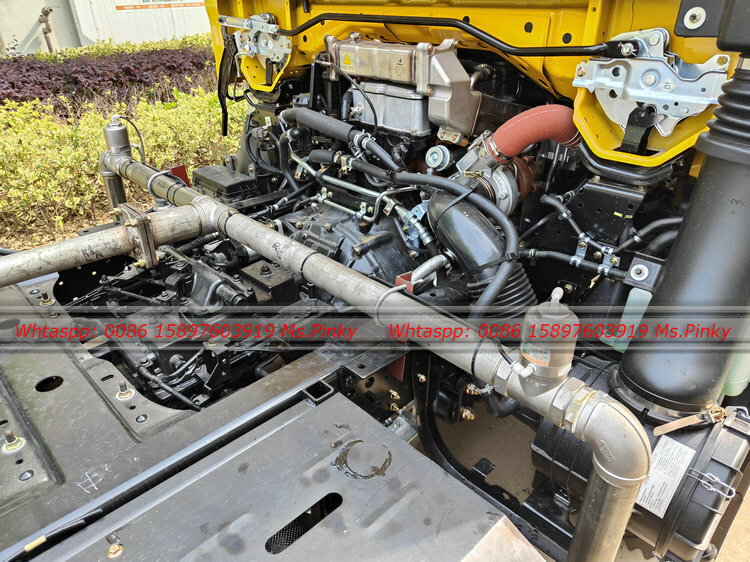

| Engine | |
| Mode | 4HK1-TC51 |
| Type | Diesel, 4-cylinder in line with water cooling,turbo-charging |
| Max. power/rotated speed | 140(KW) /190HP |
| Displacement(ML) | 5193 |
| Emission level | Euro 5 |

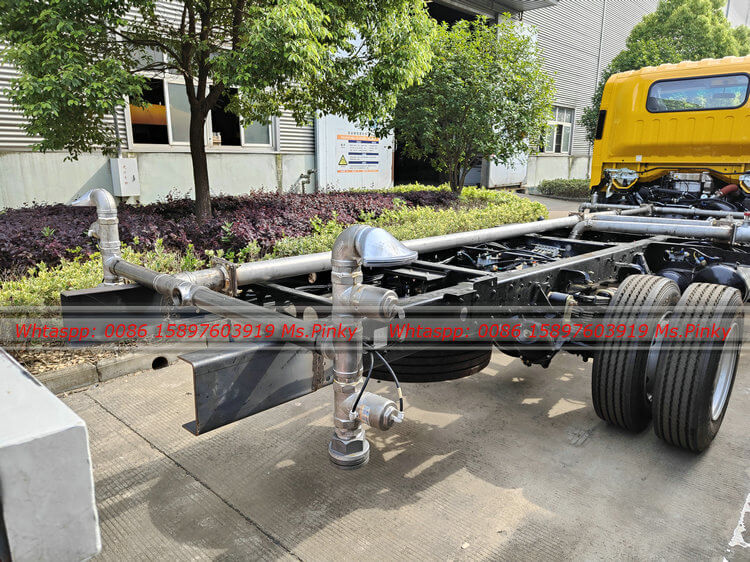

| Chassis Description | |
| Wheel base | 3815 |
| Front axle | 4T front axle |
| Rear axle | 7T rear axle |
| Front tread / rear tread | 1680/1650 |
| Gear box | ISUZU MLD 6 Forwards |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tyres | 235/75R17.5 |

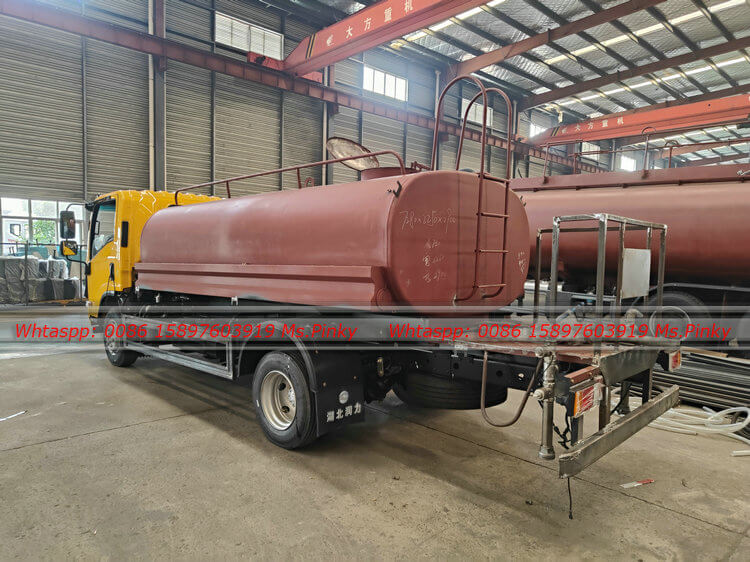

| Fuel tanker | |
| Capacity of tank body | 8,000Litres |
| Material of tank body | Stainless Steel 4mm thickness |
| Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. |
| Manhole | one manholes on the top of tank body |
| ladder | Steel mounted at front, bolted top and bottom |
| walkway | Along the top of the tank, sand paint |
| Cabinet | One at the side the tank covering the valve. |
| Painting | One anti corrosion and zinc-rich primer and final painting will be accordance with customer need. LOGO customized |
