460HP ISUZU GIGA Boom Crane Truck,
Item No :
ISUZU GIGA Boom Crane Truck XCMG SQS300 12Ton Lifting Telescopic CraneOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysOptional 3T to 30Tons Loading capacity Crane
Telescopic boom or Knuckled Boom For Choise

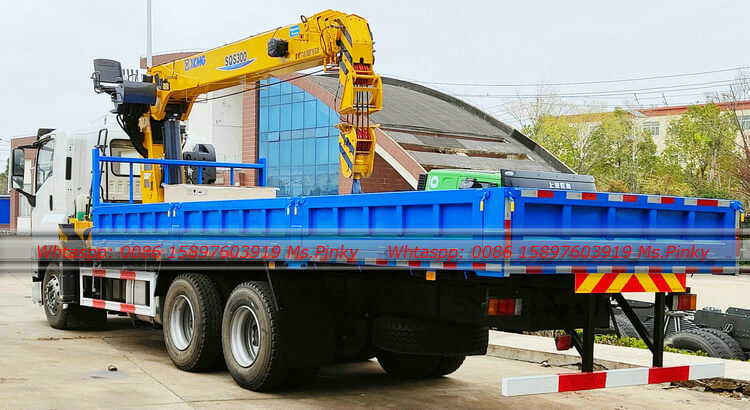

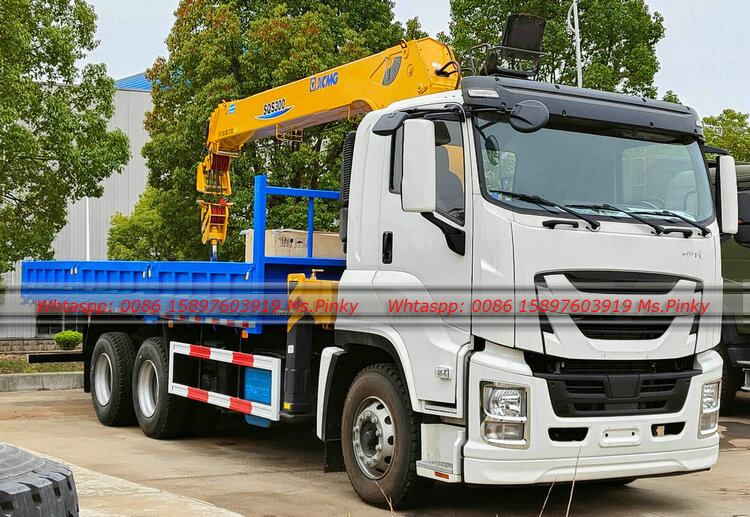

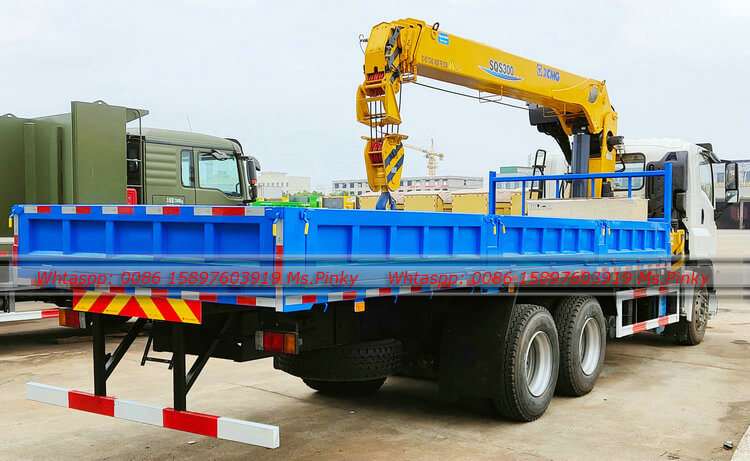

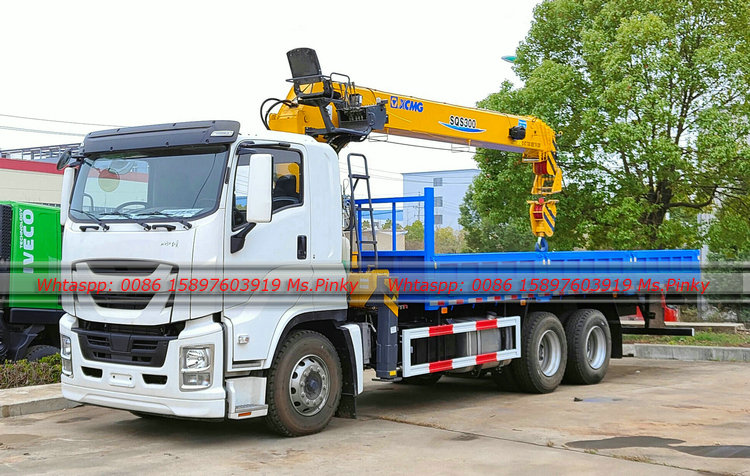

460HP ISUZU GIGA Boom Crane Truck XCMG SQS300 12Ton Lifting Telescopic Crane:
| Products Technical Specification | |
| Type | ISUZU GIGA Boom Crane Truck XCMG SQS300 12Ton Lifting Telescopic Crane |
| Brand | ISUZU 6*4 |

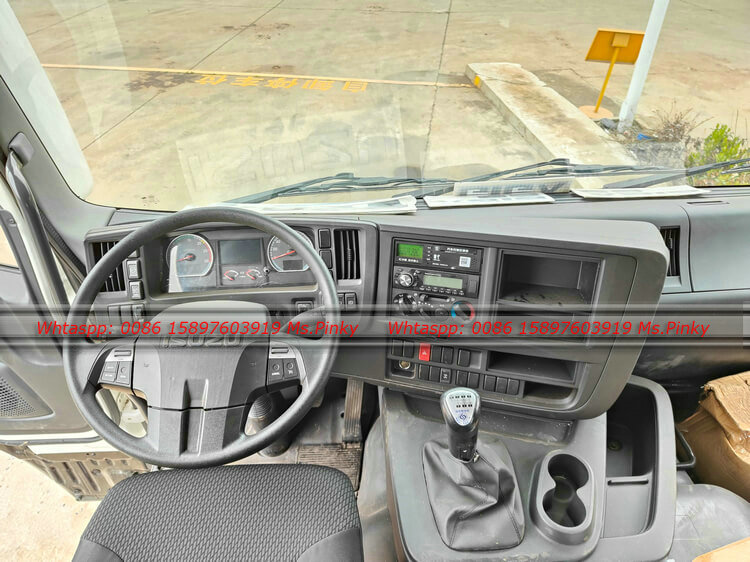

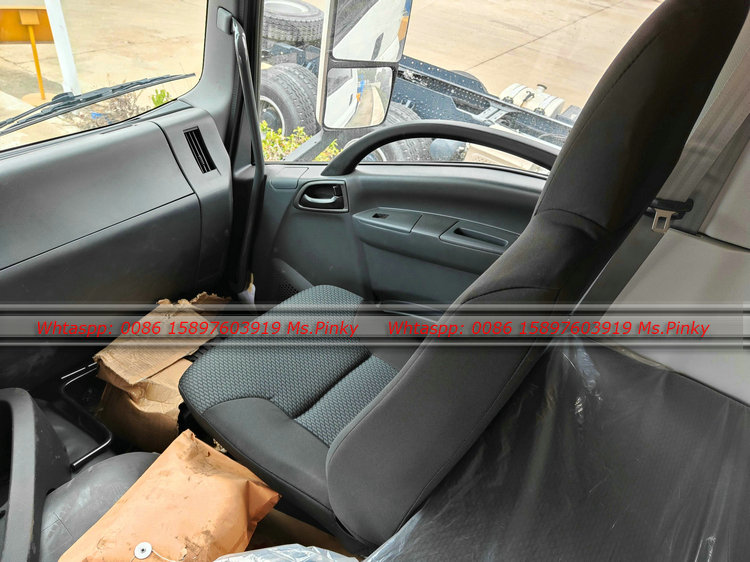

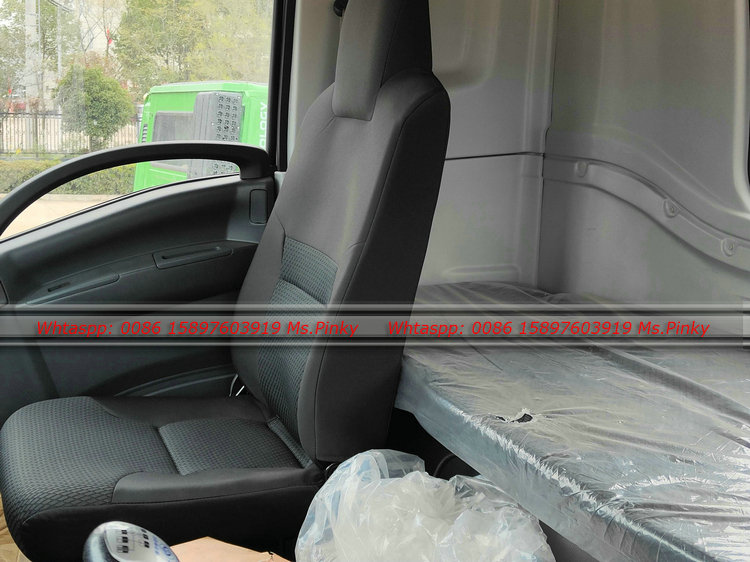

| Cab | With A/C, on bed |
| Vehicle Description | |
| Overall dimensions（mm） | 9500*2500*3600 |
| Curb weight(vehicle) (kg) | 9800 |
| Max speed (Km/h) | 110 |
| Engine | |
| Mode | 6WG1-TCG51 |
| Type | Diesel, 6-cylinder in line with water cooling, |
| turbo-charging | |
| Max. power/rotated speed | 338(KW) / 460HP |
| Displacement(ML) | 16000 |
| Company of engine | ISUZU Motor |
| Emission level | Euro 5 |
| Chassis Description | |
| Wheel base | 4565+1370 |
| Front axle | Elliot I-beam type 8T |
| Rear axle | Driving axle, 26T*2 |
| Gear box | Fast 12 forwards |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tyres | 315/80R22.5 |
| Max. Lifting capacity | 12000 Kg |
| Max. Lifting height | 14.5 m |
| Max.Lifting moment | 30 K.m |
| working radius | 12.5 m/kg |
| Recommend Power | 30 Kw |
| Max. oil flow of hydraulic system | 63 L/min |
| Max.pressure of hydraulic system | 26 Mpa |
| oil tank capacity | 160 L |
| crane weight | 4200 kg |
| FAST 12 forwards + 1 reverse, with air condition, power steering, Electrical glass, ABS,Battery: 12V*2 115Ah*2 | |
