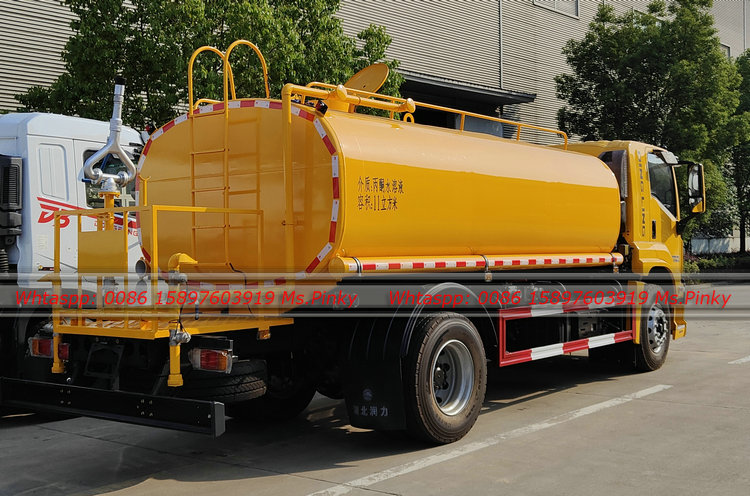

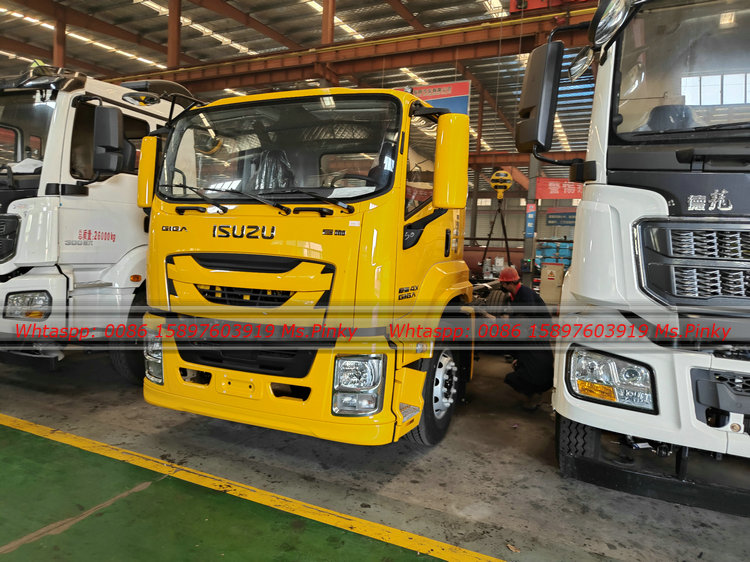

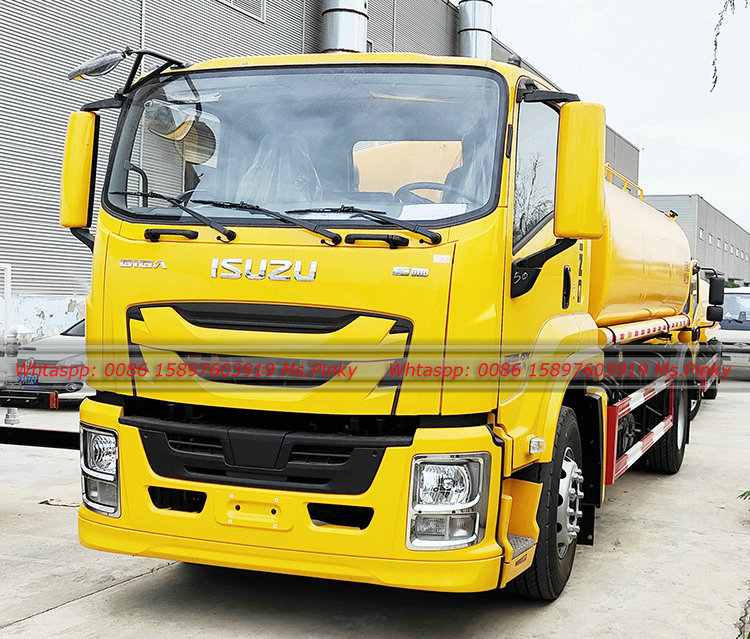

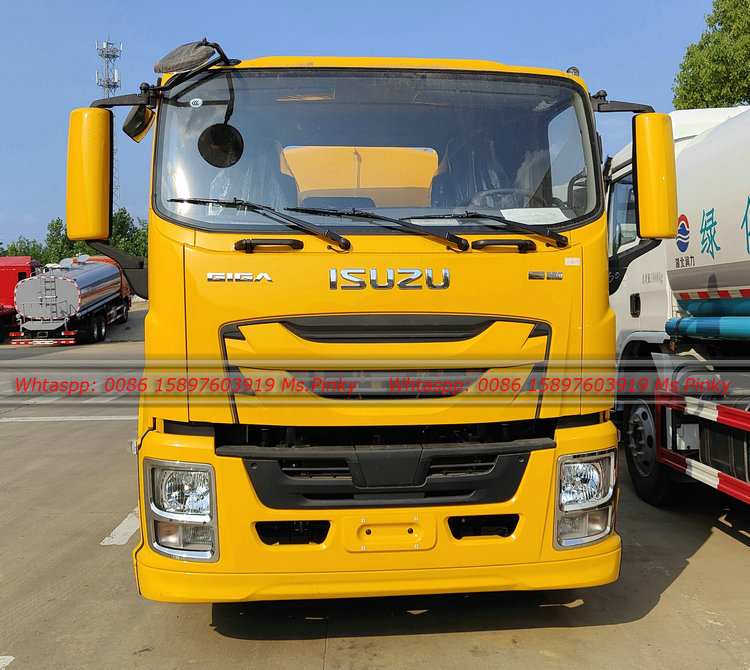

ISUZU GIGA 205HP Water Truck:
Item No :
New 205HP ISUZU GIGA 12000Liters 12Tons Stainless Steel Potable Drinking Water Tank Truck Spray Water TruckOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysOptional : 4x4 Driving

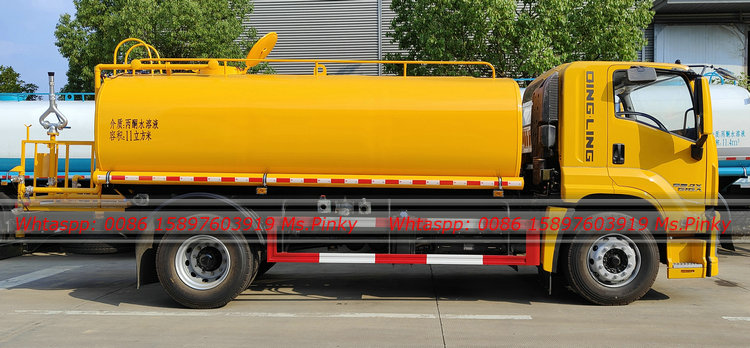

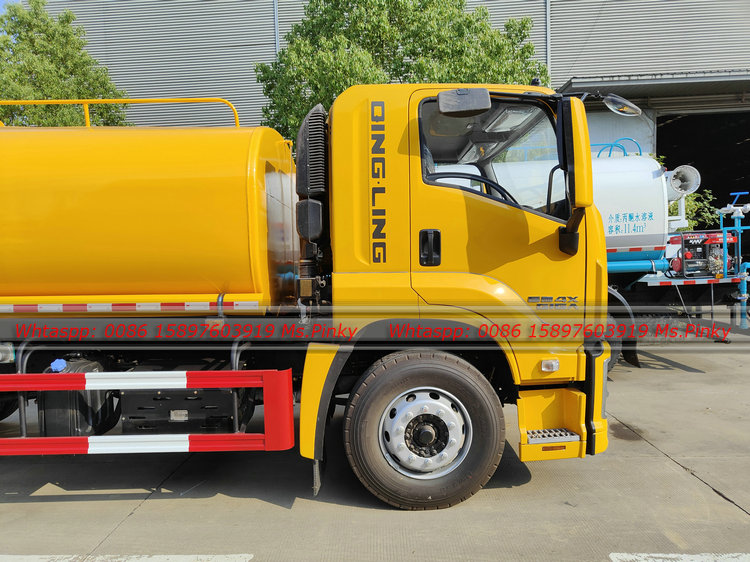

12cbm ISUZU GIGA Spray Water Truck:
| Products Technical Specification | |
| Type | ISUZU GIGA 205HP Water Truck For Potable Drinking Water |
| Brand | ISUZU 4*2 |

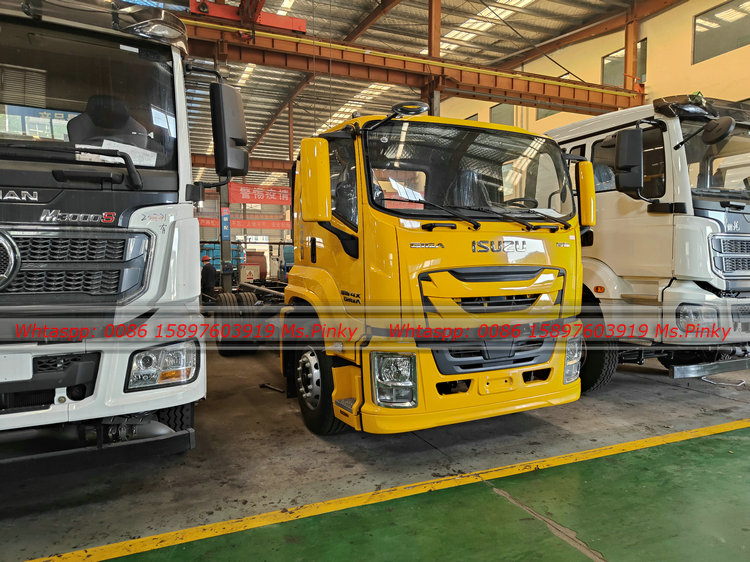

| Cab | With A/C, on bed |
| Vehicle Description | |
| Overall dimensions（mm） | 8250×2550×3150 |
| Loading capacity | 11000-12000Liters |
| Curb weight(vehicle) (kg) | 9800 |
| Max speed (Km/h) | 110 |
| Engine | |
| Mode | 4HK1-TCG60 |
| Type | Diesel, 4-cylinder in line with water cooling, |
| turbo-charging | |
| Max. power/rotated speed | 151(KW) / 205HP |
| Displacement(ML) | 5193 |
| Company of engine | ISUZU Motor |
| Emission level | Euro 6 |

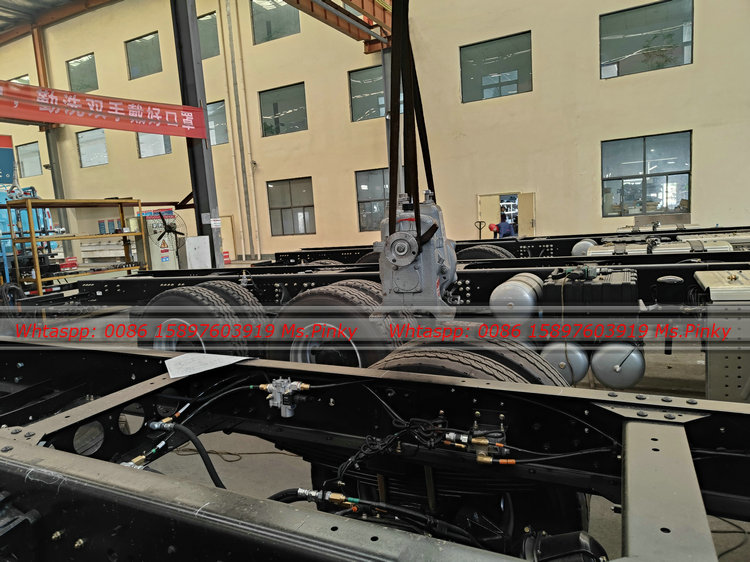

| Chassis Description | |
| Wheel base | 4500 |
| Front axle | Elliot I-beam type 6.3T |
| Rear axle | 13T |
| Gear box | ISUZU MLD 6 forwards |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |

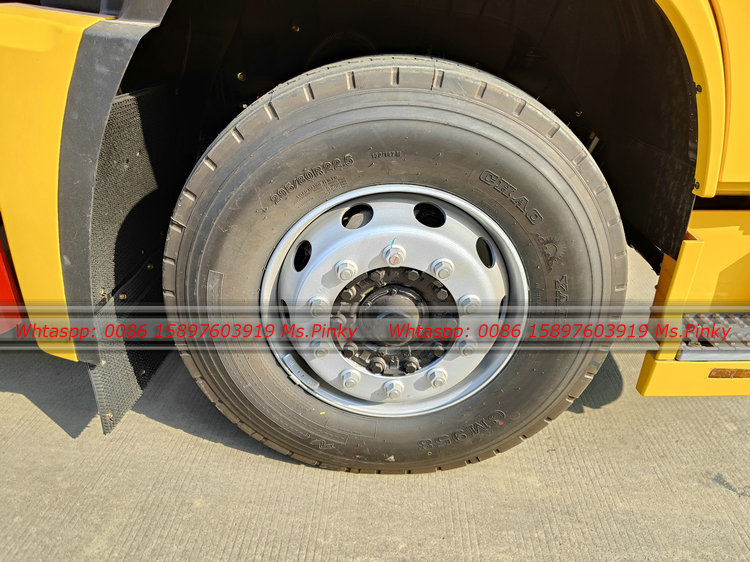

| Tyres | 295/80R22.5 18PR |

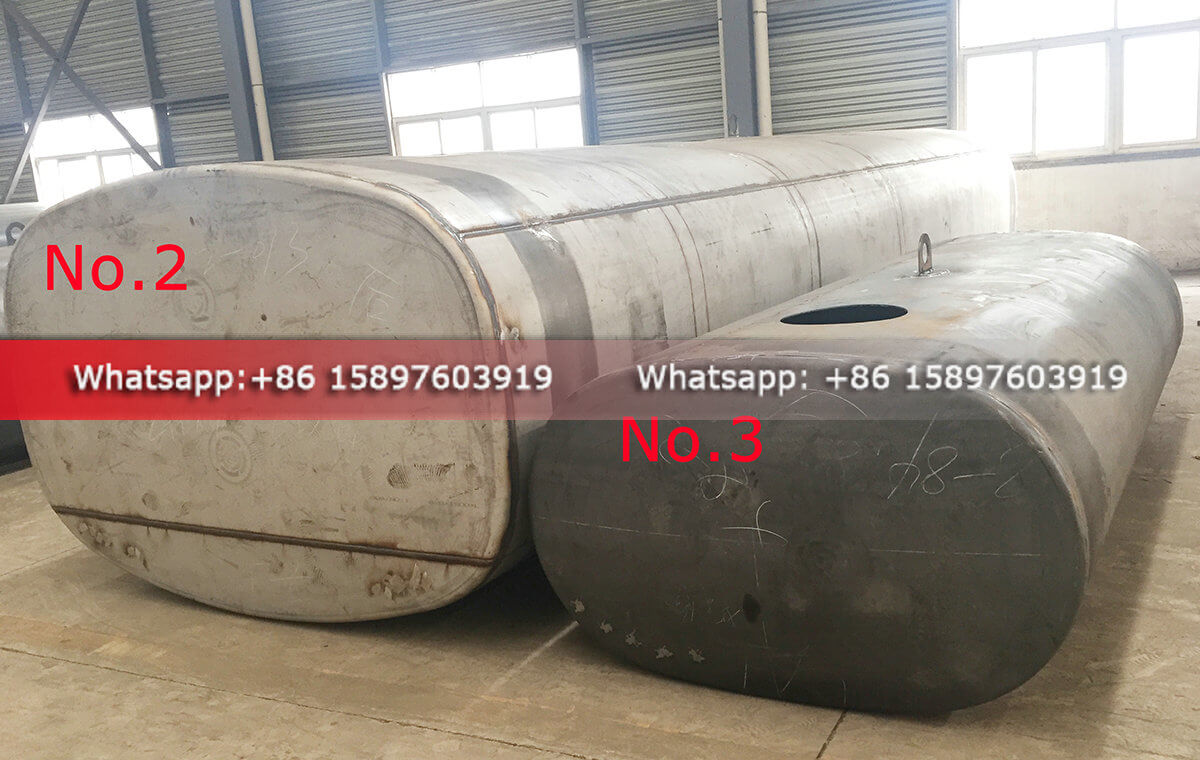

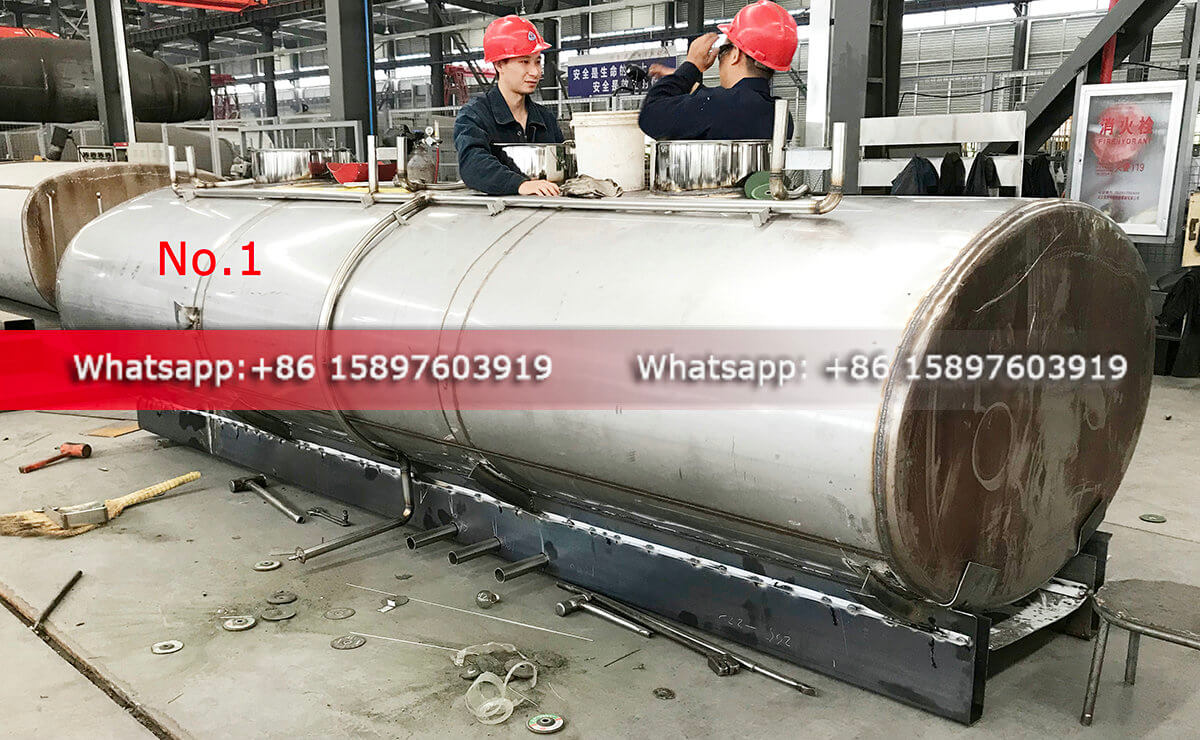

| Capacity of tank body | 12,000Litres |
| Material of tank body | Carbon steel 5mm thickness |
| Compartments | One compartment |
| Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. |
| Manhole | One manhole on the top of tank body |
| ladder | Steel mounted at front, bolted top and bottom |
| walkway | Along the top of the tank, sand paint |
| Cabinet | One at the side the tank covering the valve. |

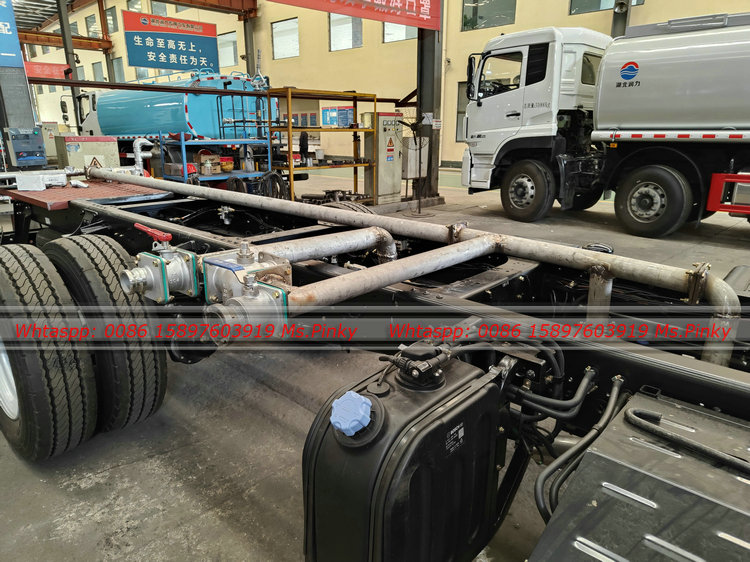

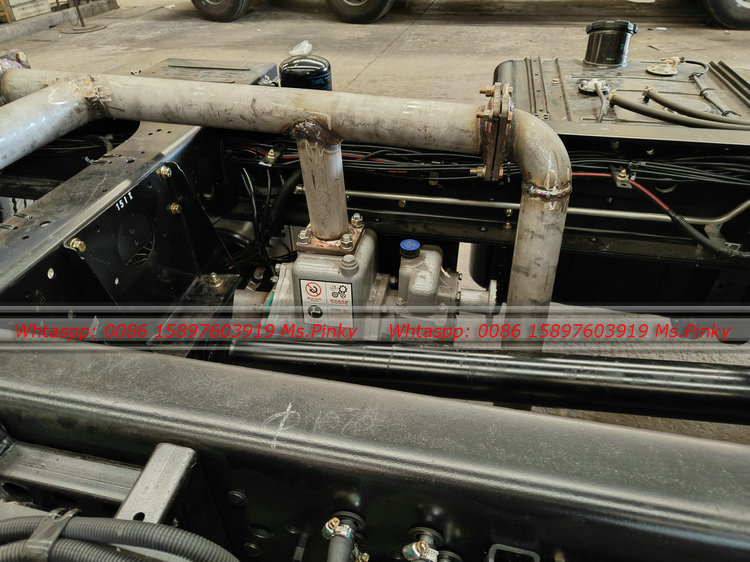

| With Stainless steel Water pump: | |

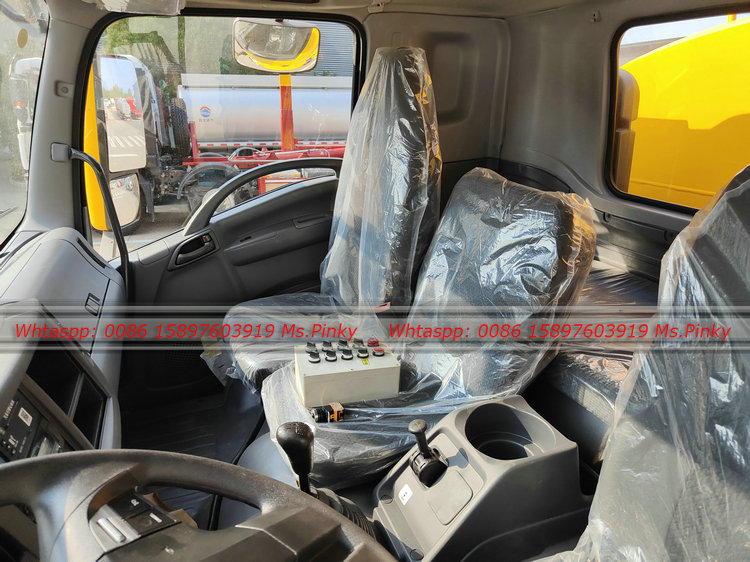

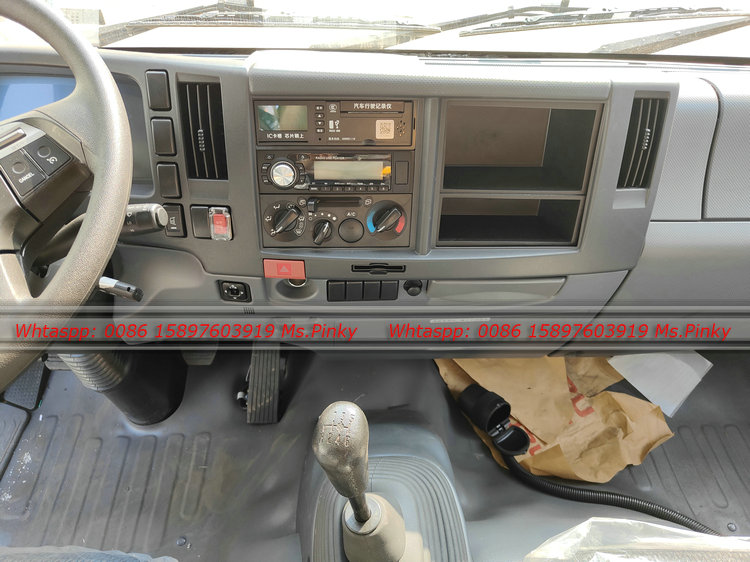

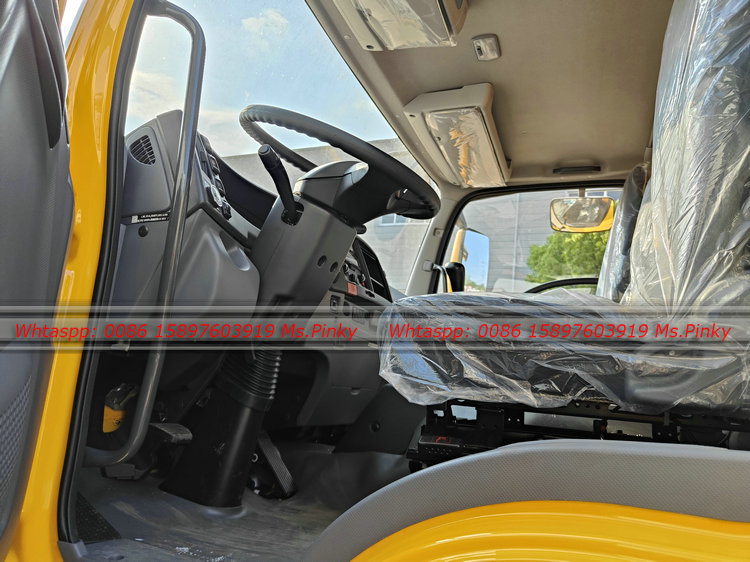

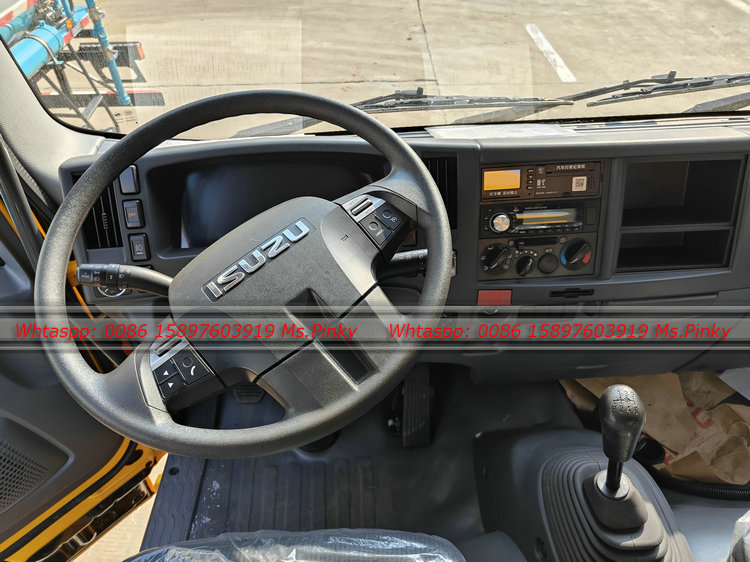

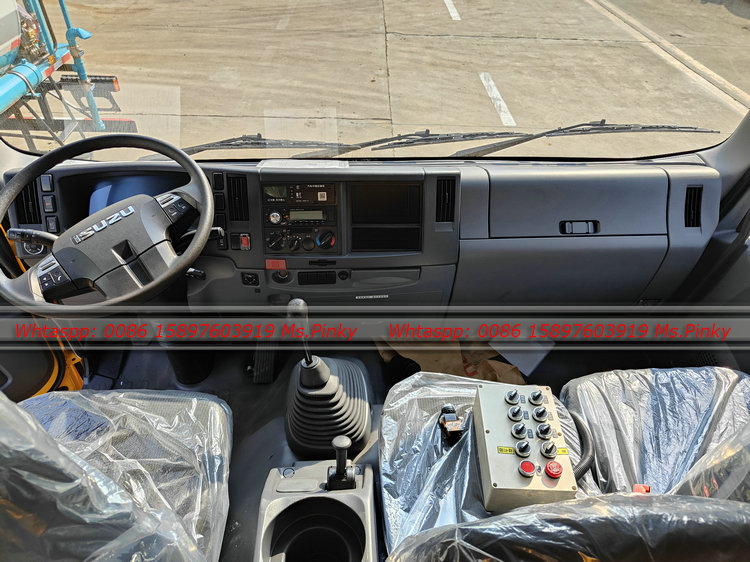

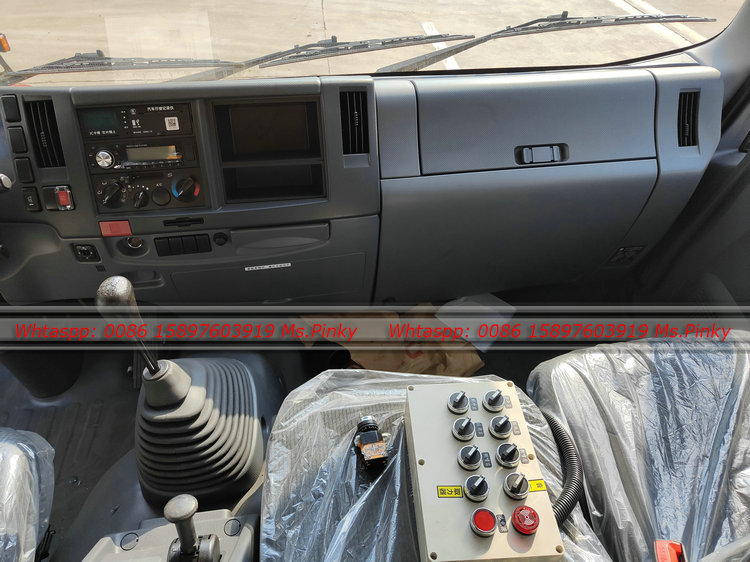

| Install the new Isuzu VC61 level driver's cab, with cold and warm air conditioning, steering assistance, central locking, electric doors and windows, multi-functional steering wheel, multi-functional LCD instrument panel, ABS, and air brake | |
