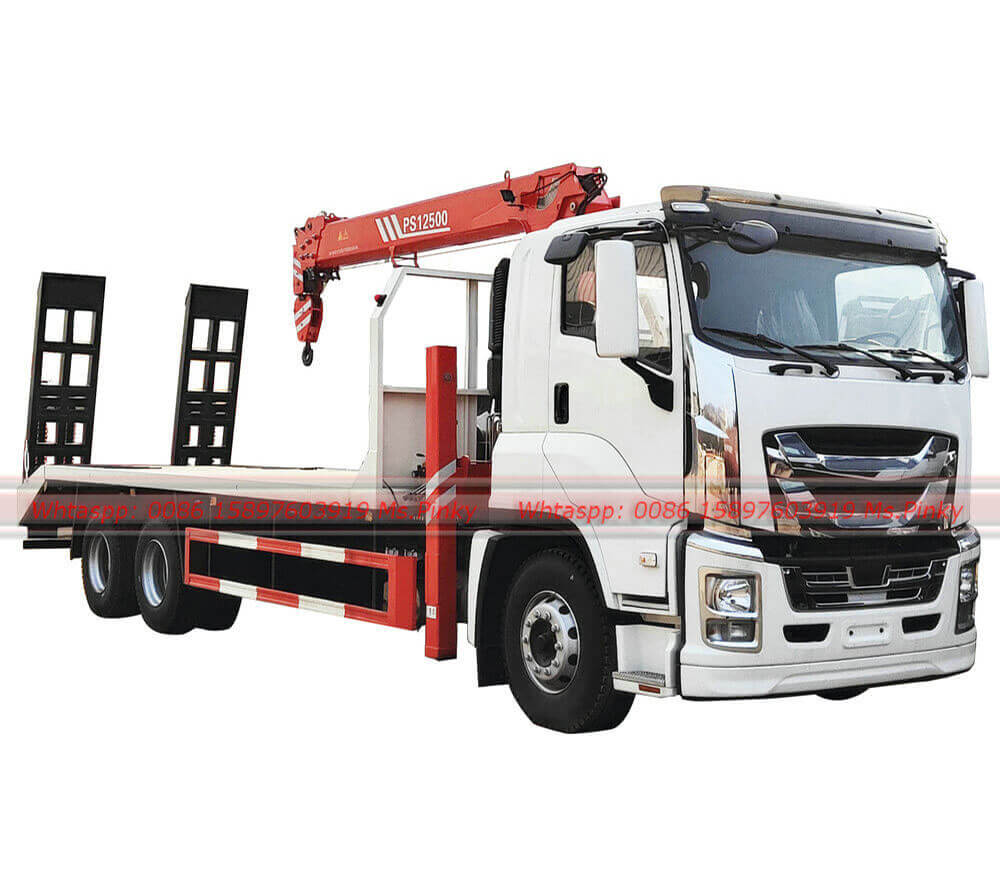

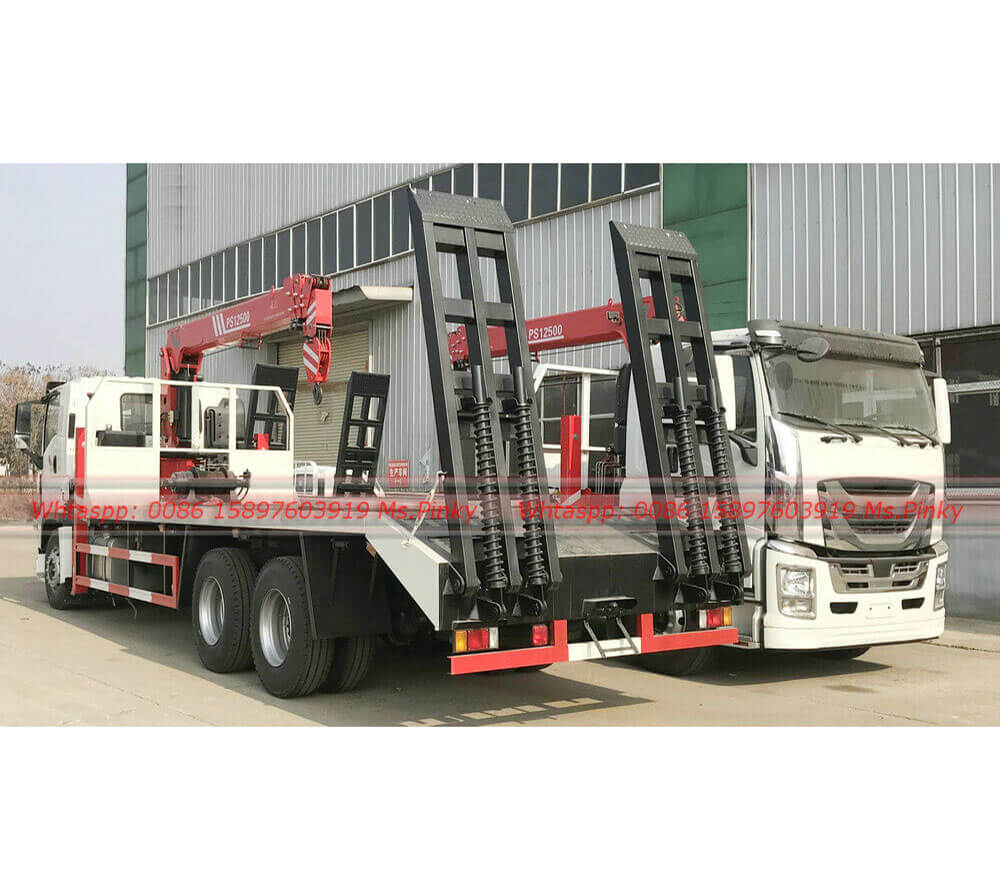

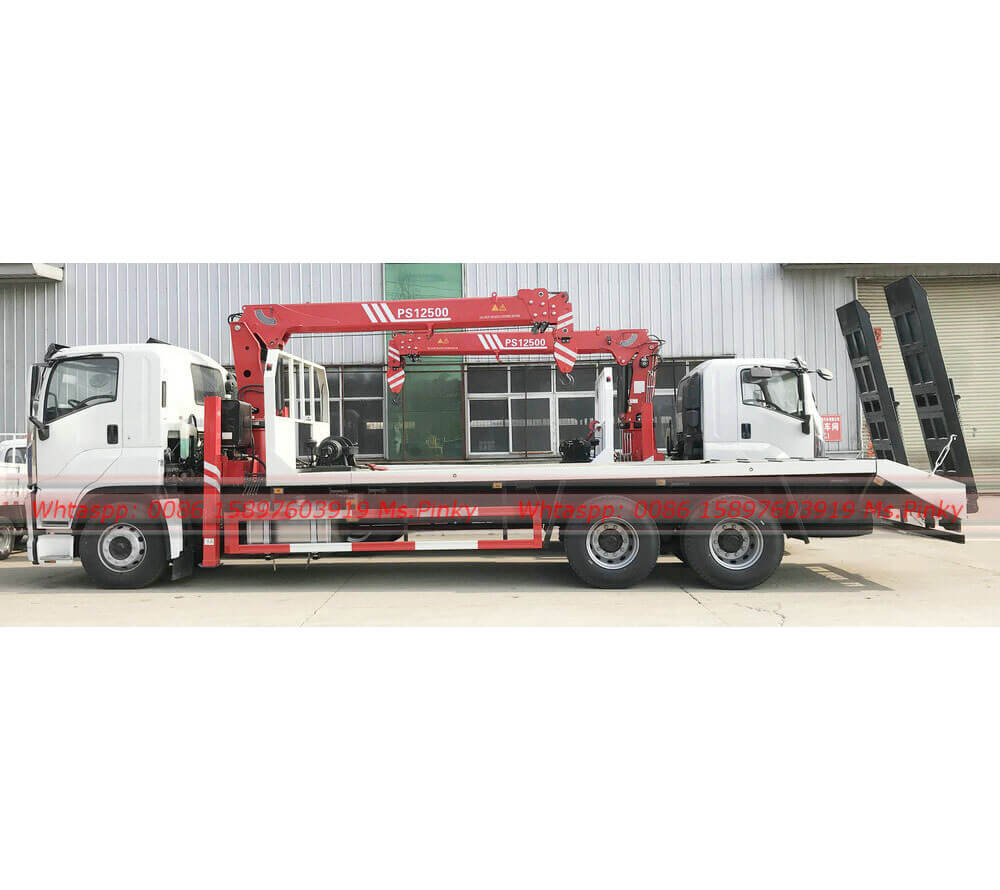

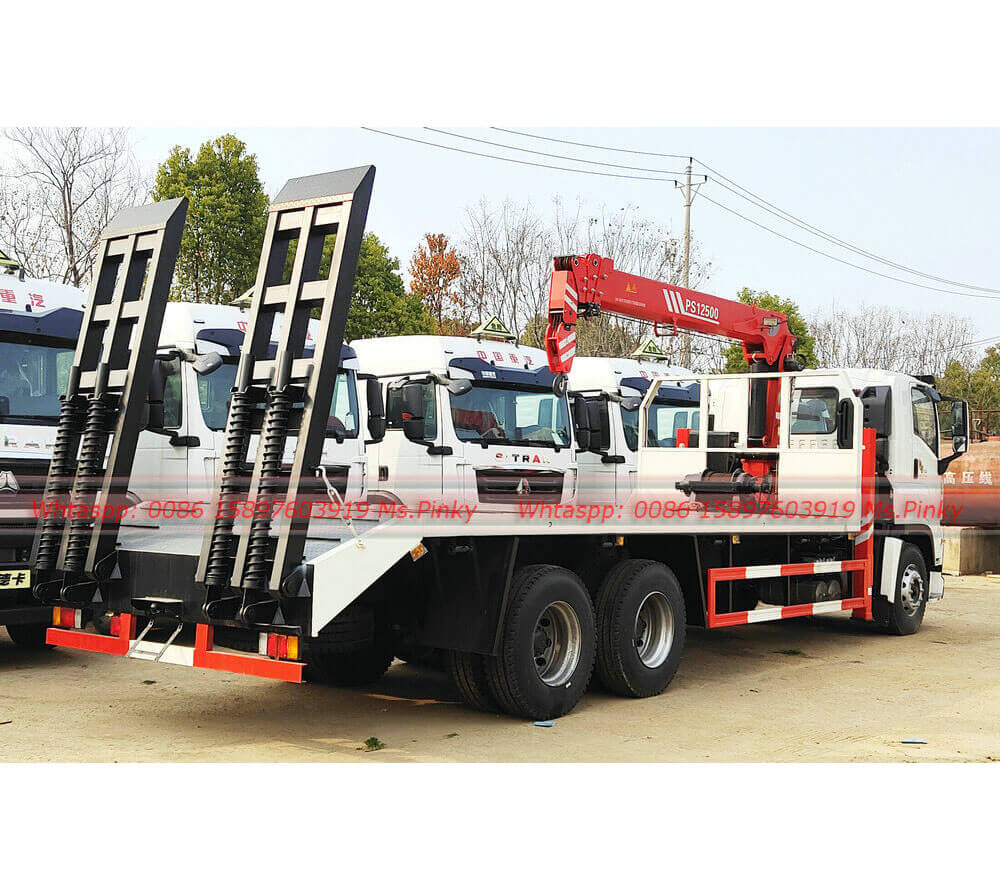

10Wheels ISUZU GIGA flatbed transport vehicle Withe Crane,Multifunctional flatbed transport vehicle With Rear ladder,
The ladder adopts a heavy-duty reinforced design Can transport around 15-20 tons of large construction machinery such as excavators,large equipment,and other construction machinery
it can also be used to lift large goods with a truck mounted crane
Item No :
460HP ISUZU GIGA Flatbed Transport Truck Mounted Crane for Excavators TransportationOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysOptional 3T to 12Tons Loading capacity Crane
Telescopic boom or Knuckled Boom For Choise
ISUZU 6x4 GIGA Chassis:
Isuzu 6WG1-TCG51 engine 460HP, Euro 5 ,
Fast 12th gear, multifunctional instrument panel, multifunctional steering wheel,
Standard 315/80R22.5,
Optional 1200R22.5 tires,
Air conditioning, directional assistance, central locking, electric windows, ABS,
Front axle 8 tons or 16 tons (combined), rear axle 26 tons with dual axles
460HP ISUZU GIGA Excavators Transport Vehicle With Sany Palfinger 5Tons Crane:
| Products Technical Specification | |
| Type | ISUZU 10Wheels GIGA Flatbed Transport Truck With Crane |
| Brand | ISUZU 6*4 |
| Cab | With A/C, on bed |
| Vehicle Description | |
| Overall dimensions（mm） | 9800*2500*3500 |
| Curb weight(vehicle) (kg) | 9800 |
| Max speed (Km/h) | 110 |
| Engine | |
| Mode | 6WG1-TCG51 |
| Type | Diesel, 6-cylinder in line with water cooling,turbo-charging |
| Max. power/rotated speed | 338(KW) / 460HP |
| Displacement(ML) | 16000 |
| Company of engine | ISUZU Motor |
| Emission level | Euro 5 |
| Chassis Description | |
| Wheel base | 4565+1370 |
| Front axle | Elliot I-beam type 8T |
| Rear axle | Driving axle, 26T*2 |
| Gear box | Fast 12 forwards |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tyres | 315/80R22.5 |
| Crane | |

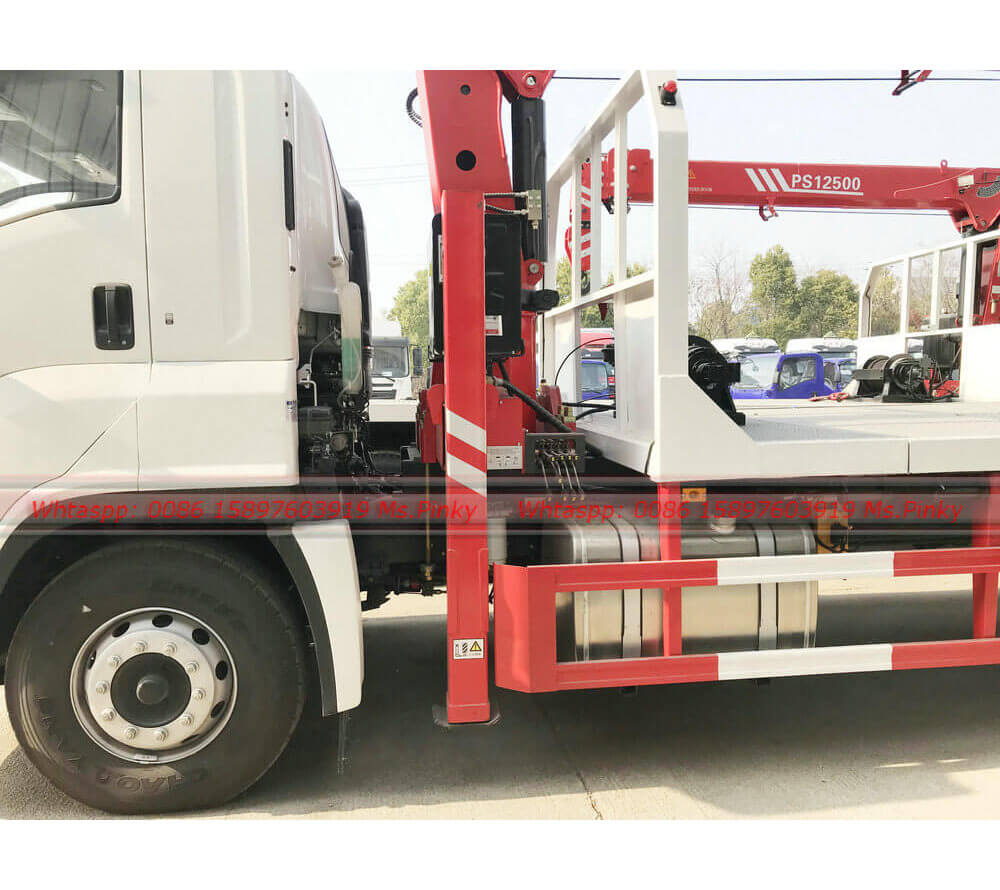

| Sany Palfinger Crane SPS12500 Telescopic Crane 3 section Max. Loading capacity: 5Tons Working radius: 9.3meter Lifting height: 10.8meter Operation : stand on the ground |
|
