Truck Description:

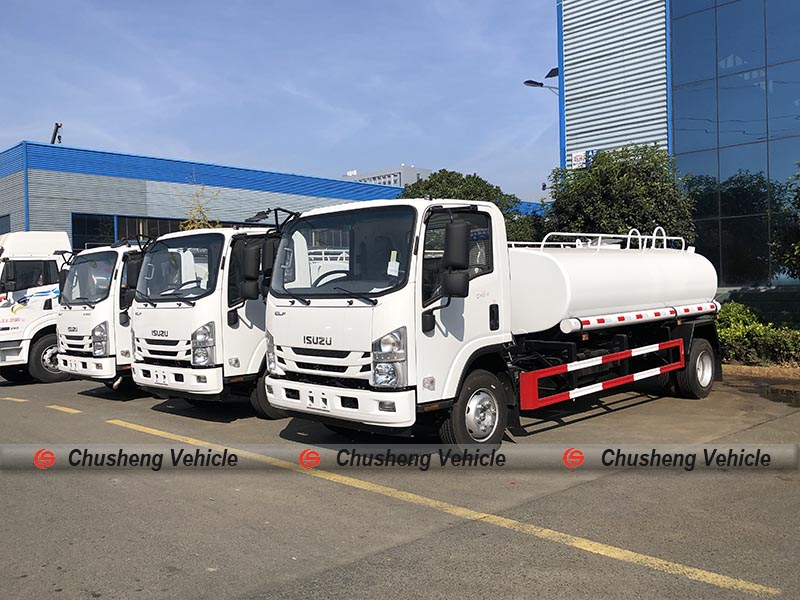

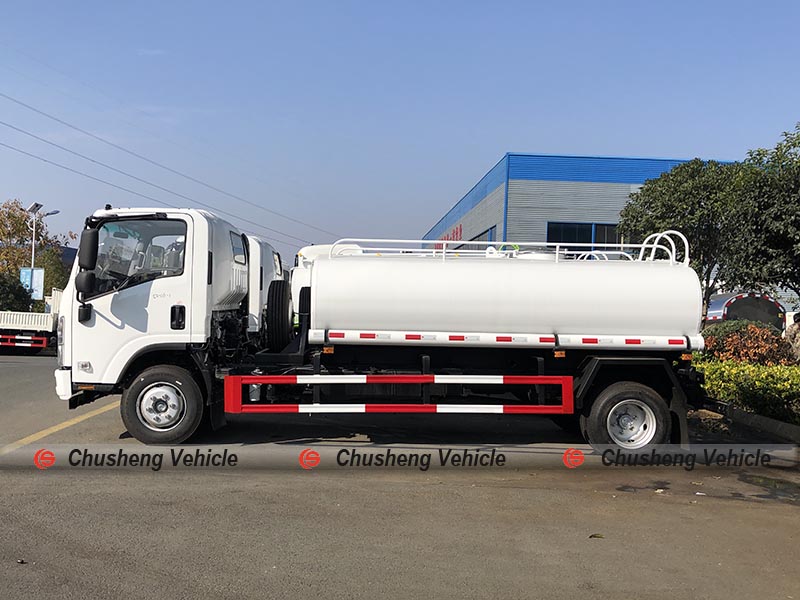

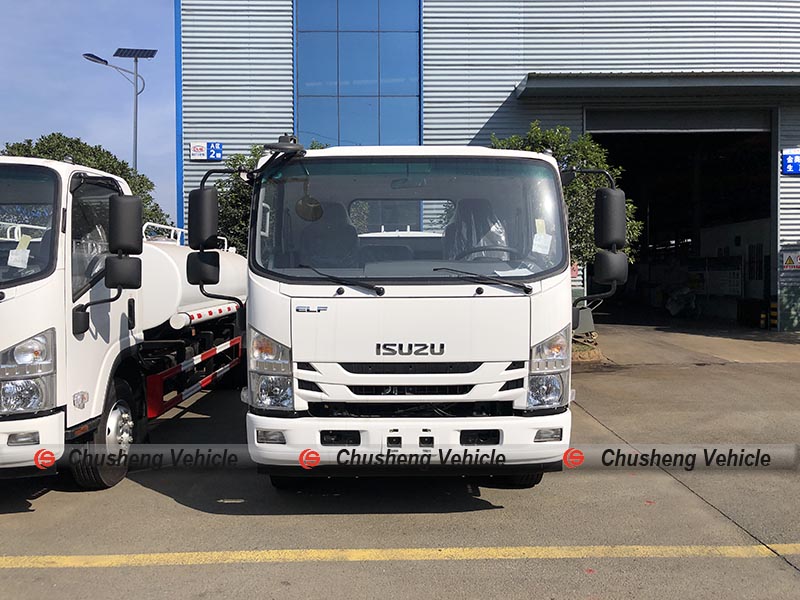

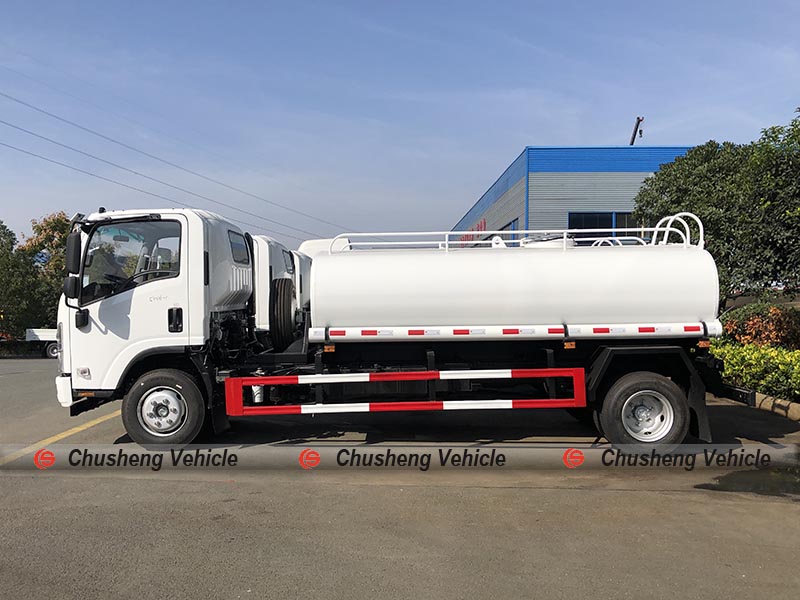

Water truck(Also called water sprinkler cart, water tank truck, water vehicle, water spraying truck, water tank vehicle, water flashing truck) is used for water transport, or water sprinkling, widely used in construction engineering, far irrigation, water sale business.
With non-toxic treatment inside tank or made of stainless steel, the water tank truck can be used for transporting drinking water, called as potable water truck, safe for human body.
Water truck with water pump, water sprayer, water cannon, front flush, rear sprinkle, side spray, to sprinkle and clean roads streets, re-dust, this kind truck called water spraying truck, water sprinkler truck.
Advantage:
1: ISUZU brand chassis, perfect
performance, top brand engine, super powerful, reliable performance.
2: High tank strength, The front and
rear sealing heads of the tank are pressed by hydraulic expansion machine.
3: Tank material
optional: carbon steel, stainless steel.
4: Water pump or
PTO driving water pump available.
5: Full range of
accessories optional: water sprayer, sprinkler, water cannon.
Technological Parameter:
Water
Truck (Left Hand Drive, 8,000 litres)
|
Vehicle
details
|
Vehicle
brand
|
CSC
|
GVW
|
12,000
kg
|
Kerb
Weight
|
7,805 kg
|
Overall
dimension
|
8350x2470x3050 mm
|
Cab
|
Cab
capacity
|
2
persons' seat with air conditioner
|
Chassis
|
Chassis
brand
|
ISUZU
|
Drive Type
|
4X2, Left hand drive , power-assisted steering
|
Fuel Type
|
Diesel
|
Engine
Make
|
ISUZU engine
|
Horse
power
|
190HP
(140kw)
|
Displacement
|
5900
cc
|
Type
of fuel
|
Diesel
|
Emission
standard
|
Euro V
|
Transmission
|
6-speed
forward, 1-reverse
|
Brake
|
Air
Brake
|
Wheelbase/
No. of axles
|
4175 mm / 2
|
Tyre
|
235/75R17.5(6+1)pcs
|
Max
speed
|
95
km/h
|
Paint
|
Automotive
metallic paint
|
Superstructure
details
|
Tank
Capacity
|
8,000
Liters
|
Tank
material
|
Food grade Stainless steel
|
Flow
Speed
|
1000
liters/min
|
Lift
|
90
m
|
Suction
Head
|
6
m
|
Hose
|
High
quality non-toxic PVC hose, anti-aging
|
All
standard accessories: manhole, ladder, inlet, discharge, reflective stickers…
|
|
|
|
|
