ISUZU Flatbed Road Wrecker

Road Wrecker Truck

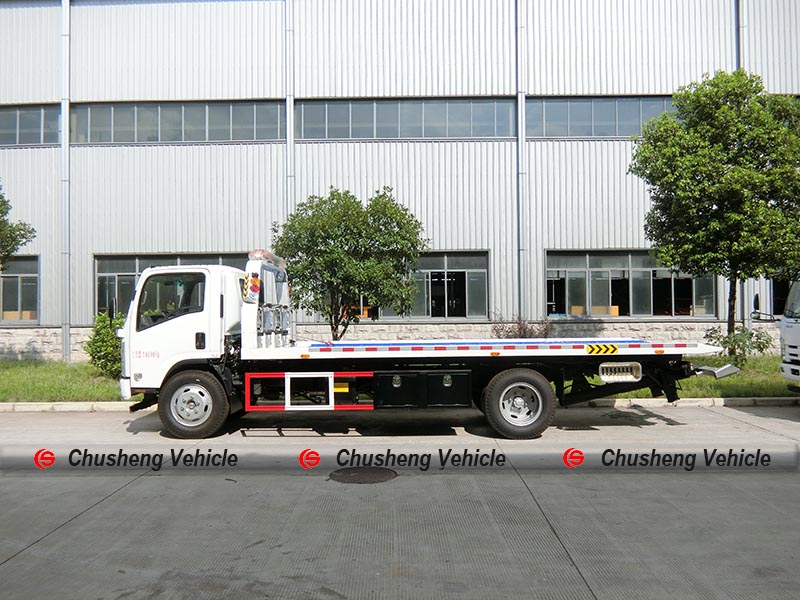

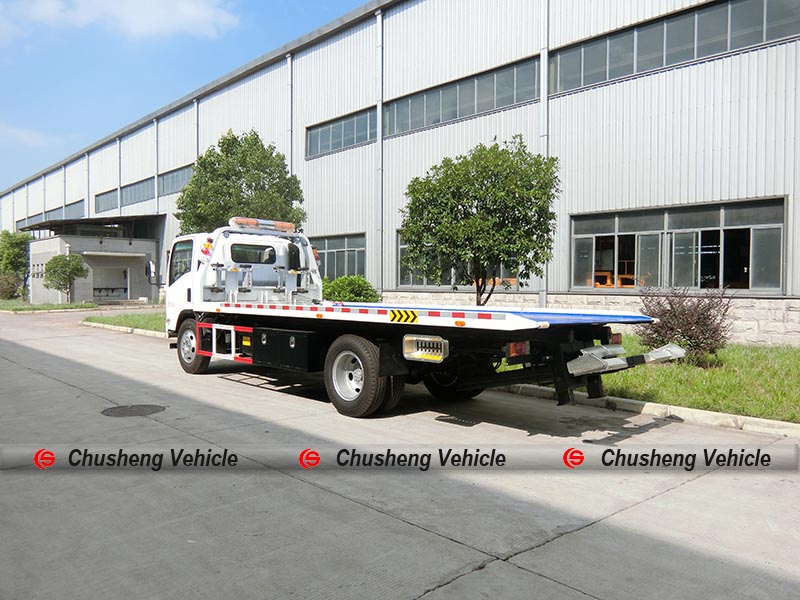

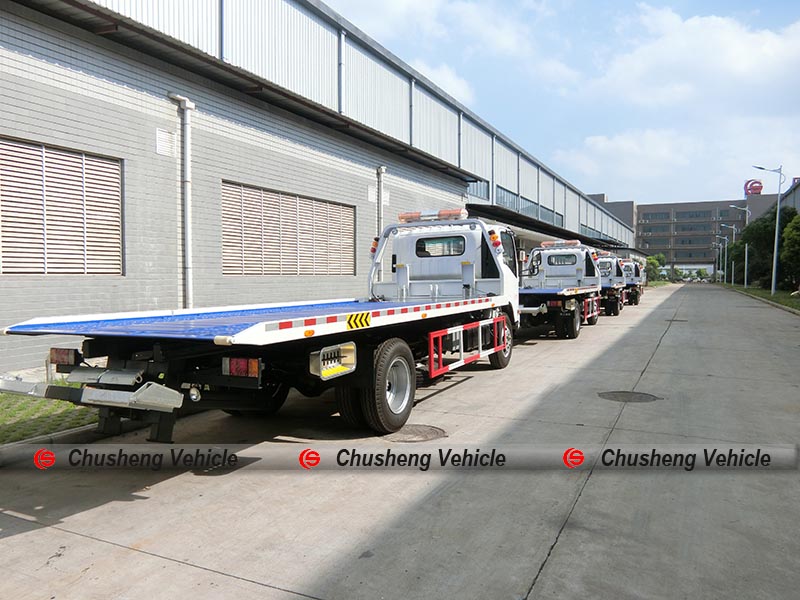

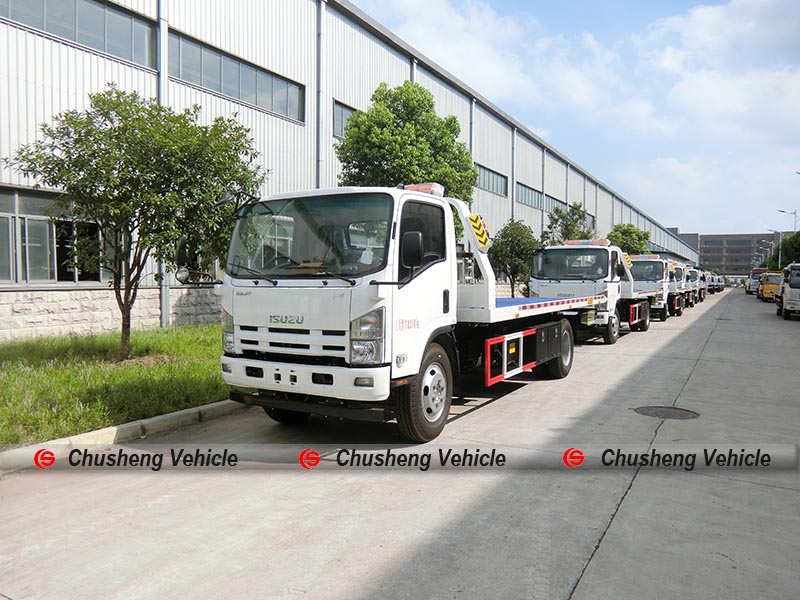

ISUZU Flatbed Road Wrecker

ISUZU Flat Bed Road Wrecker is special truck equipped with road rescue emquipment. It is used for transport motor vechicles or broke car. The crane can help load the broke truck.
  • product details
 Truck Description:

ISUZU Flat Bed Road Wrecker (also called: wrecker tow truck, mobile crane truck, knuckle boom crane, lorry loading crane, truck with cranewrecker truck, tow truck, accident towing truck,rescue truck, road emergency truck)is often used for tow the broke vechie and transportation to fix it. Generally, a crane component is mounted to a truck, so that you can load and unload easily. This is great for people who are looking to maximize their current fleet for a wider variety of jobs.


Advantages:

1:Road wrecker truck mounted 3.5tons crane.Easy for loading.

2:ISUZU engine,super powerful,reliable performance.

3:Best lift-to-weight ratio in the industry.

4:The wide outrigger span ensures the best stability in all mounting situation.

5: The standard package includes 2 working lights to ensure safe operation, day and night.

6: Optionally available is an over-load protection system to ensure safe crane operation.


Technology Parameters:

ISUZU ELF Flat Bed Road Wrecker

Vehicle details

GVW

8,495 kg

Kerb Weight

6,600 kg

Overall dimension

7000x2350x3300 (mmxmmxmm)

Cab

Cab capacity

2 persons' seat with air condition

Chassis

Chassis brand

ISUZU

Drive Type

4X2, left hand drive or right hand drive

Fuel Type

Diesel

Engine Make

ISUZU engine

Horse power

190HP (141kw)

Displacement

5193cc

Air conditioner

Equipped

Type of fuel

Diesel

Emission standard

Euro V

Transmission

6-speed forward, 1-reverse

Brake

Air Brake

No. of axles

2

Tyre

237/75R17.5/(6+1)pcs

Max speed

90 km/h

Paint

Automotive metallic paint

Superstructure details

Towing Type

Slide bed with wheel - lift

Platform dimension

5550x2220 mm

Flatbed Payload

4,000kg

Towing capacity

4,000kg

Hydraulic pump, hydraulic motor, hydraulic oil tank.hydraulic cylinders, multi-way valve, balance valve.auxiliary wheels, chain hook, lift fork, straps etc.
RemarkAbove specification is just for reference, please send us your detail request.
