Truck Description:
7000 Liters ISUZU Sewer Suction Truck(also sewage
suction truck, sewer truck, sewage suction truck, vacuum suction truck,
vacuum sewage suction truck, sewage suction tanker truck, sewage tanker truck,
sewage drainage truck, sewage sucking truck, sewage pump truck, etc.) mainly
used for sucking septic material and sludge from drains, transportation and
discharge of sewage from septic tank and sludge from drains.
Details:
7000 Liters ISUZU Sewer Suction Truck:mild steel, coren steel or stainless steel construction. Capacities vary from 2 m3 to 28m3 dependent on client requirements and chassis availabilities.
Full bore rear door to allow for complete cleaning of the sludge tank internal.
Option for hydraulic tipping of tank for better discharge and cleaning. High air flow vacuum pump driven by truck PTO for vacuum suction and pressure discharge of sludge.
Technology Parameter:
7000 Liters ISUZU Sewer Suction Truck (LHD or RHD)
|
Vehicle details
|
Vehicle brand
|
CSC
|
GVW
|
12000 kg
|
Kerb Weight
|
6000 kg
|
Overall dimension
|
7500x2200x2500 mm
|
Chassis
|
Chassis brand
|
ISUZU
|
Engine brand
|
ISUZU engine
|
Air conditioner
|
Equipped
|
Type of fuel
|
Diesel
|
Emission standard
|
Euro III
|
Horse power
|
190HP / 140kw
|
Displacement
|
5193cc
|
Wheelbase/ No. of axles
|
4175mm / 2
|
Tyre
|
8.25R16 / (6+1)pcs
|
Max speed
|
90 km/h
|
Superstructure details
|
Capacity
|
7000 Liters
|
Tank material
|
Mild steel
|
High efficiency, vacuum rate up to 93%,
quick suction and discharge.
|
Vacuum Pump: Imported brand JUROP,SIHI, BPP rotary vane type and liquid ring type optional.
|
Remark
|
Above specification is just for reference, please
send us your detail request.
|
Advantage:
1: Vacuum Pump: Imported brand SIHI, BPP,
JUROP rotary vane type and liquid ring type optional.
2: High efficiency, vacuum rate up to 93%,
quick suction and discharge.
3: Rear door can be hydraulic opened for
complete discharge of solid stuff.
4: Tank material optional: carbon steel,
stainless steel.
5: Special chassis, reasonable structure
and excellent performance.

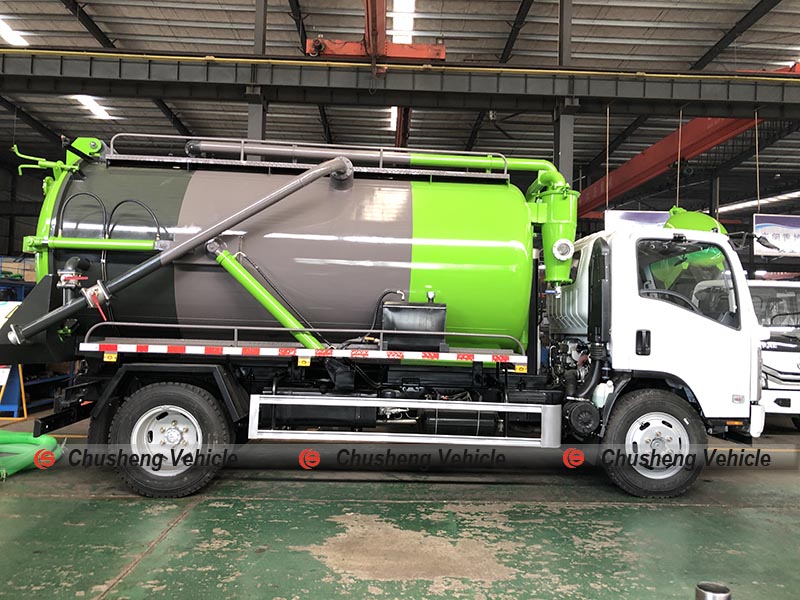

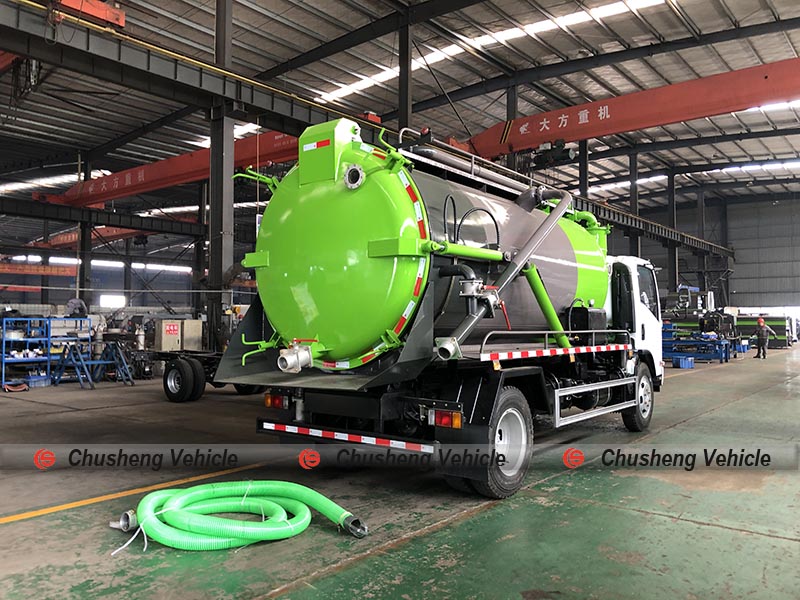

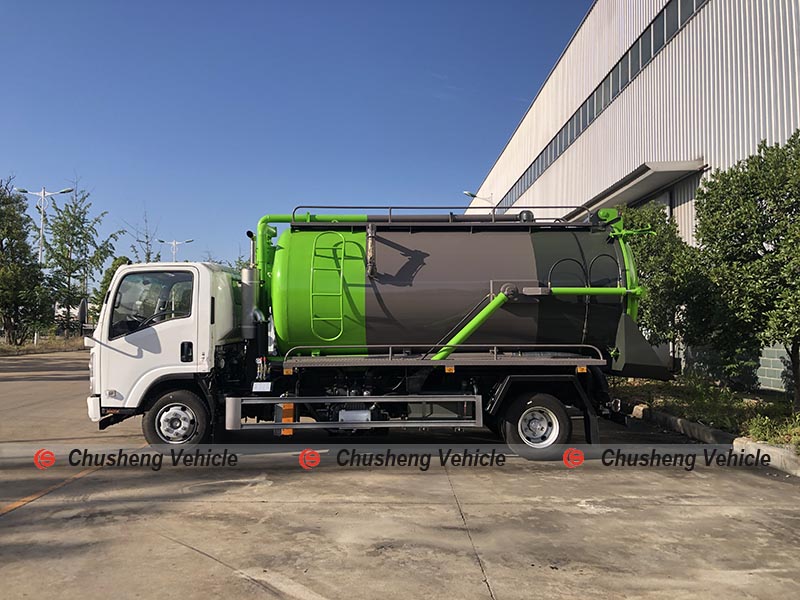

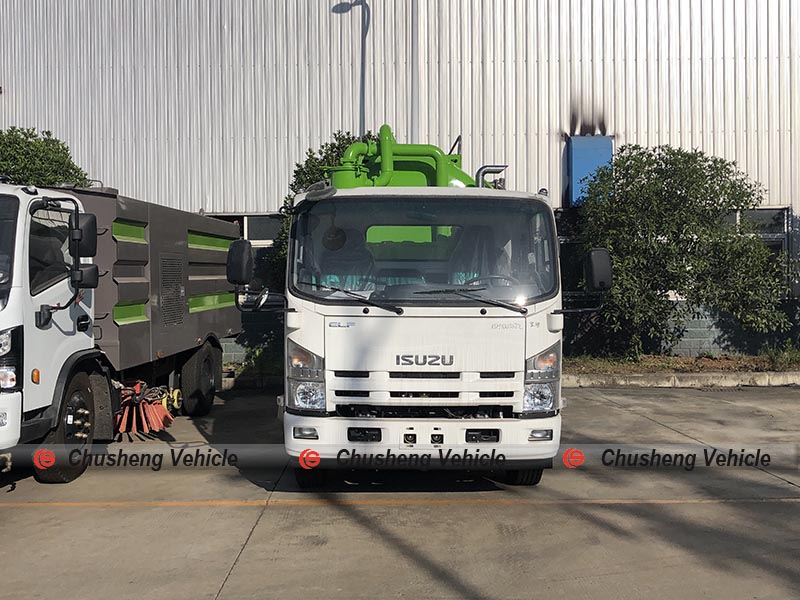

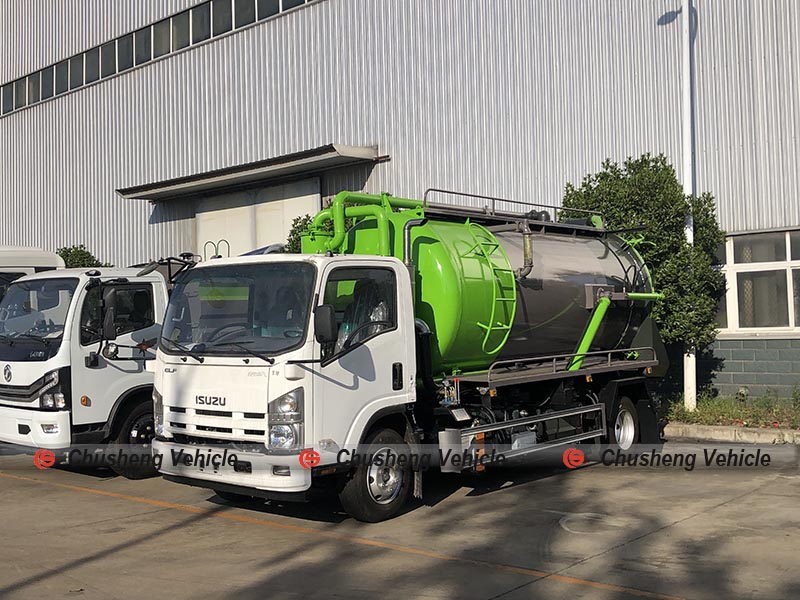

Pictures:
