Truck Description:
CSC garbage compactor truck (also known as garbage
truck, compressed garbage truck, refuse collection truck, waste collection
vehicle, dirt-wagon, dust cart trash truck, dustcart, and bin lorry) is a
special purpose vehicle used to collect and transport all kinds of garbage in
municipal sanitation department.
Advantage:
1. The garbage box is made of high strength wear
resistant steel plate, prolonging box service life.
2. Top China brand cylinders and multi-way valve, high
hydraulic pressure and high compression ratio up to 2.5:1, ensuring better
loading capacity.
3. Intelligent integrated control panel, easier to
operate and greater efficiency; the multi-way valve control always available
just in case.
4. Two sewage tanks system: one sewage tank under
loading container, the other sewage tank under garbage box. All sewage goes
into the tanks to avoid dripping during compacting and transportation.
5. Compression box capacity from 3-20 CBM.
6. Various types of garbage bin lifting device
available.
Technical Specification:
Garbage compactor truck rear lift device can be
customized to suit different type garbage bin.

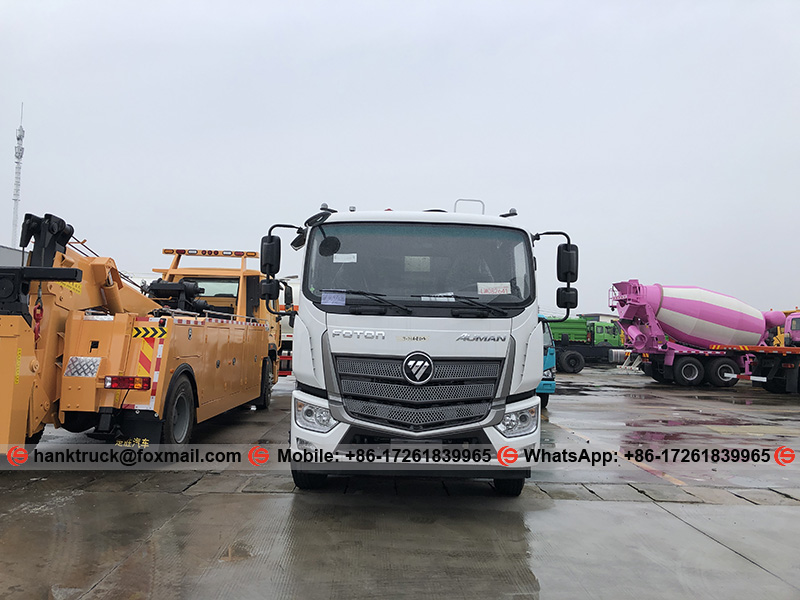

LHD and RHD FOTON 12 CBM High Tensile Steel Garbage Compression Truck
|
Vehicle
Parameters
|
General
|
Vehicle Brand
|
CS
|
Chassis Brand
|
FOTON
|
Overall Dimension (mm)
|
9250x2500x3300 mm
|
GVW (kg)
|
16000 kg
|
Curb/Net Weight (kg)
|
10500 kg
|
Chassis
Parameters
|
Cab
|
Seat Capacity
|
3 seats and sleeper
|
A/C
|
Yes
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
Yuchai Turbo Engine
|
Power (HP/KW)
|
LDH: 240 HP
RHD: 220 HP
|
177 KW
162 KW
|
Displacement (ml)
|
7225 ml
|
Emission Standard
|
Euro 2
|
Chassis
|
Drive Type
|
4x2, Left/Right hand drive
|
Gear Box
|
FAST gear box. 8 forward speed & 2 reverse.
|
Wheelbase (mm)
|
4800 mm
|
Tire Specification
|
11R22.5
|
Tire No. (pcs)
|
6+1 pcs
|
Max Speed (km/h)
|
95 km/h
|
Garbage
Compactor Structure Parameters
|
Box Capacity
|
12 CBM
|
Box Material
|
High strength wear resistant steel plate
|
Multi-way Valve
|
Top China brand or Italy imported brand
|
Hydraulic Cylinder
|
Top China brand
|

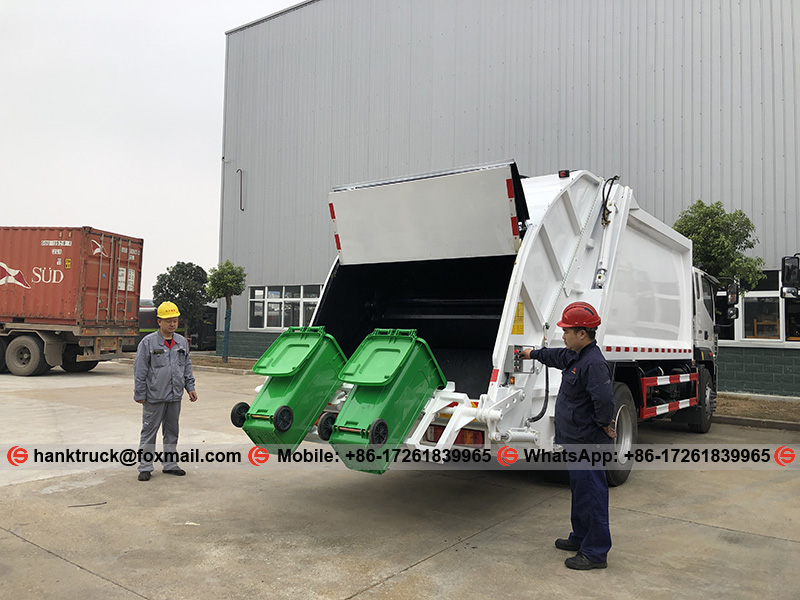

Lifting Device
|
Multiple garbage bin lifting devices optional to
suit different type garbage bin, please see as below demonstration.
|
Sewage Tank
|
Two tanks. Equipped to avoid secondary pollution
|
Optional
|
Imported multi-way valve; Siemens PLC; HZL hydraulic
cylinder; Rear cover; Dustpan loading container
|
