Crude Oil Tank Truck 21000 Litres Dongfeng
CNCSC fuel tank truck is with attractive appearance and durable nature,which is applies to transport different type of media,such as oil ,gasoline ,diesel.
Truck Description:
CSC fuel tank truck (also known as fuel tanker truck, fuel dispensing truck, diesel truck, petrol truck, gasoline truck, crude oil truck, kerosene tank truck, oil truck, oil tank lorry, refuel tank truck, fuel transport truck, fuel bowser, aluminum tank truck, helicopter refuel truck, jet fuel truck etc.) is used to transport fuel, diesel, oil, gasoline, petrol, kerosene, crude oil etc.
Advantage:
1. Tank material: high strength carbon steel, stainless steel and aluminum alloy.
2. Dished ends and tank inner baffles to reduce liquid surging during transportation.
3. Euro type manhole with built-in breath valve to keep tank inner and outer pressure balance.
4. Bottom valve will self-shut in case of truck roll-over to keep fuel from leaking.

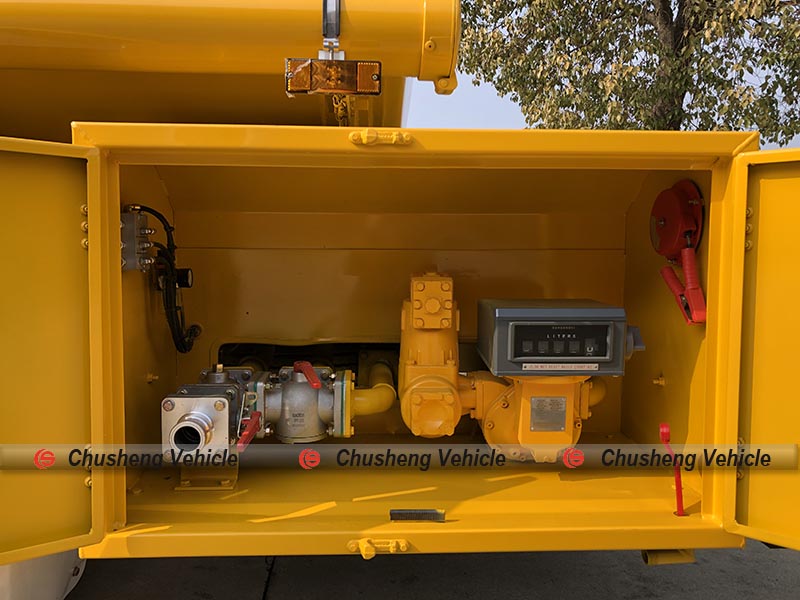

5. Other parts: fuel pump, fuel dispenser, flow meter and hose reel.
6. Tank can be divided into several compartments to load different type of fuel.
Technical Specification:
RHD ISUZU 7000 Liters Aluminum Alloy Fuel Delivery Truck
Vehicle Parameters
General
Vehicle Brand
Chusheng
Chassis Brand
ISUZU
Overall Dimension (mm)
7000x2250x2600 mm
Gross Vehicle Weight (kg)
10,550 kg
Curb/Net Weight (kg)
4,100 kg
Chassis Parameters
Cab
Seat Capacity
3 seats
A/C
Yes
Engine
Fuel Type
Diesel
Engine Brand
ISUZU
Power (HP/KW)
190 HP
139 KW
Displacement (ml)
5193 ml
Emission Standard
Euro 6
Chassis
Drive Type
4x2, Right hand drive
Gear Box
ISUZU MLD brand manual gear box, 6 forward speed
& 1 reverse, no overhaul within 500,000 km.
Wheelbase (mm)
3815 mm
Tire Specification
235/75R17.5
Tire No. (pcs)
6+1 pcs
Max Speed (km/h)
95 km/h
Fuel Tanker Structure Parameters
Tank Capacity (L)
7,000 Liters
Tank Material
Aluminum alloy
Fuel Pump
Top Chinese brand, highly efficient, pump
flow 500-1000 Liter/Min
Flow Meter
Flow meter equipped to show discharge
amount
Hose Reel
Hose reel equipped for refueling to
other trucks or machines
Fuel Hose
High quality, wire strengthened fuel
hose, with cooper wire for anti-static purpose
Accessories
Euro-manhole, handrail, anti-slip
walkway, ladder, anti-static belt, fire extinguisher, inlet, outlet,
reflective stickers
