Truck Description:
CSC heavy duty road wrecker truck (also known as wrecker truck, tow truck, accident tow truck, road/high-way rescue truck, vehicle transport truck, bus transport truck, road emergency truck, wrecker crane truck, rescue crane truck, heavy duty wrecker truck etc.) is widely used in roads/off-roads where there is an accident and vehicles aren’t suitable to drive again, aiming to restore road traffic and capable of rescuing and towing a wide range of heavy vehicles.
Advantage:
1. Heavy duty and special strengthened rear tow device.
2. Italy imported multi-way valve, imported balance valve and hydraulic lock.
3. Top China brand heavy duty winch and hydraulic cylinders.
4. Counter weight installed behind cabin for better operation stability.
5. Spacious tool boxes for better storage ability.
Technical Specification:

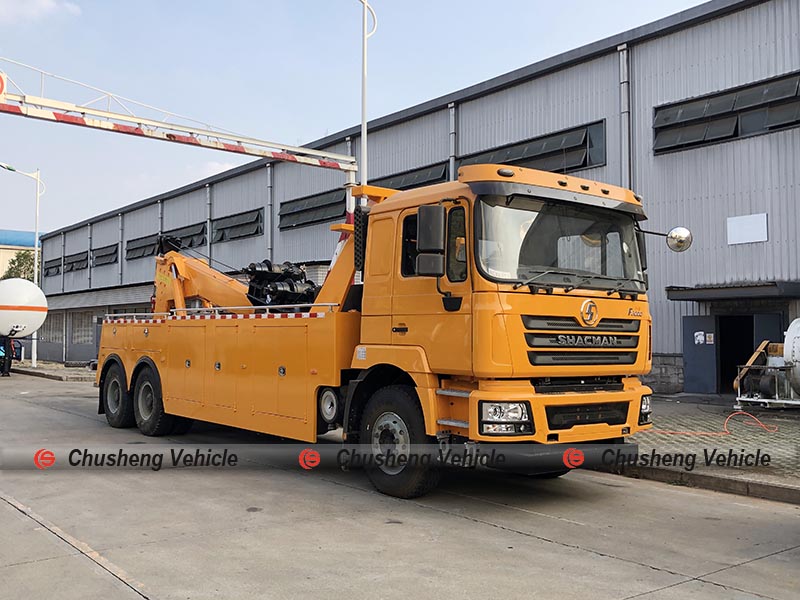

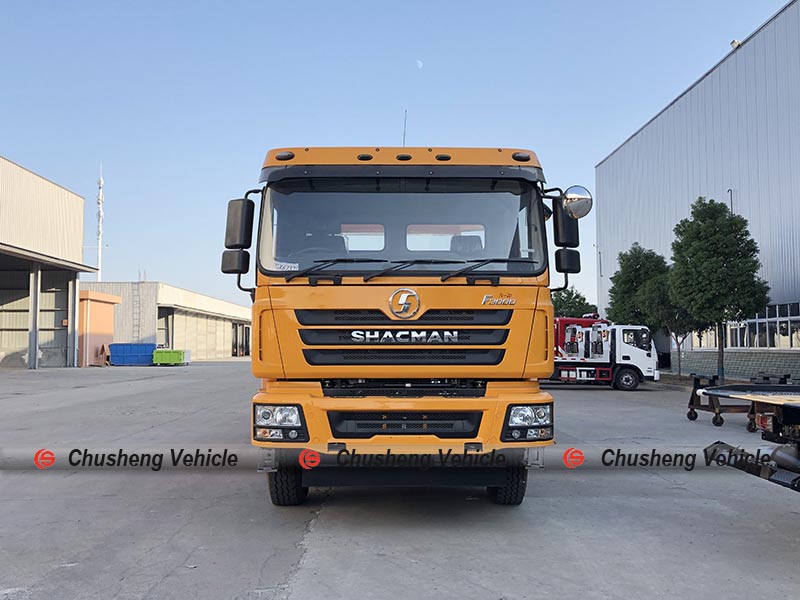

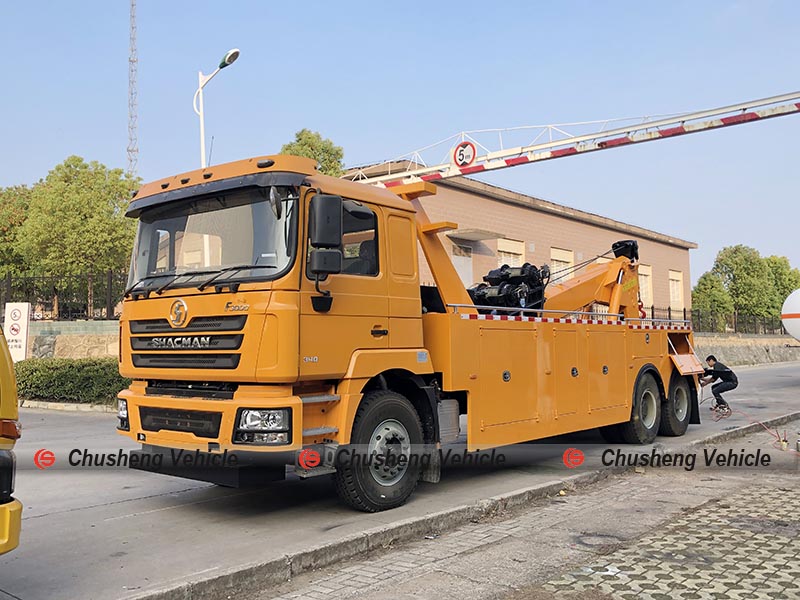

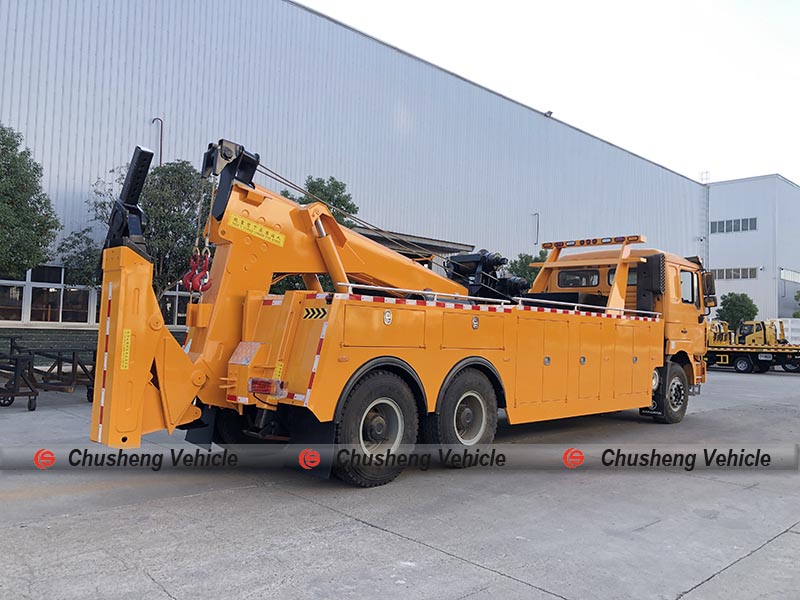

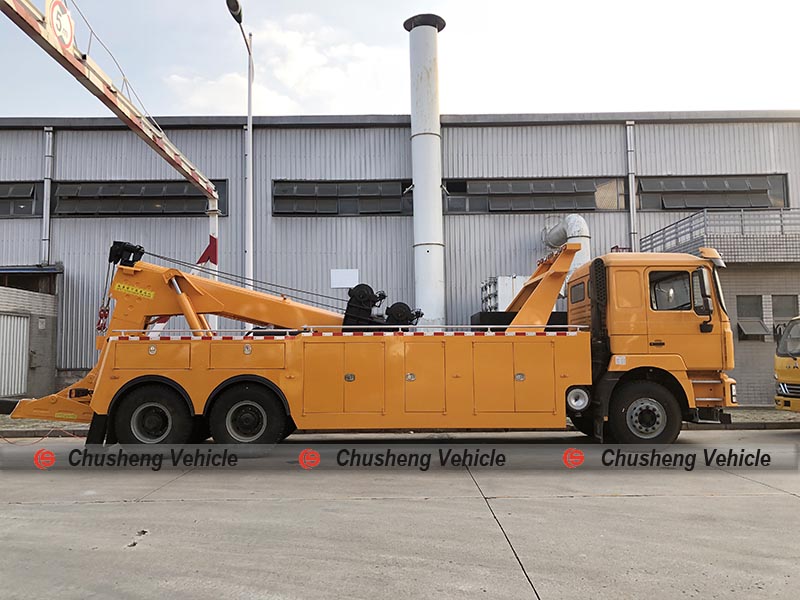

Right Hand Drive SHACMAN F3000 16 Tons Tow and Crane Wrecker Truck
Vehicle
Parameters
General
Vehicle Brand
Chusheng
Chassis Brand
SHACMAN - F3000
Overall Dimension (mm)
Approx.: 10700x2550x3450 mm
Gross Vehicle Weight (kg)
34000 kg
Curb/Net Weight (kg)
22000 kg
Chassis
Parameters
Cab
Seat Capacity
2 seats and sleeper
A/C
Yes
Engine
Fuel Type
Diesel
Engine Brand
WEICHAI Turbo Engine
Power (HP/KW)
340 HP
250 KW
Displacement (ml)
9726 ml
Emission Standard
Euro 2
Chassis
Drive Type
6x4, Right hand drive
Gear Box
FAST brand manual gear box, 10 forward speed & 2 reverse
Wheelbase (mm)
5775+1400 mm
Tire Specification
315/80R22.5; 12.00R20
Tire No. (pcs)
10+1 pcs
Max Speed (km/h)
90 km/h
Heavy
Duty Road Wrecker Structure Parameters
Winch Capacity (kg)
2*10 Ton
Tow Capacity (kg)
16 / 18 / 20 Ton
Lift Capacity (kg)
20 Ton
Other Parts
Remote control, hydraulic pump, hydraulic motor, hydraulic oil tank,
HZL hydraulic cylinders, Italy imported multi-way valve, imported balance
valve and hydraulic lock, auxiliary brake hose, chain hook, lift fork, hand
washing box etc.
Optional
Traction rod;
