1.ISUZU FVR BRAND CHASSIS With air condition,
2.power steering.
3.Color: White body and white cabin
4.Drive type: LHD or RHD
5. Engine : ISUZU 6HK1-TCL 240HP 6Cylinder
6. 10.00R20 tyres
7.Dump Cargo size:4800*2300*(550-1200)mm
8. Loading capacity: 10Tons 15Tons

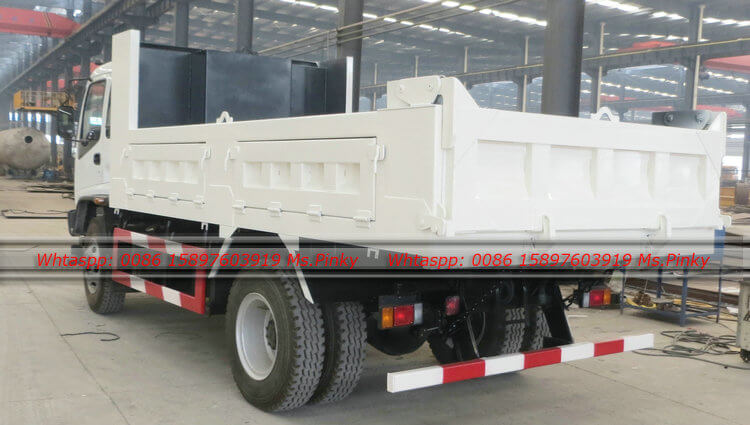

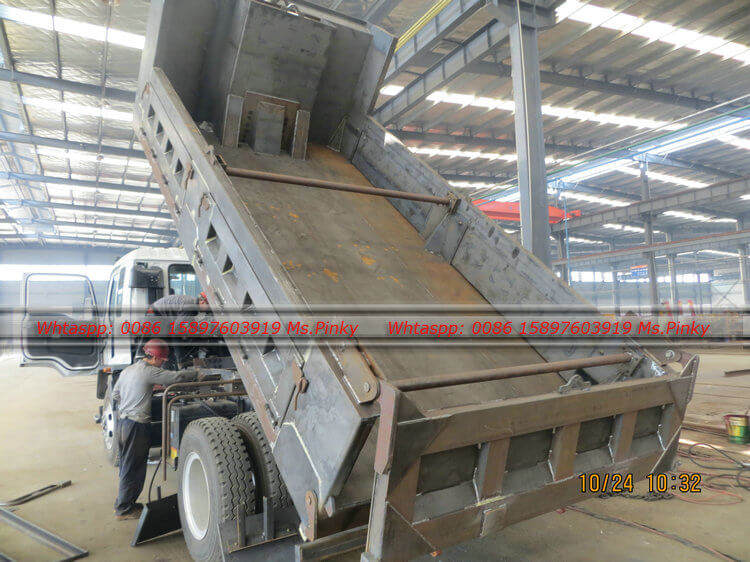

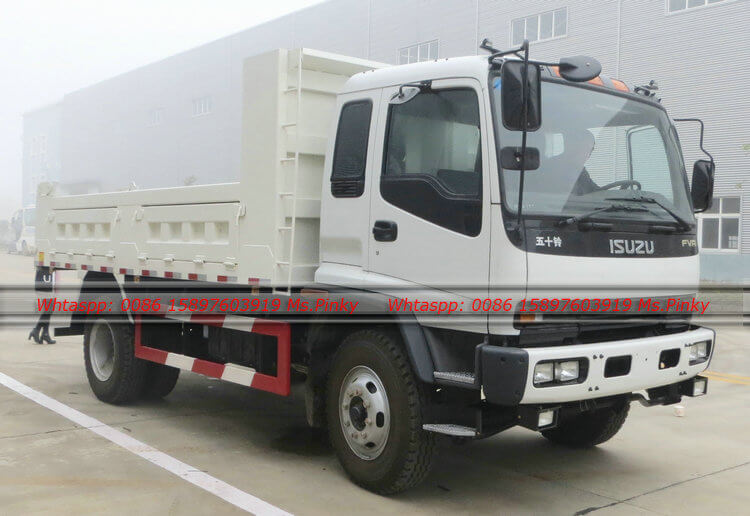

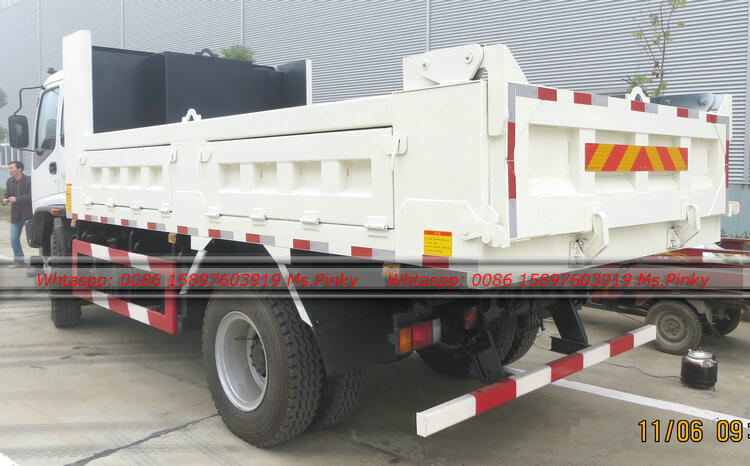

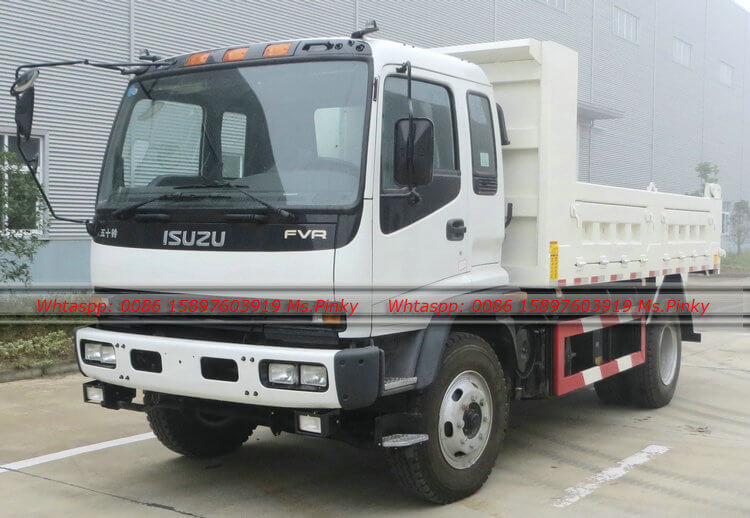

9. ISUZU FVR Dump Truck , factory directly sales
10.more than 15 years of experience in exporting specialized vehicles
Item No :
15T 6Wheels ISUZU FVR Dump TruckOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 days
| ISUZU FVR Dump Truck | ||
| Chassis Model /Manufacturer | FVR QL1160 | |

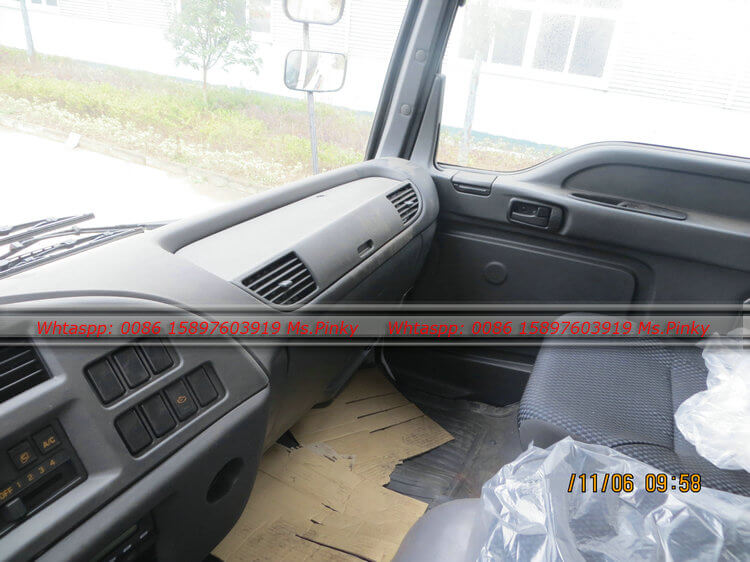

| cab | With one sleeper | |
| Overall Dimension | 7300*2500*2860mm | |
| Cargo size | 4800*2330*550mm | |
| Total Mass | 33025Kg | |
| Rated Payload | 15000Kg | |
| Kerb Weight | 6800Kg | |
| front overhang/rear overhang | 1335/1700 | |
| Engine | Model/Rated Power | 6HK1-TCL 178KW/240HP |
| 6 cylinder | ||
| Displacement | 7790CC | |
| Emission Standard | Euro 5 | |
| manufacturer | QingLing ISUZU Motors | |
| Type & Size of Tyre | 10.00R20 | |
| driving type | 4×2 | |
| Wheel Base | 3900mm | |
| Max Speed | 90 Km/h | |
| Cargo size | 4800*2300*550mm | |

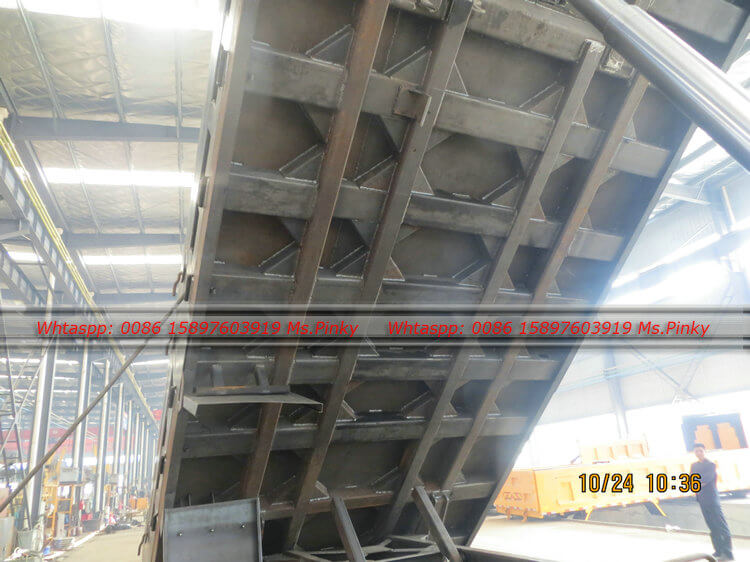

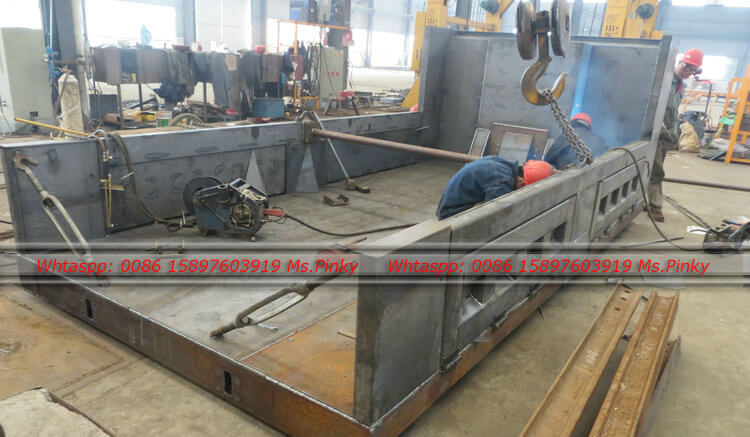

| Bottom thickness : 10mm | ||
| Side body thickness:8mm | ||
| 160# Front cylinder | ||

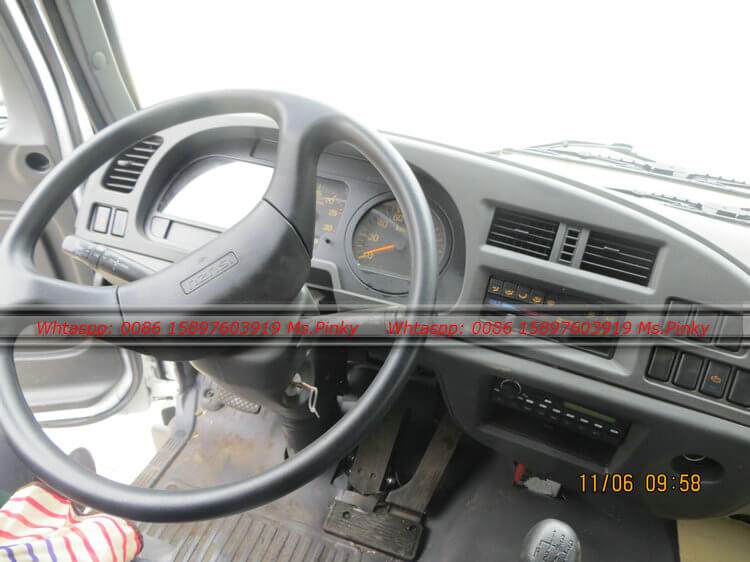

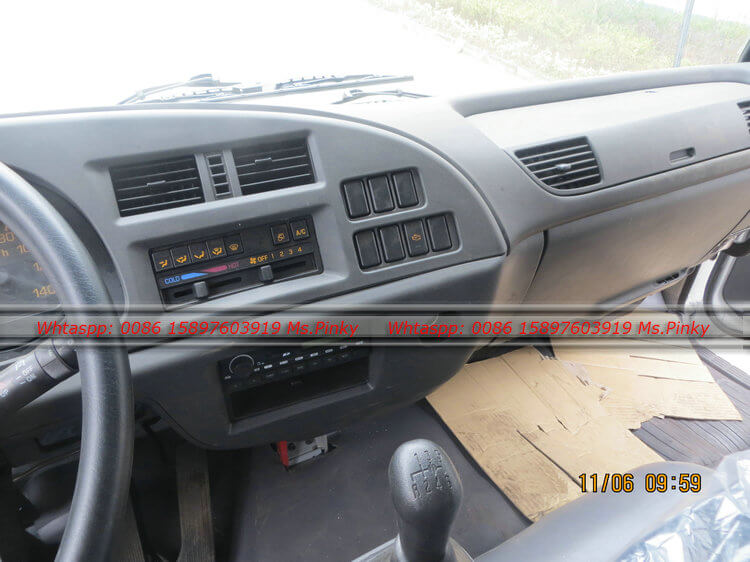

| ISUZU MLD 6 forwards + 1 reverse, with air condition, power steering, Electrical glass, USB | ||
| Chassis Steel: Q345R (16MnR) | ||
| Cabin Steel: Cold-Rolled Carbon Steel Q235 | ||
| Frame Breadth : 258*85*10+4mm | ||
| Double Triple – deck sheet: 10+4mm | ||
| System Brake: air Brake | ||
| Front Axle( Loading capacity): 6.3T | ||
| Rear Axle( Loading Capacity): 13T | ||
| Battery: 12V*2 115Ah*2 | ||
