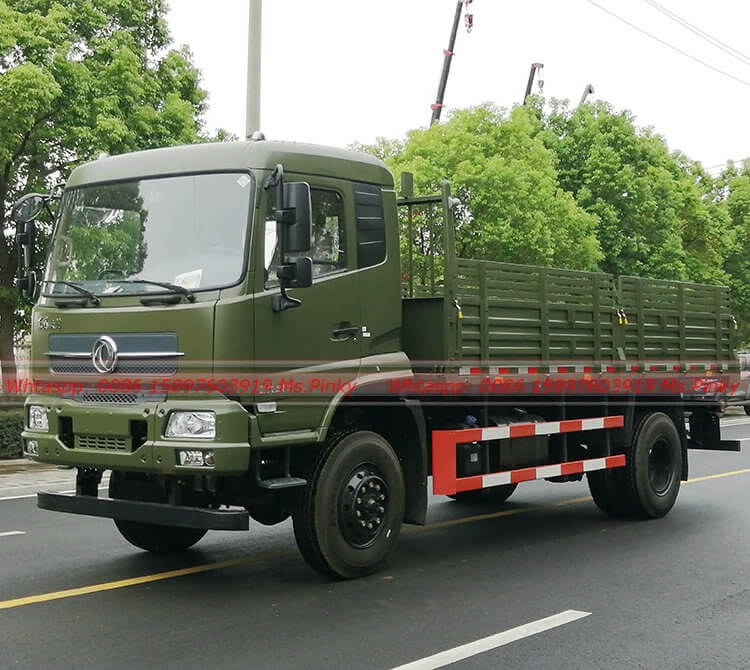

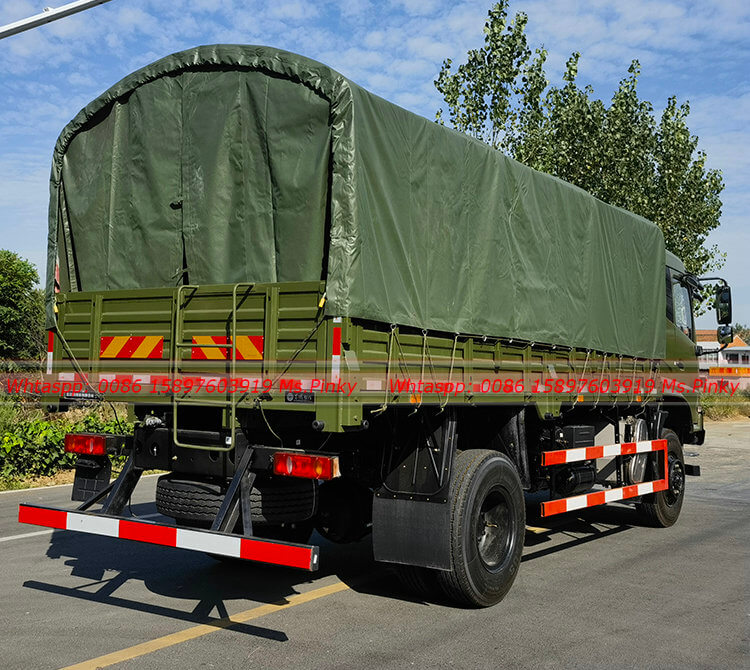

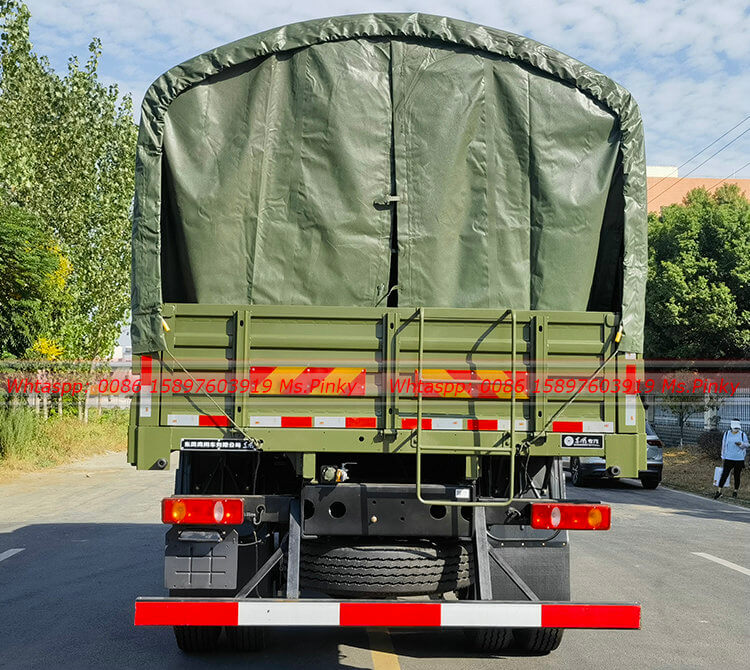

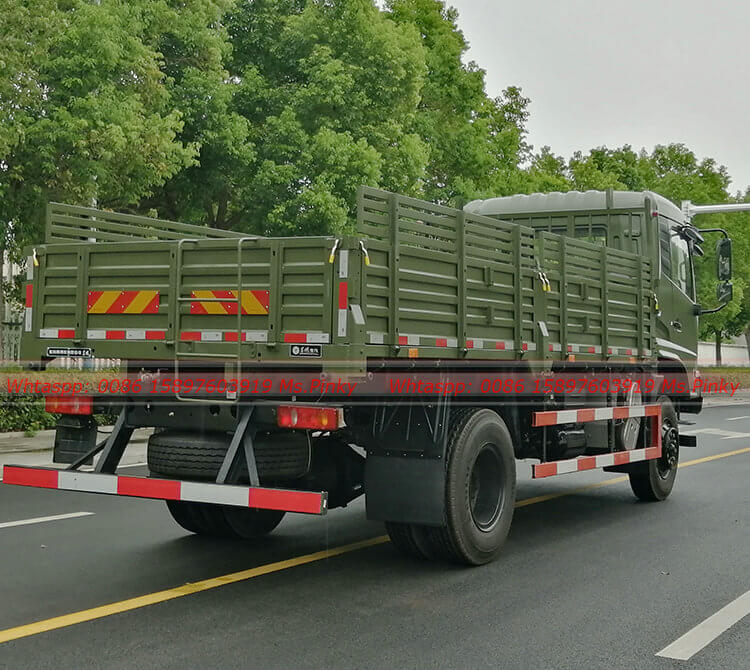

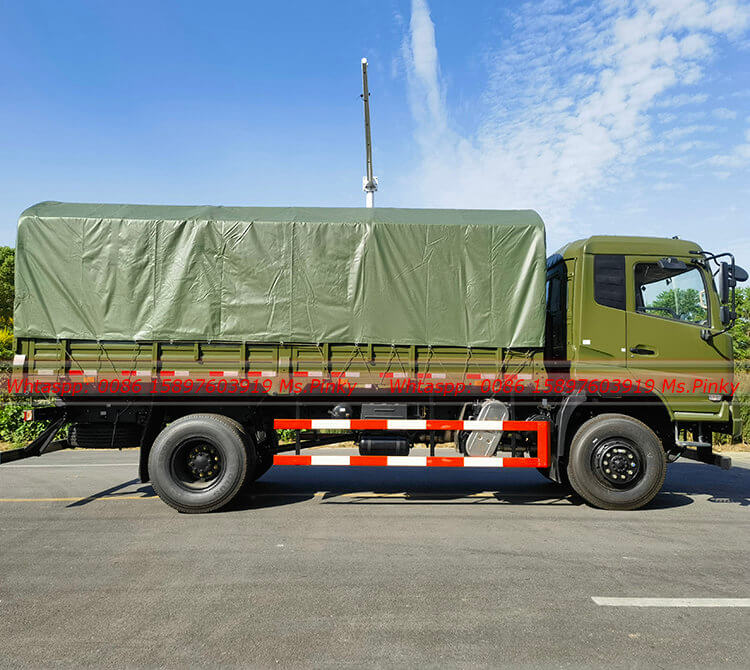

4x4 All Wheel Drive Truck Utility/Cargo Heavy (6 to 10 Ton)
Item No :
6 to 10 Ton Troop Carrier Truck for off-road TerrainOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysTroop Carrier Vehicle, 4*4 all wheel drive, suit for mountain desert road
Troop Carrier Vehicle, Factory direct sales, customizable design, production, and delivery according to user requirements, with discounted prices
| driving type | 4*4 |
| net weight(kgs) | 8955 |
| Dimension of Vehicle | 7800*2500*2840mm |
| Wheelbase | 4500mm |
| Min Distance from the ground | 270mm |
| Motor | |
| Mode | B210 |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging |
| Max. power/rotated speed | 155(KW) /2500(rpm) |
| Max. torque | 700（N.m） /1400～1600(rpm) |
| Cylinder bore×Stroke(mm) | 102×120 |
| Displacement(ML) | 5900 |
| Company of engine | Dongfeng Cummins |
| Compression ratio | 17.3:1 |
| Emission level | Euro 3 EGR |
| Transmission | 8JS85E |
| Clutch | Ø350mm single dry, pneumatic booster, hydraulic contral |
| Front axle | 4.5T |
| Rear axle | 10T |
| Tyre | 12.5R20 6+1 |
| Max. braking distance | 8m |
| Climbing gradient | 40% |
| Capacity of fuel tanker | Main fuel tanker:200L |
| 20 in the rear with foldable seats | |
Welcome to visit our factory In Suizhou City Hubei Province.
