Truck Description:

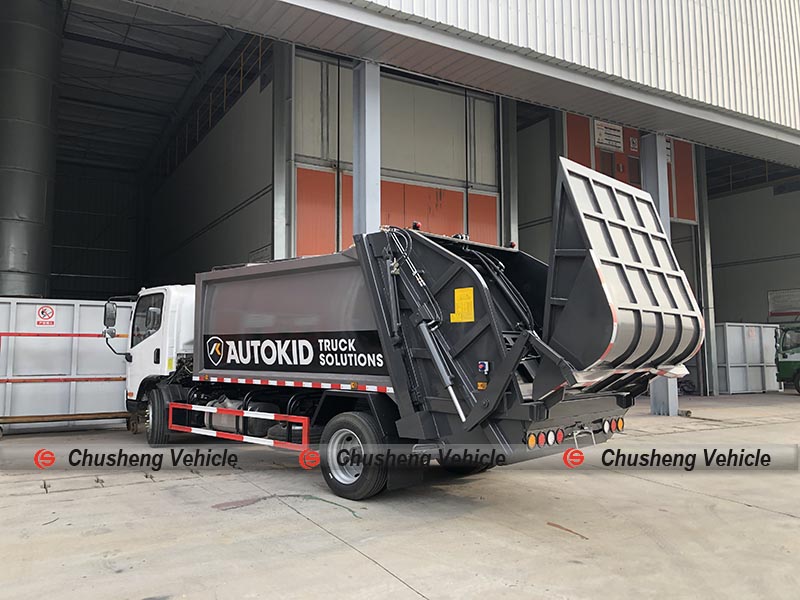

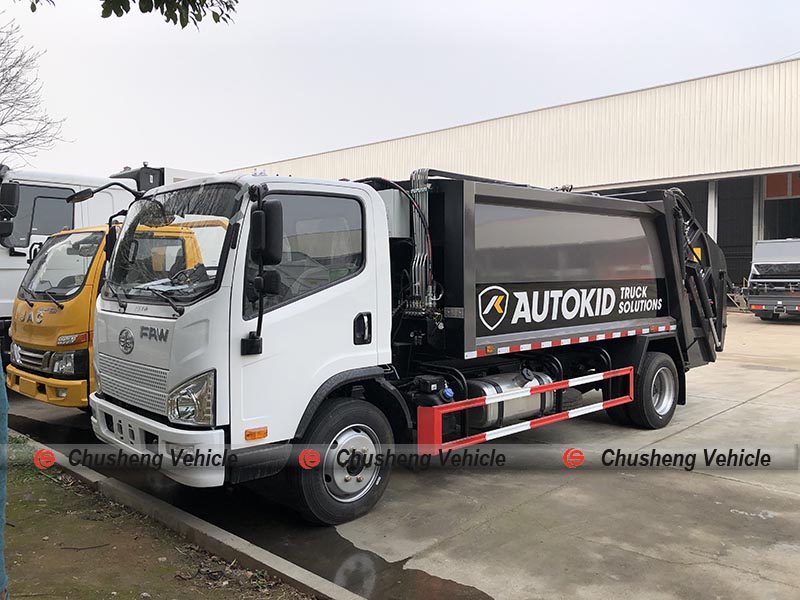

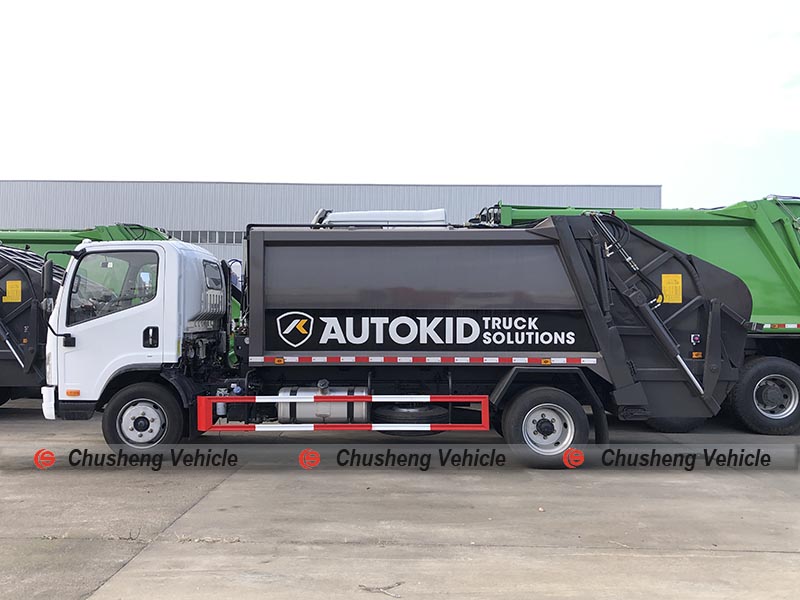

Garbage Collectors Truck can compress large quantities of waste, an essential activity to be done before the waste is treated in order to be recycled.
There are different types of Garbage Collectors Truck and they stand out for the final shape and for the result they will give to the waste, once it has been compacted.
Advantages:

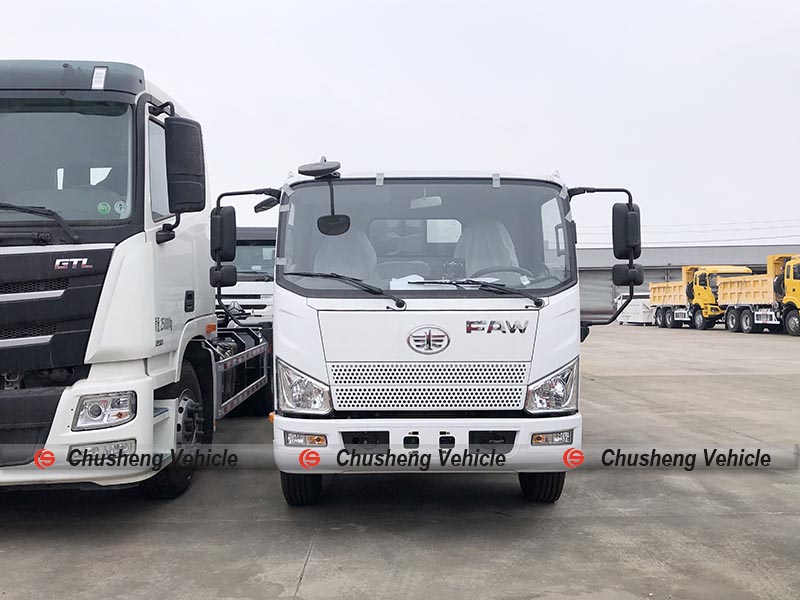

1. FAW brand chassis, perfect performance.
2. High compression ratio and large loading capacity.
4. Compression body capacity from 3 to 20 CBM.
5. Various types of refuse container lifer are available.
Technical Specification:
FAW Garbage Collectors Truck |
||
Vehicle details |
Vehicle brand |
FAW |
GVW |
7,995kg |
|
Kerb Weight |
5,400 kg |
|
Overall dimension |
6590x2050x2540 mm |
|
Chassis |
Chassis brand |
FAW |
Drive Type |
4x2 left hand drive or Right hand drive |
|
Type of fuel |
Diesel |
|
Emission standard |
Euro V |
|
Horse power |
154HP (115kw) |
|
Displacement |
3760 cc |
|
Wheelbase/ No. of axles |
4200 mm / 2 |
|
Tyre |
245/70R19.5 / (6+1)pcs |
|
Max speed |
90 km/h |
|
Superstructure details |
Capacity |
8 CBM |
Box material |
Carbon steel |
|
Multi-way reversing valve |
China famous brand |
|
Hydraulic cylinder |
China famous brand |
|
Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate. |
||

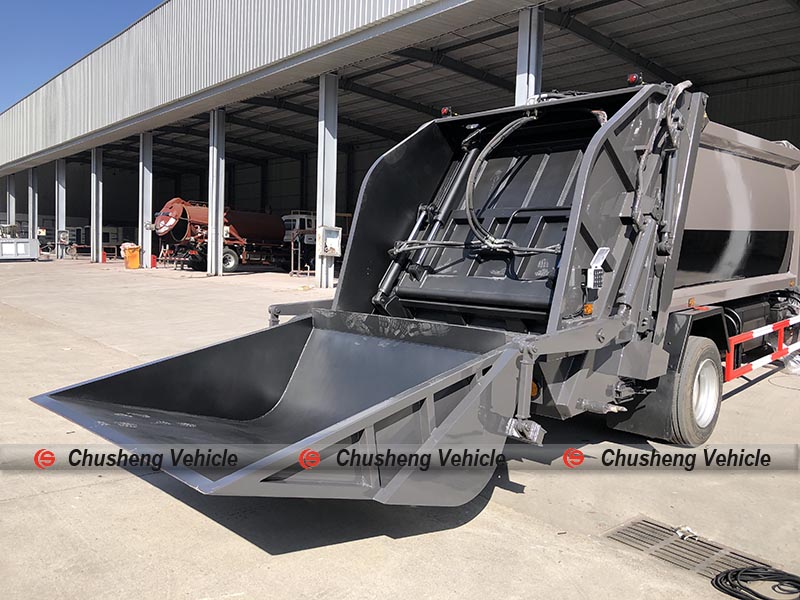

Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc. |
||
Remark |
Above specification is just for reference, please send us your detail request. |
