ISUZU 14-18m Articulated Basket Platform

Aerial platform truck

ISUZU 14-18m Articulated Basket Platform

CSC Articulated Basket Platform is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.

  • product details


Truck Description:

CSC Articulated basket platform (also called as hydraulic beam lifters, aerial platform operation truck, aerial working platform, telescopic arm aerial work truck, aerial working truck, aerial lift, aerial bucket trucks, aerial lift truck, aerial truck bucket truck) is widely applied in fields needing aerial work, such as street lamp maintenance, garden project, television shooting, communication engineering, airport, decoration and advertising.


Advantage:

1: ISUZU brand chassis, perfect performance, ISUZU engine, super powerful, reliable performance.

2: Excellent performance: the steel structure of the complete vehicle is made of high-strength materials. The main hydraulic and electrical components are produced by domestic & overseas famous manufacturers.

3: High efficiency operation & Convenient maintenance.

4: Handiness & wear resistance, the super-large working platform may carry 200KG (2people at most), able to be rotated 360 degree.

5: Control both on the ground and in the cage.

6: Hydraulic locks ensure safely in case of hydraulic failure.


Technical Specification:


ISUZU 14-18 M Articulated Basket Platform

Vehicle Parameters

General

Vehicle Brand

CSC

Chassis Brand

ISUZU

Overall Dimension(mm)

6880x5755x6880

GVW/Curb Weight(kg)

6080/5755

Chassis Parameters

Cab

Cab Seat

2+3

Air Conditioner

Equipped

Engine

Fuel Type

diesel

Engine Brand

ISUZU

Power(kw/hp)

190 Ps(139kw)

Displacement(L)

5.193

Emission Standard

Euro V

Chassis

Drive Type

4*2 , LHD

Transmission

Isuzu MSB transmission,5 forward gears&1reverse, no overhaul within 500,000 km

Wheelbase(mm)

3815 / 2

Tire Specification

7.00R16

Tire No.(pcs)

6+1

Max Speed(km/h)

95

Paint

Metallic paint

Aerial Platform Structure Parameters

Cage rated capacity

200 kg

Working height

14-18m

Max. out reach(m)

11

Max lifting weight (kg)

1000

Slewing

360 degree continous rotation

The whole boom outreaching time

30s

Emergency system

optional

Contact

Ms. Anna

Whatsapp & Telephone: +86-18827587173

Email: annatruck@foxmail.com

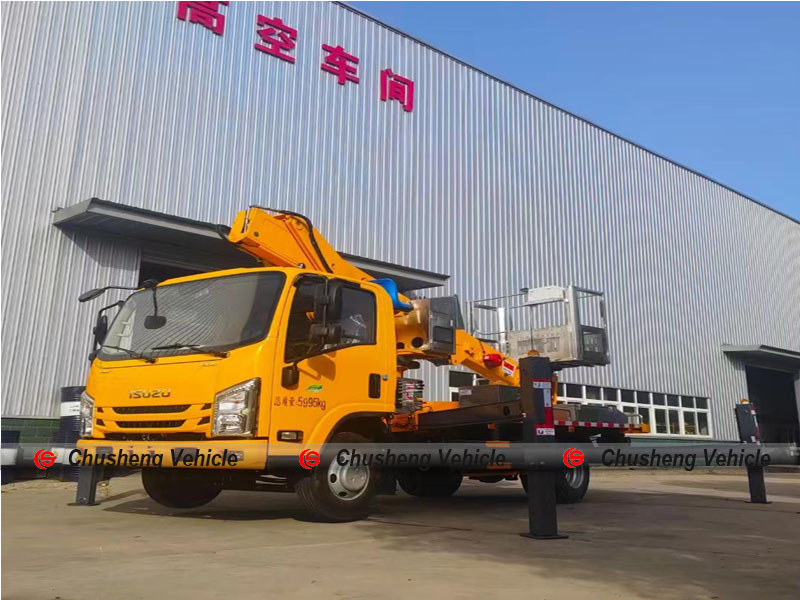

ISUZU 18 m Articulated Basket PlatformISUZU 18 m Articulated Basket Platform-Right Front

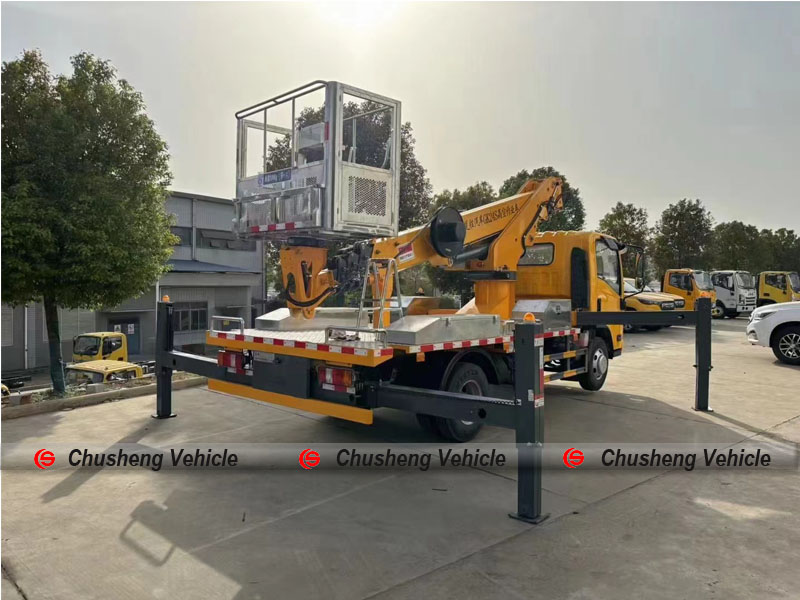

ISUZU 18m Aerial Platform Trucks-Right Back
