Truck Description:
CSC road sweeper truck (also known as road sweeping vehicle, street sweeper, road clean truck, street cleaning truck, municipal vehicle) is kind of vacuum type truck mounted road sweeping machine.
It’s specially designed for road rubbish collecting and transporting them to garbage station or dump site.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, sweeping system, suction system, water sprinkling system, hydraulic system etc.
Advantage:
1. Dustbin and water tank are made of stainless steel, much longer service life than carbon steel.
2. Wide sweeping area which can improve efficiency and reduce working time.
3. Cabin integrate control panel system for easy operation.
4.Top brand JMC or Cummins auxiliary engine, low fuel consumption and stable performance.
Technical Specification:

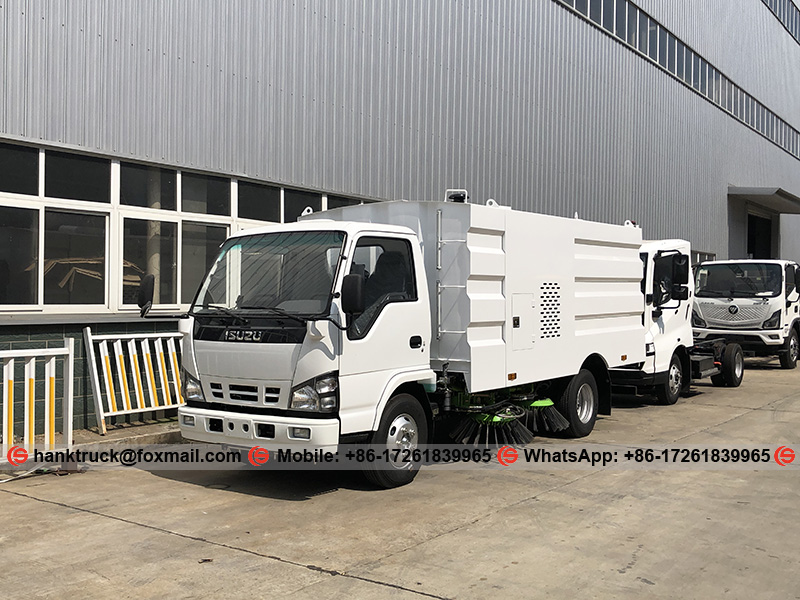

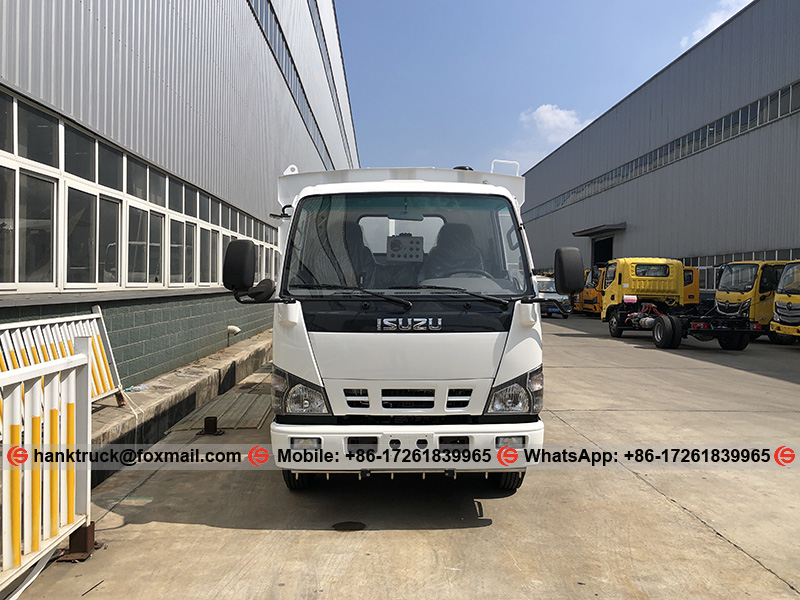

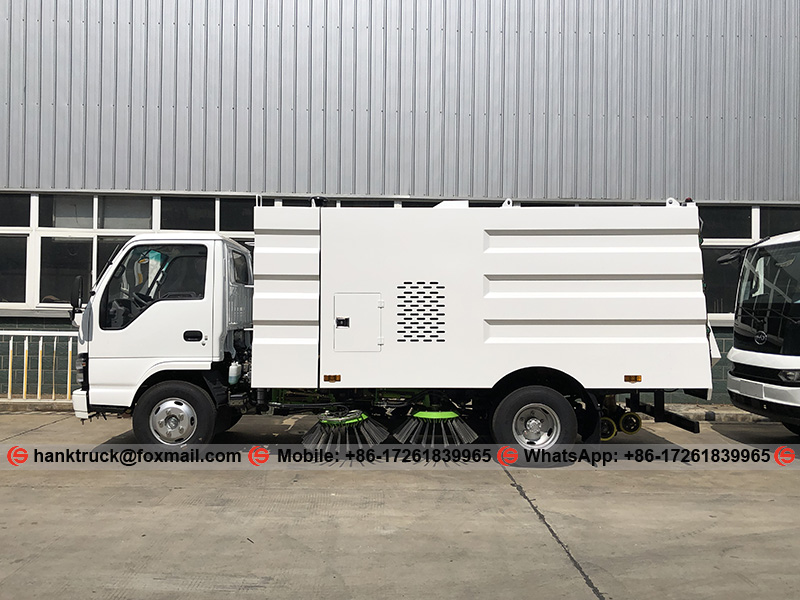

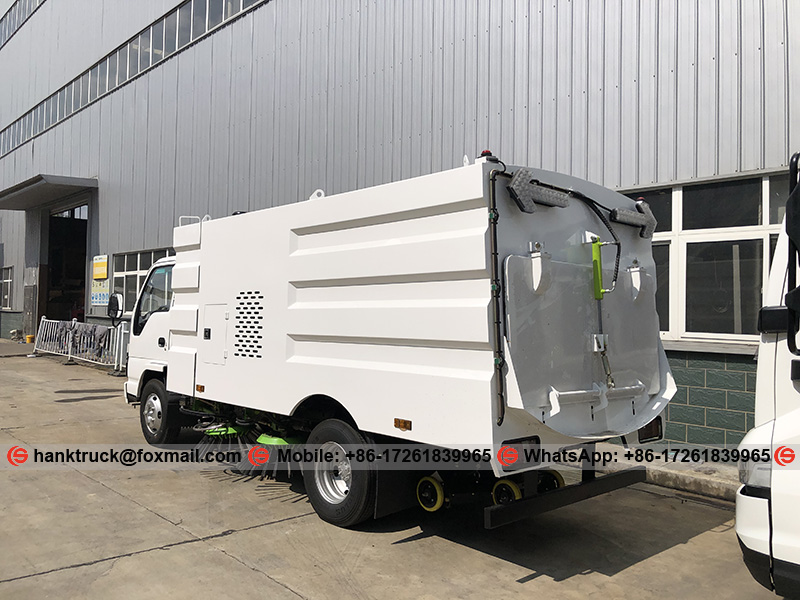

ISUZU 5,500 Liters Municipal Street Sweeping Truck to DRC
Vehicle Parameters
General
Vehicle Brand
Chusheng
Chassis Brand
ISUZU
Overall Dimension (mm)
6200x2200x2600 mm
Gross Vehicle Weight (kg)
7,300 kg
Curb/Net Weight (kg)
5,200 kg
Chassis Parameters
Cab
Seat Capacity
3 seats
A/C
Yes
Engine
Fuel Type
Diesel
Engine Brand
ISUZU Turbo Engine
Power (HP/KW)
130 HP
96 KW
Displacement (ml)
2999 ml
Emission Standard
Euro 5
Chassis
Drive Type
4x2, Left hand drive
Gear Box
ISUZU MSB manual gear box, 5 forward speed
& 1 reverse.
Wheelbase (mm)
3360 mm
Tire Specification
7.00R16
Tire No. (pcs)
6+1 pcs
Max Speed (km/h)
95 km/h
Top Structure Parameters
Water Tank Capacity/Material
1,500 Liters
Stainless steel / Carbon steel
Dustbin Capacity/Material
4,000 Liters
Stainless steel / Carbon steel
Control
Cabin integrate control panel for
easy operation
Auxiliary Engine
JX ISUZU Engine; Engine Power: 87 HP (64 KW).
Sweeping Brushes
4 pcs, middle positioned
Sweeping Width
2800 mm
Sweeping Speed
3-15 km/h
Sweeping Capacity
42,000 m2/h
Water Spray
Water mist spray above brushes to
reduce dust during sweeping
Suction Hose Diameter
200 mm
Max Suction Particle
120 mm
Dustbin Lift Angle
45 degrees
Accessories
Emergent pump, maintenance free fan, auto
clutch, electric diaphragm water pump, magnetic valves, dual camera monitor (rear
and side), brush lighting, LED arrow light, low water level alarm, music
alarm etc.
