Truck Description:

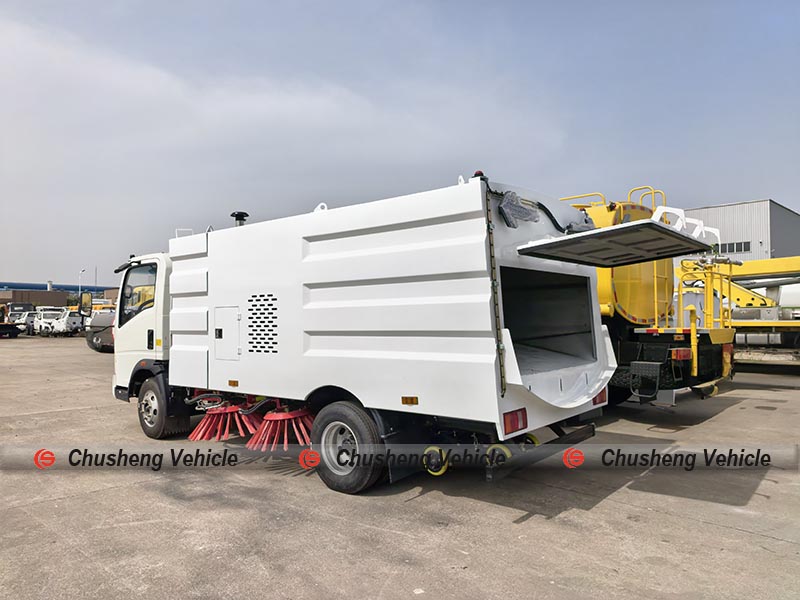

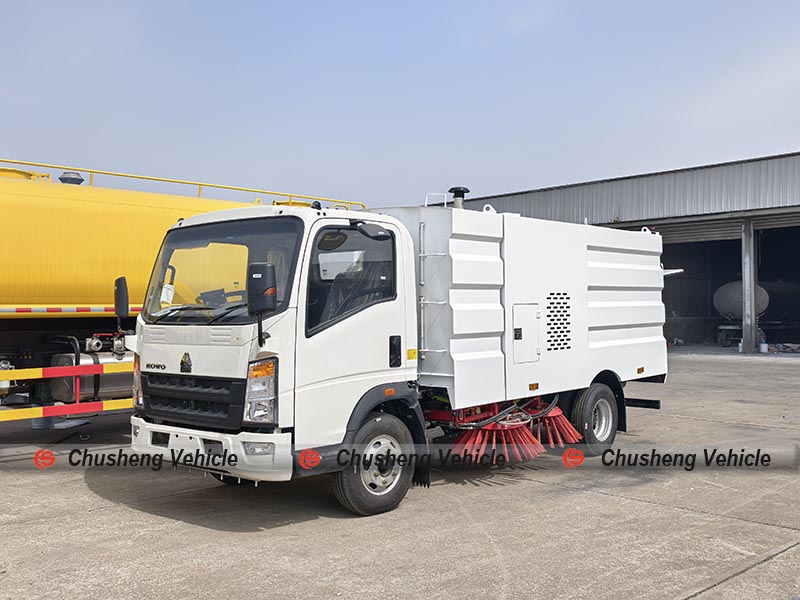

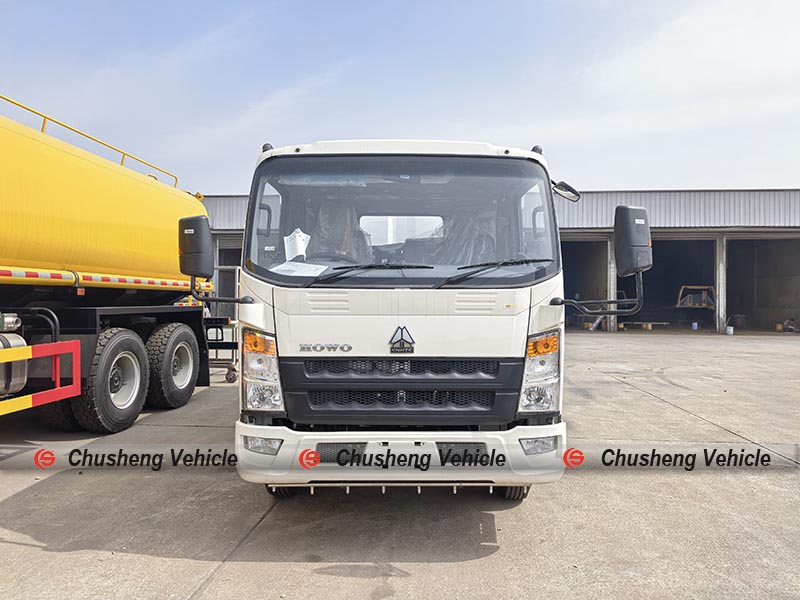

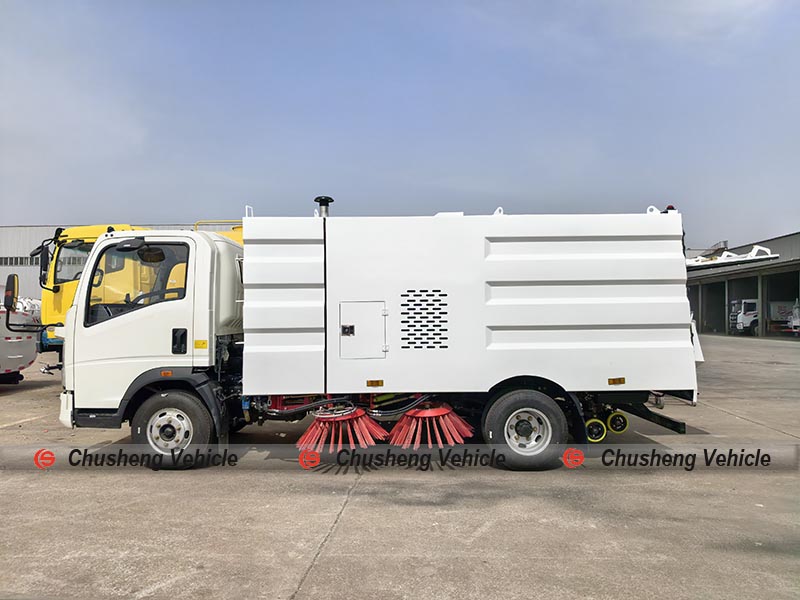

CSC road sweeper truck (also known as road sweeping vehicle, street sweeper, road clean truck, street cleaning truck, municipal vehicle) is kind of vacuum type truck mounted road sweeping machine.
It’s specially designed for road rubbish collecting and transporting them to garbage station or dump site.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, sweeping system, suction system, water sprinkling system, hydraulic system etc.
Advantage:
1. Dustbin and water tank are made of stainless steel, much longer service life than carbon steel.
2. Wide sweeping area which can improve efficiency and reduce working time.
3. Cabin integrate control panel system for easy operation.
4.Top brand JMC or Cummins auxiliary engine, low fuel consumption and stable performance.
Technical Specification:
Right Hand Drive SINOTRUK HOWO 5,500 Liters Road Sweeper Truck
Vehicle Parameters
General
Vehicle Brand
Chusheng
Chassis Brand
SINOTRUK HOWO
Overall Dimension (mm)
6200x2200x2650 mm
Gross Vehicle Weight (kg)
7,500 kg
Curb/Net Weight (kg)
4,800 kg
Chassis Parameters

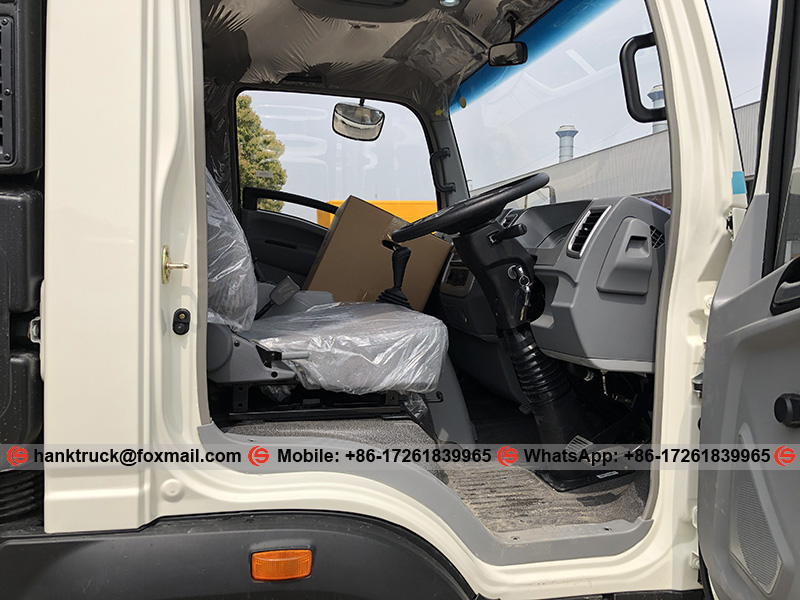

Cab
Seat Capacity
3 seats
A/C
Yes
Engine
Fuel Type
Diesel
Engine Brand
Yunnei Turbo Engine
Power (HP/KW)
116 HP
85 KW
Displacement (ml)
3760 ml
Emission Standard
Euro 2
Chassis
Drive Type
4x2, Right hand drive
Gear Box
WLY manual gear box, 6 forward speed
& 1 reverse.
Wheelbase (mm)
3360 mm
Tire Specification
7.00R16
Tire No. (pcs)
6+1 pcs
Max Speed (km/h)
95 km/h
Top Structure Parameters
Water Tank Capacity/Material
1,500 Liters
Carbon steel

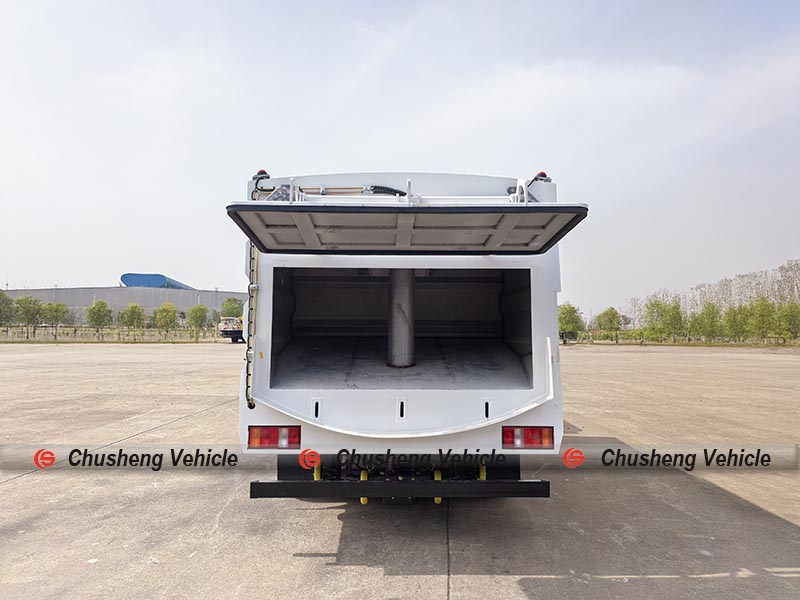

Dustbin Capacity/Material
4,000 Liters
Carbon steel
Control
Cabin integrate control panel for
easy operation
Auxiliary Engine
Engine Power: 64 KW

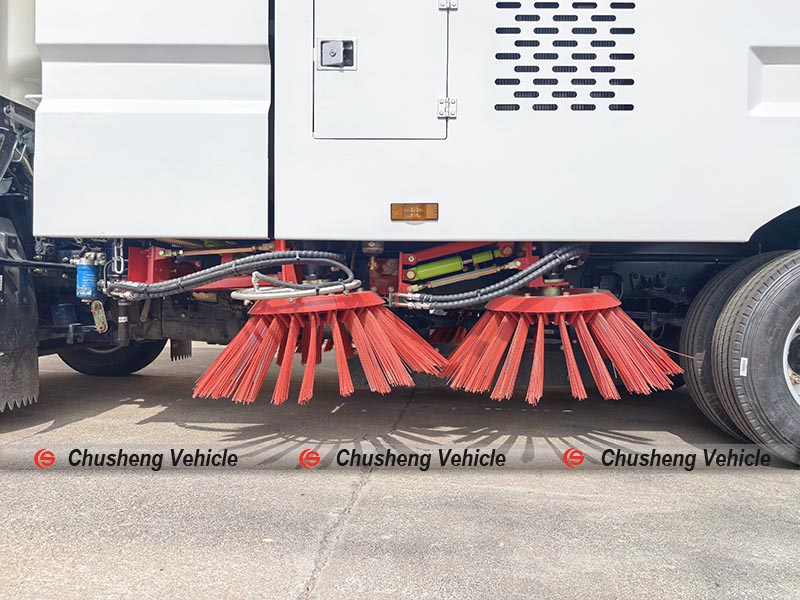

Sweeping Brushes
4 pcs, middle positioned
Sweeping Width
2800-3200 mm
Sweeping Speed
3-15 km/h
Sweeping Capacity
43,500 m2/h
Water Spray
Water mist spray above brushes to
reduce dust during sweeping

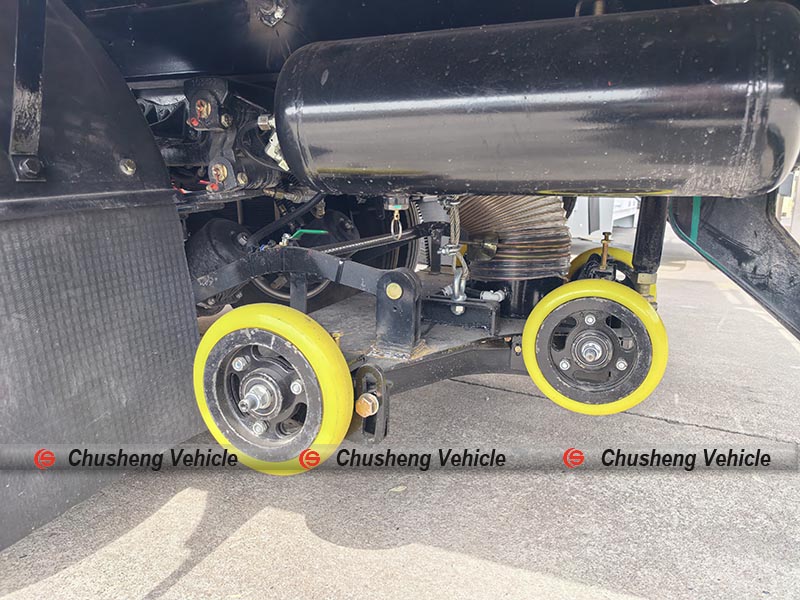

Suction Hose Diameter
200 mm
Max Suction Particle
120 mm
Dustbin Lift Angle
45 degrees
Accessories
Emergent pump, maintenance free fan, auto
clutch, electric diaphragm water pump, magnetic valves, dual camera monitor (rear
and side), brush lighting, LED arrow light, low water level alarm, music
alarm etc.
Contact
Mr. Hank
Mobile & WhatsApp No.: +86-17261839965
E-mail: hanktruck@foxmail.com
CNCSC Light Road Cleaning Truck advantages are ensure the beauty of the city road, maintain the sanitation of the environment, maintain the good condition of the road, effectively reduce and prevent the occurrence of traffic accidents, and further prolong the service life of the urban road.
In addition to the sweeping function, the sweeper truck also can be equipped with a front flush, a snow shovel, a rear spray, a green cannon, etc to achieve a multi-purpose vehicle.Road cleaning truck is with the functions of road surface cleaning, garbage collection and transportation.
The road sweeper truck is a new generation road sweeper combining sweeping and suction function. It is mainly suitable for mechanized cleaning and sweeping operations in city streets, municipal squares, and large factories and mines.
Road Sweeping Truck is designed to clean the street, which fulfills the function by 4 brushes with water spray nozzle and rear vacuum suction nozzle. The 4 brushes sweep the garbage together, which for the vacuum suction nozzle collecting. The water spray nozzle is equipped for dust elimination, preventing re-pollution.
Street sweeper truck is designed to clean the street, which fulfills the function by 4 brushes with water spray nozzle and rear vacuum suction nozzle. The 4 brushes sweep the garbage together, which for the vacuum suction nozzle collecting. The water spray nozzle is equipped for dust elimination, preventing re-pollution.
