ISUZU Road Brush Sweeper, factory directly sales
Item No :

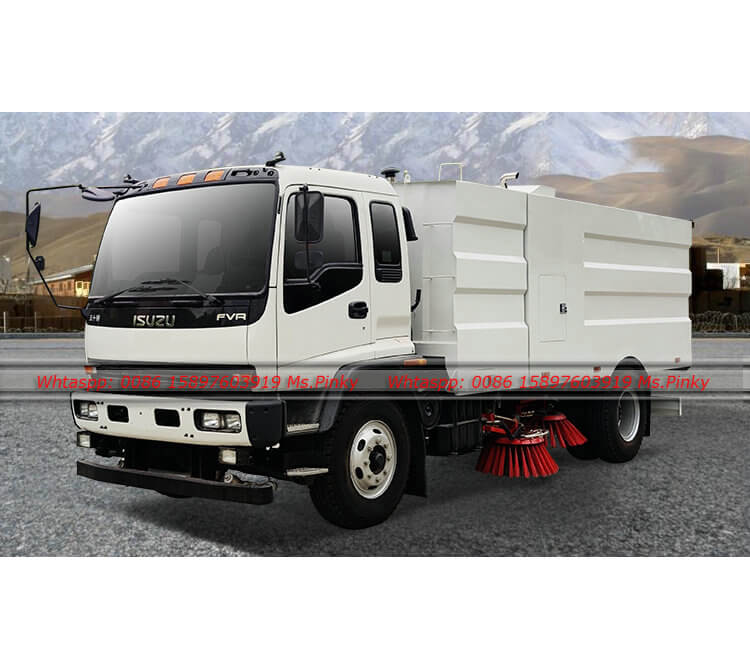

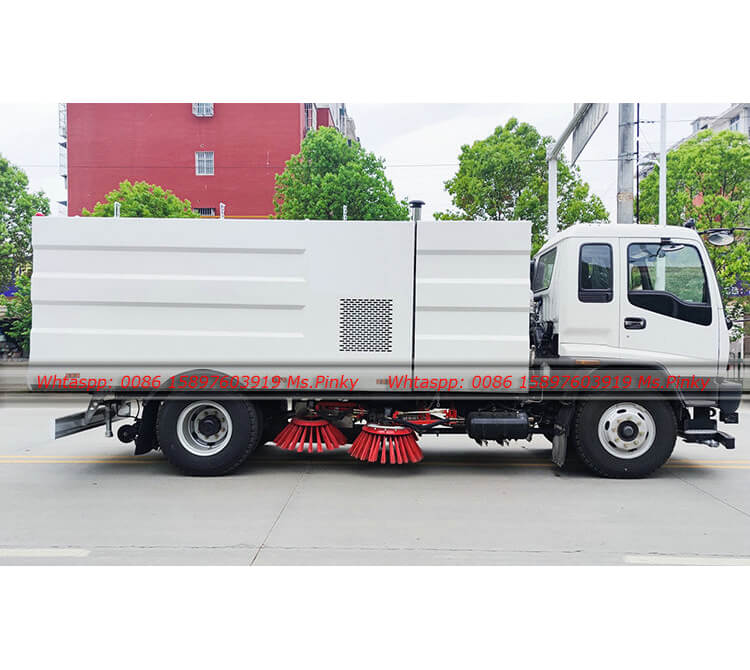

ISUZU FVR Truck Mounted Road Sweeper 4000Liters Water Tank 8000Liters Garbage TankOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysScope of application of ISUZU Road Sweeper: Daily cleaning of urban roads, highways, squares, airports, wharves, tunnels, bridges, wharves, etc.
Optional : 4x4 Driving
ISUZU FVR Truck Mounted Road Sweeper Specs:
| Model | QL1180XMFRY ISUZU Sweeper Road Car | |
| Wheelbase(mm) | 4500 | |
| Drive type | 4*2 Left hand drive | |
| Weight | GVW(KG) | 18000 |
| Curb weight(kg) | 9680 | |
| Overall | Length(mm) | 7930 |
| width(mm) | 2500 | |
| Height (mm) | 3120 | |
| Cab | Double/single | 1.5cab (FVR CLASSICAL CARBIN) |
| Driver&passenger | 3 | |
| engine | model | 6HK-TCL(Diesel) / 240HP |
| Type | 6Cylinder (6-Cylinder diesel& water cooled). Denso high pressure common rail fuel injection system, electronic controlled EGR,2 level EGR Cooling tube and DOC Emission control technology; electronic controlled VGS(VAT Variable area turbocharger) inter-cooling tech. | |
| Emission standard | Euro 5 | |
| Displacement(L) | 7.79 | |
| Max. Power(kw) | 178KW / 240HP | |
| Max. Torque | >760N.M | |
| Fuel tank volume | 200L | |
| Mas. Horsepower | 242 | |
| Transmission | MLD-6Q (Manual type, 6 forwards, 1 revere) | |
| Axle loading | Front axle(T) | 6.5 |
| Rear axle(T) | 11.5 | |
| Tire | 295/80R22.5(6PCS with one spare tire) | |
| Brake | Air brake | |
| Max. Speed (Km/h) | 105 .80 | |
| Other | A/C (Radio)，Power steering ( hydraulic power steering，Rear view mirrors， ABS，Safety belt， Manual book(English versions） | |
| Suction and sweeping operation | Cleaning efficiency | ≥95% | |
| Max. suction particle size | 120 mm | ||
| Suction width | 2.8-3.2 m | ||
| Max. sweeping capacity | 70000 m2/h | ||
| Extension dimension of disc brush | ≥400 mm | ||
| Suction and sweeping travel speed | 3-20 km/h | ||
| Water Tanker | capacity | 4 m³ | |
| Garbage tank | capacity | 8 m³ | |
| Dump angle of garbage bin | ≥46° | ||
| Opening angle of discharge door | ≥85° | ||
| Hydraulic system | Type | Open type, electrical control | |
| Main elements | Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve | ||
| system pressure | 16 MPa | ||
| Hydraulic tank capacity | 60 L | ||
| Oil temperature | 60 ˚C | ||
| electrical system | type | DC24 V | |
| Voltage | 24 V | ||
| Battery | 24 V | ||
| Sprinkler system | Main components | New Xishan electronic diaphragm pump, water filter, nozzle, etc | |
| Disk sweeping device | Type | There are four sweeping plates in the center, which are driven by hydraulic motor. The right front can be controlled independently, and has the function of avoiding and recovering. | |
| Scanned disc diameter | 850 mm | ||
| Scanning angle | Inclination forward: 4-6 degrees Inclination outward: 4-7 degrees | ||
| Sucker disc | Type | Single suction port, hydraulic control, spring suspension. | |
| Suction diameter | 200 mm | ||
