Item No :

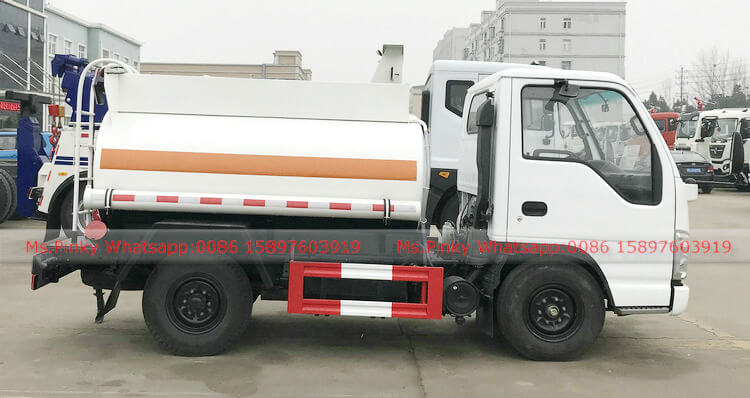

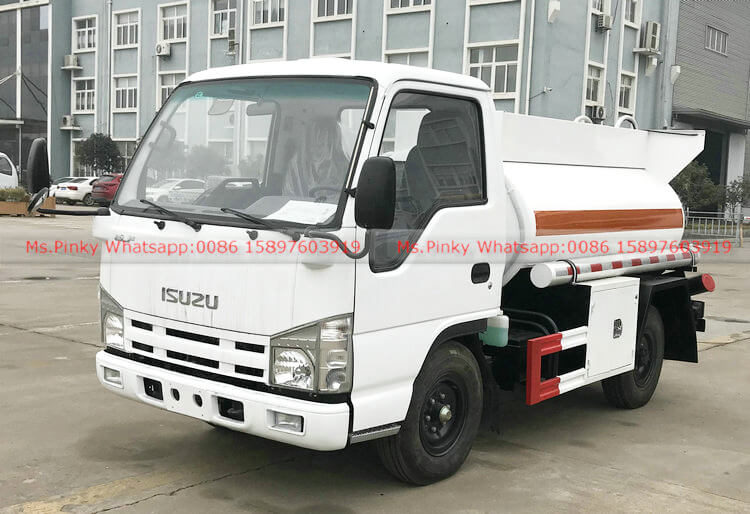

Mini Small ISUZU Oil Tank Truck 2500L for PhilippinesOrder(MOQ) :
1Payment :
TT OR LCProduct Origin :
30-35daysColor :
white or CustomizedShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export Port
| Products Technical Specification | |
| Type | 2500L fuel tanker truck |
| Brand | ISUZU 4*2 |

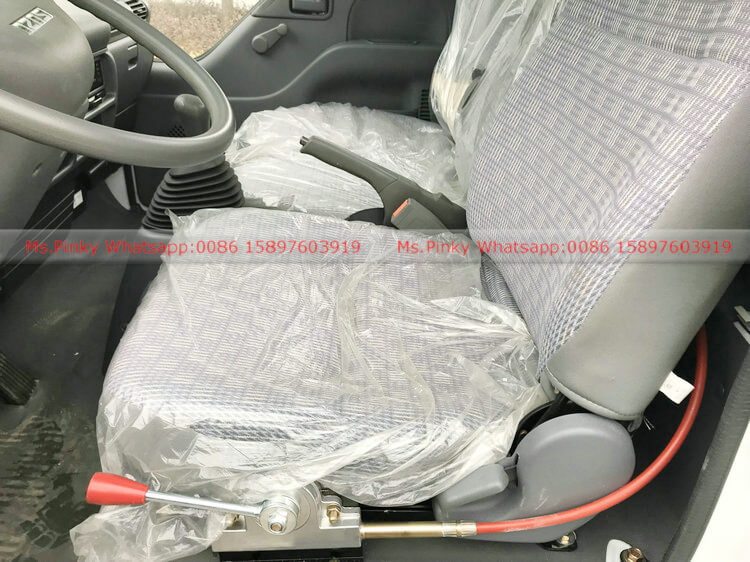

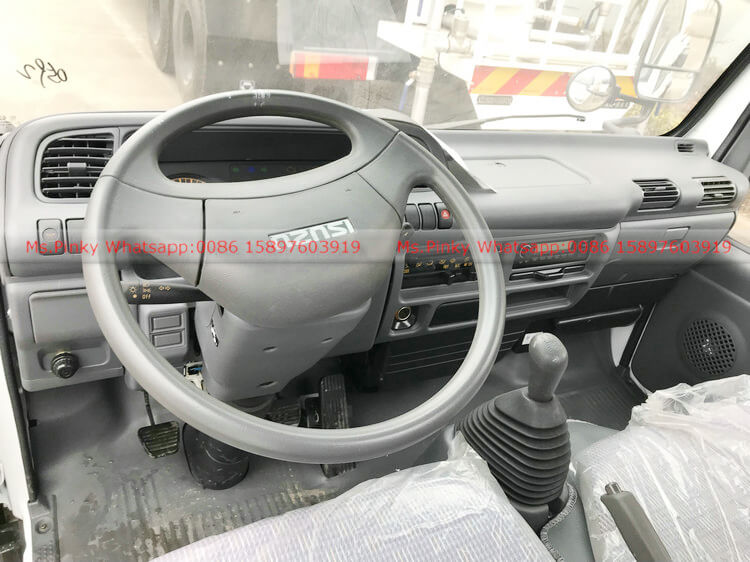

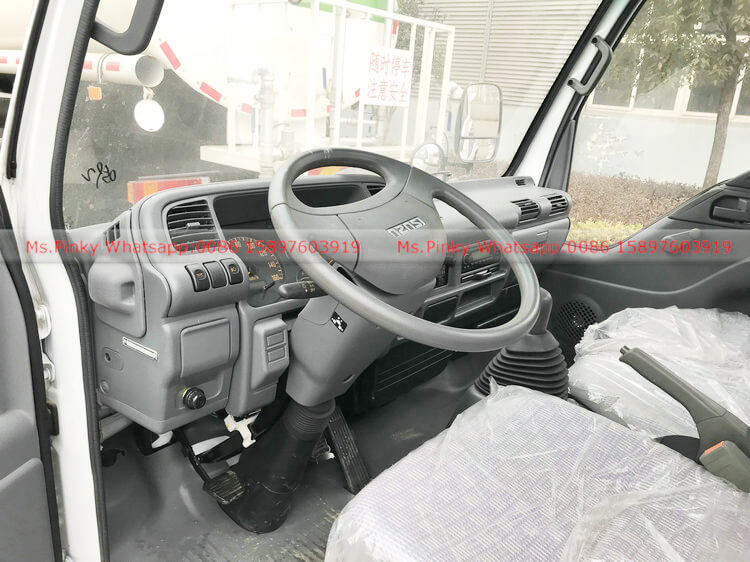

| Cab | Power steering, Air Condition |
| Vehicle Description | |
| Overall dimensions（mm） | 5000×1990×2300 |
| Curb weight(vehicle) (kg) | 3,931 |
| Loading capacity (kg) | 2000 |
| Max speed (Km/h) | 95-120 |
| Engine | |
| Mode | ISUZU 4JB1CN |
| Type | Diesel, 4-cylinder in line with water cooling,turbo-charging |
| Max. power/rotated speed | 72(KW) /98HP |
| Displacement(ML) | 2771 |
| Emission level | Euro 4 |
| Chassis Description | |
| Wheel base | 2765 |
| Front axle | 2T |
| Rear axle | 3--4.8T |
| Front tread / rear tread | 1385/1425 |
| Gear box | ISUZU MSB 5-speed |
| Brake system | Oil brake belt vacuum booster pump |
| Electric system | 24V |
| Tyres | 7.00-15 |
| Fuel tanker | |
| Capacity of tank body | 2,500Litres |
| Material of tank body | Carbon steel,Install diesel Fuel Pump |
| Baffles | With elliptical baffles welded both sides with 6’’ drains to protect the wave to the head. |
| Manhole | On manhole on the top of tank body |

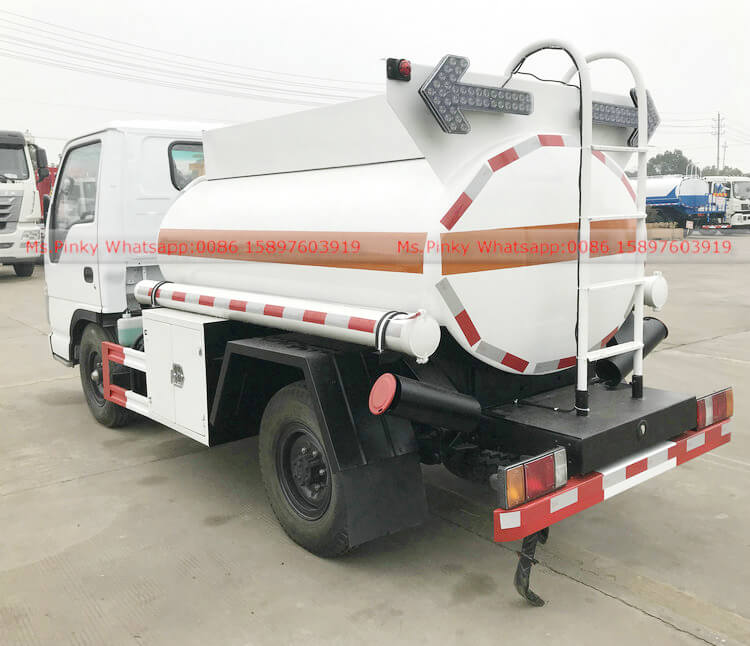

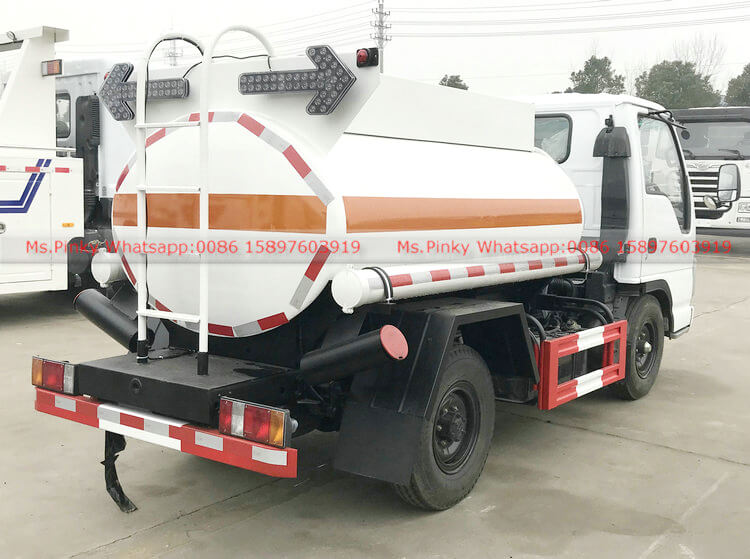

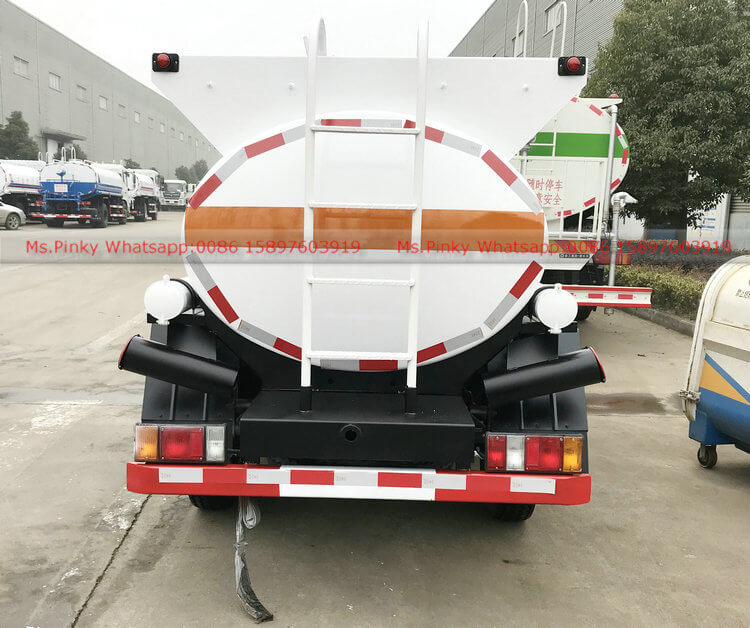

| ladder | Steel mounted at front, bolted top and bottom |
| walkway | Along the top of the tank, sand paint |

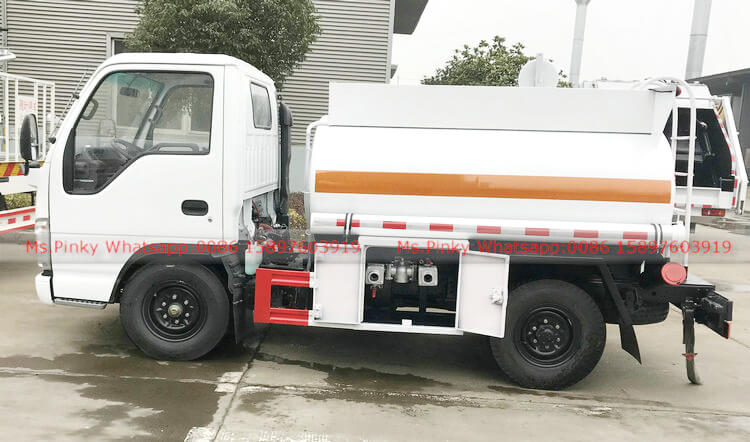

| Cabinet | One at the side the tank covering the valve. |
| Painting | One anti corrosion and zinc-rich primer and final painting will be accordance with customer need. |
