Truck Description:

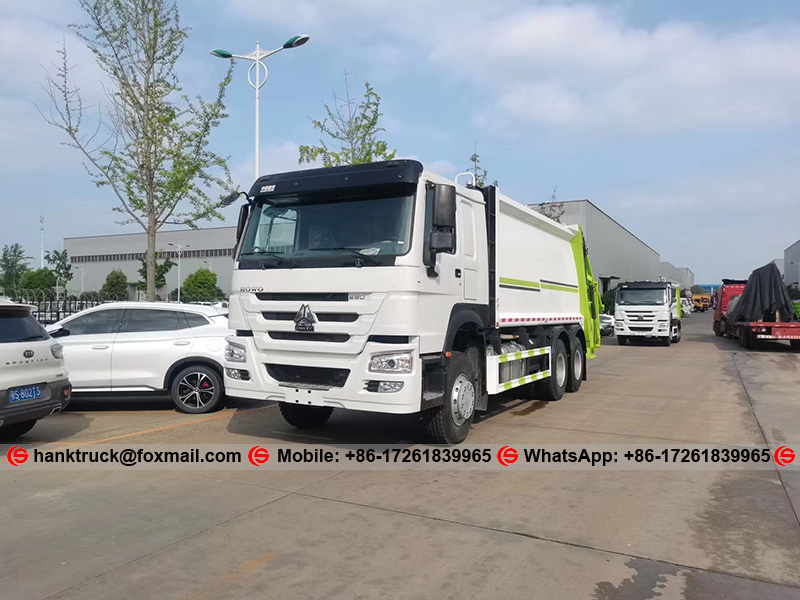

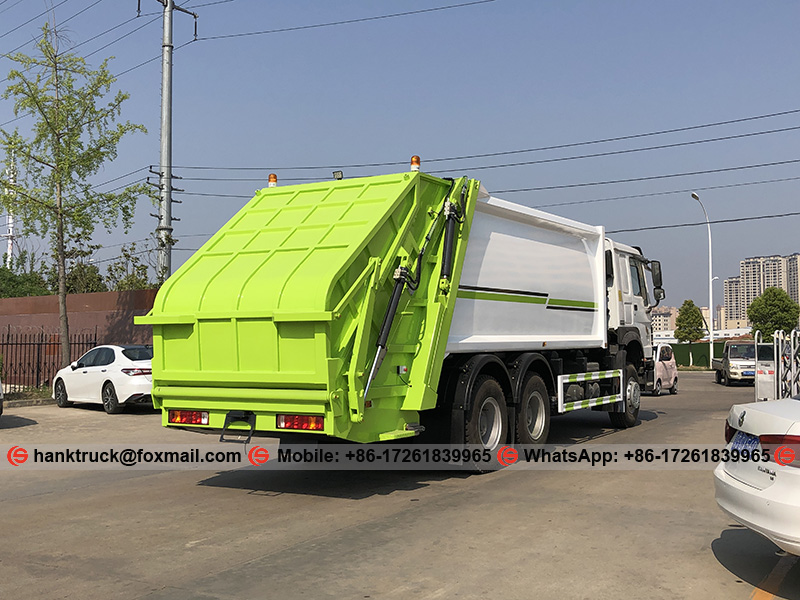

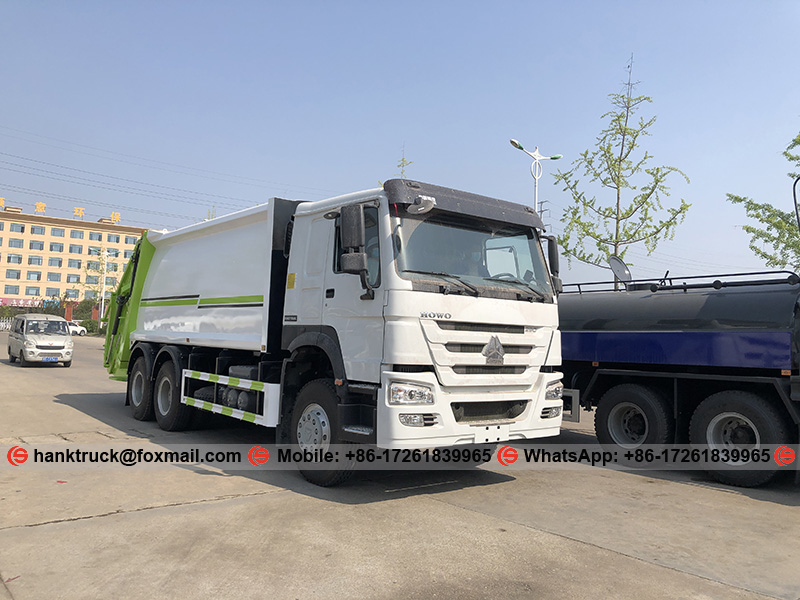

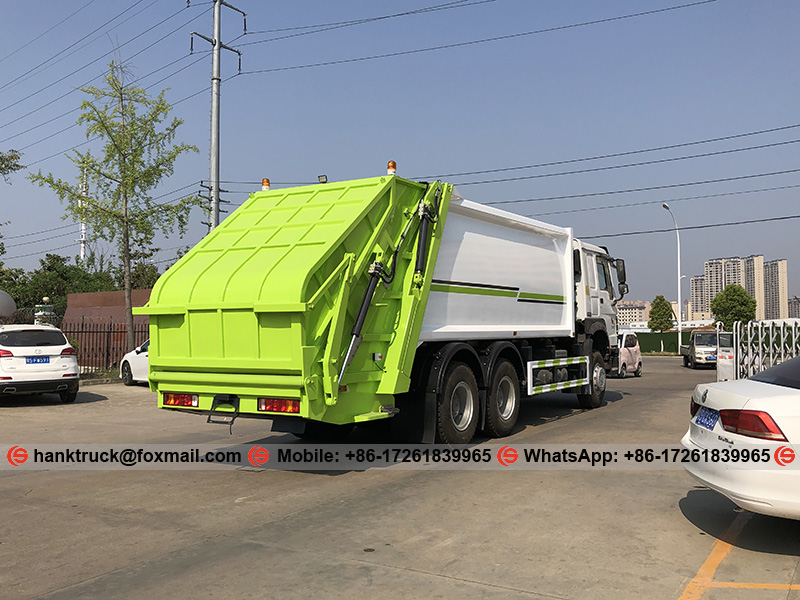

SINOTRUK HOWO 18 Cubic Meters Compactor Garbage Truck Price,Box material is carbon steel, it’s for garbage loading, compression, transportation and discharge; with special design, all dirty water goes to sewage tank, preventing re-pollution.
According to user needs, it is equipped with various lifting mechanisms with a wide range of applications. The lifting support device with convenient installation and long service life, the cam clamping device of the barrel mechanism with high efficiency and wide application are carefully designed, which effectively eliminates the risk of barrel falling during the feeding process, and provides the possibility of configuring a variety of lifting devices.
Advantage:
1. Sinotruck howo brand chassis, perfect performance.
2. Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, the sewage leaked between the filler and the garbage box due to the failure of the sealant strip can be drained to a dedicated sewage collection tank, which can effectively prevent the leakage caused by sewage. Secondary pollution；3. The joint of the stuffer and the box adopts adjustable hydraulic locking full sealing technology, which has good sealing performance.
4. The push plate slider adopts high wear-resistant alloy material, which has a long service life.
5. Equipped with a number of safety protection measures such as slide up, scraper turning up button, emergency stop button, interlock switch to prevent the filler from falling, safety brace, and self-locking function of the filler lifting cylinder, to ensure personnel safety.
Technical Specification:
|
SINOTRUK HOWO 18 Cubic Meters Compactor Garbage Truck Price |
||
|
Vehicle details |
Vehicle brand |
CSC |
|
GVW |
25,000kg |
|
|
Kerb Weight |
9,400 kg |
|
|
Overall dimension |
10090x2250x3240 mm |
|
|
Chassis |
Chassis brand |
SINOTRUK HOWO |
|
Drive Type |
6x4 left hand drive or Right hand drive |
|
|
Type of fuel |
Diesel |
|
|
Emission standard |
Euro II |
|
|
Horse power |
340HP (250kw) |
|
|
Displacement |
9726cc |
|
|
Wheelbase/ No. of axles |
4600+1350mm / 3 |
|
|
Tyre |
12.00R20/(10+1)pcs |
|
|
Max speed |
90 km/h |
|
|
Superstructure details |
Capacity |
18 CBM |
|
Box material |
Carbon steel |
|
|
Multi-way reversing valve |
China famous brand |
|
|
Hydraulic cylinder |
China famous brand |
|
|
Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate. |
||
|
Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc. |
||
Technical Specification:
Waste collector truck we produce from 4,000L to 20,000L, Optional different turnover mechanism to adapt to different bins (120L, 240L, 660L etc.). Garbage compactor truck has the advantages of high pressure, good sealing, easy operation and safety.
CNCSC JMC 6 CBM waste truck use imported components for key components, which have the advantages of high pressure, good sealing, convenient operation and safety. 6,000L garbage truck can optional rear bucket turnover mechanism or trash bucket turnover mechanism.
Compressed garbage truck consists of sealed garbage compartment, hydraulic system and operating system. The whole vehicle is fully sealed, self-compressed, self-dumped, and all the sewage in the process of compression is entered into the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation and avoids inconvenience to people.
Compressed garbage truck consists of sealed garbage compartment, hydraulic system and operating system. The whole vehicle is fully sealed, self-compressed, self-dumped, and all the sewage in the process of compression is entered into the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation and avoids inconvenience to people.
Compressed garbage truck consists of sealed garbage compartment, hydraulic system and operating system. The whole vehicle is fully sealed, self-compressed, self-dumped, and all the sewage in the process of compression is entered into the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation and avoids inconvenience to people.
