SINOTRUK HOWO 18CBM Waste Removal Truck on sale

Garbage Compactor Truck

SINOTRUK HOWO 18CBM Waste Removal Truck on sale

  • product details

Truck Description:

CSC garbage compactor truck (also known as garbage truck, compressed garbage truck, refuse collection truck, waste collection vehicle, dirt-wagon, dust cart trash truck, dustcart, and bin lorry) is a special purpose vehicle used to collect and transport all kinds of garbage in municipal sanitation department.


Advantage:

1. The garbage box is made of high strength wear resistant steel plate, prolonging box service life.

2. Top China brand cylinders and multi-way valve, high hydraulic pressure and high compression ratio up to 2.5:1, ensuring better loading capacity.

3. Intelligent integrated control panel, easier to operate and greater efficiency; the multi-way valve control always available just in case.

4. Two sewage tanks system: one sewage tank under loading container, the other sewage tank under garbage box. All sewage goes into the tanks to avoid dripping during compacting and transportation.

5. Compression box capacity from 3-20 CBM.

6. Various types of garbage bin lifting device available.


Technical Specification:

Garbage compactor truck rear lift device can be customized to suit different type garbage bin.

SINOTRUK HOWO 18CBM Waste Removal Truck on sale

Vehicle Parameters

General

Vehicle Brand

Chusheng

Chassis Brand

SINOTRUK - HOWO

Overall Dimension (mm)

10500x2560x3350 mm

GVW (kg)

25000 kg

Curb/Net Weight (kg)

/

Chassis Parameters

Cab

Seat Capacity

2 seats and sleeper

A/C

Yes

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI Turbo Engine

Power (HP/KW)

340 HP

250 KW

Displacement (ml)

9726 ml

Emission Standard

Euro 2

Chassis

Drive Type

6x4, Left hand drive

Gear Box

SINOTRUK brand manual gear box, 10 forward speed & 2 reverse.

Wheelbase (mm)

4600+1350 mm

Tire Specification

12R22.5

Tire No. (pcs)

10+1 pcs

Max Speed (km/h)

95 km/h

Garbage Compactor Structure Parameters

Box Capacity

18 CBM

Box Material

High strength wear resistant steel plate

Multi-way Valve

Top China brand or Italy imported brand

Hydraulic Cylinder

Top China brand

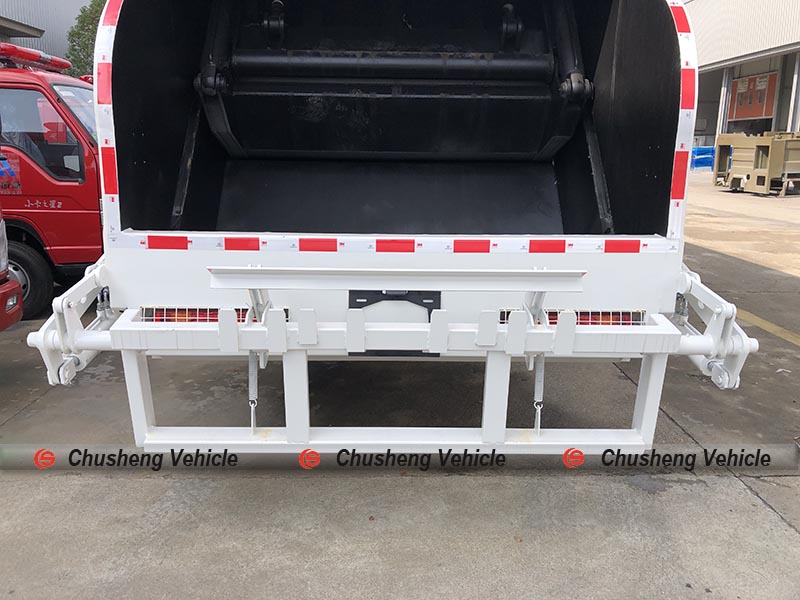

Lifting Device

Multiple garbage bin lifting devices optional to suit different type garbage bin, please see as below demonstration.

Sewage Tank

Two tanks. Equipped to avoid secondary pollution

Optional

Imported multi-way valve; Siemens PLC; HZL hydraulic cylinder; Rear cover; Dustpan loading container
