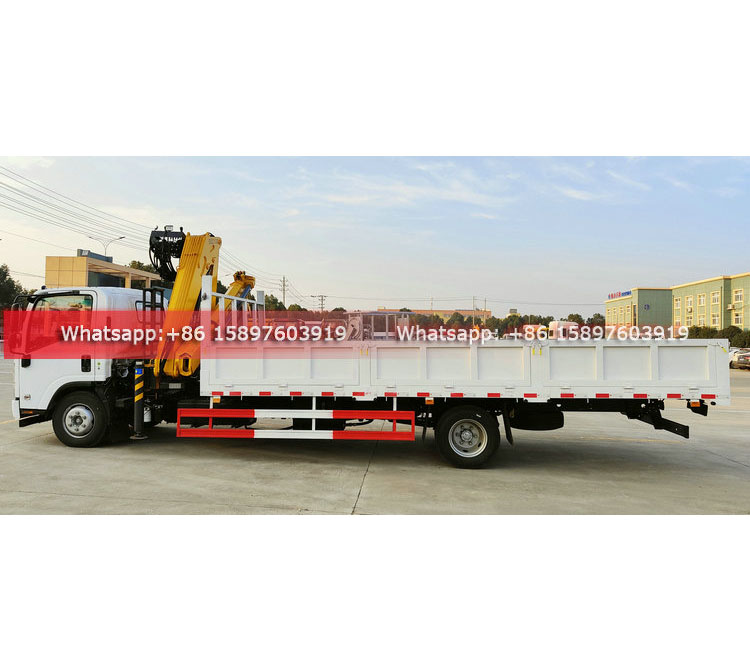

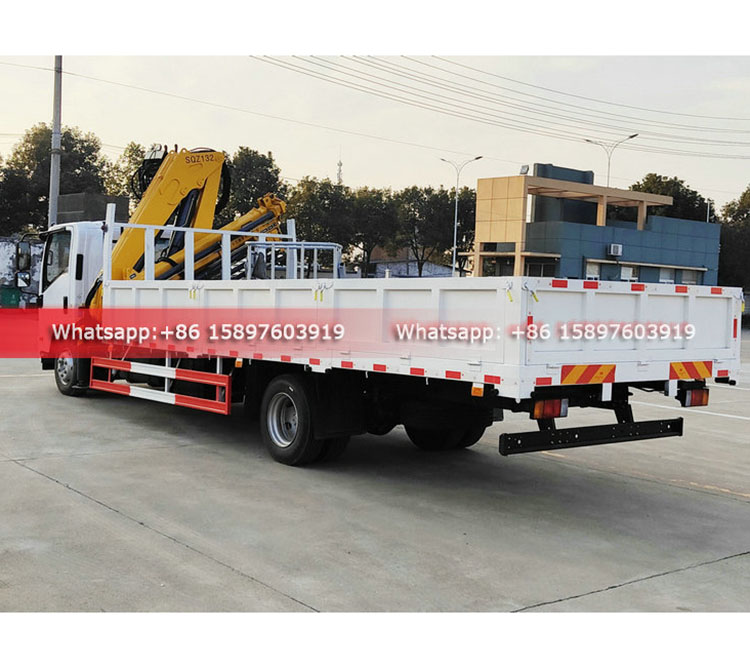

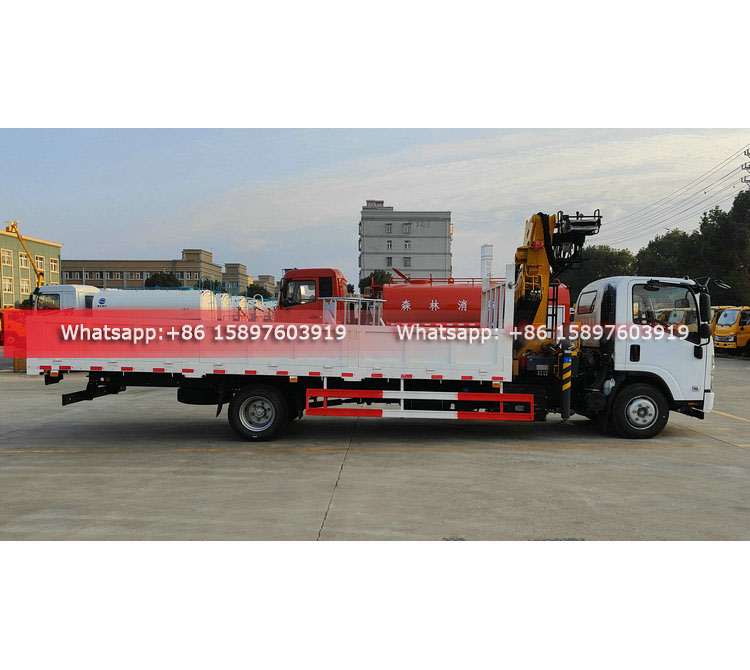

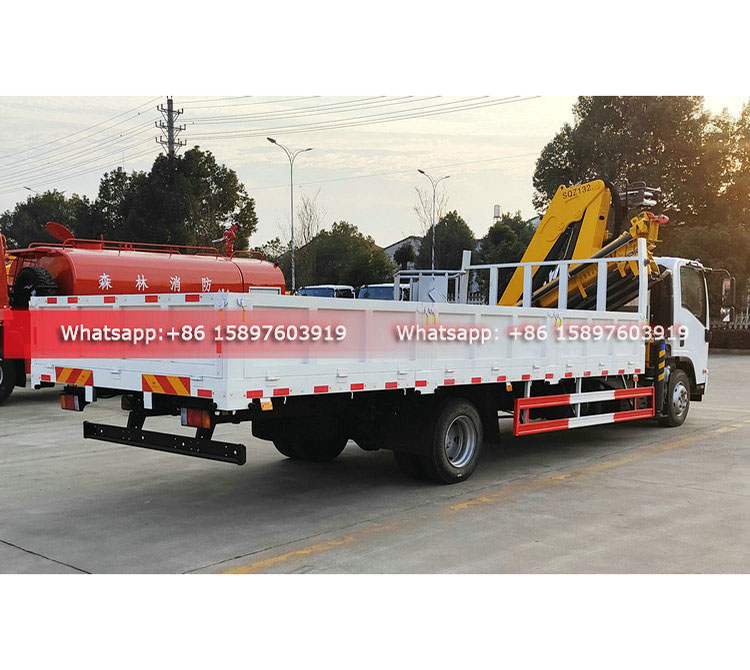

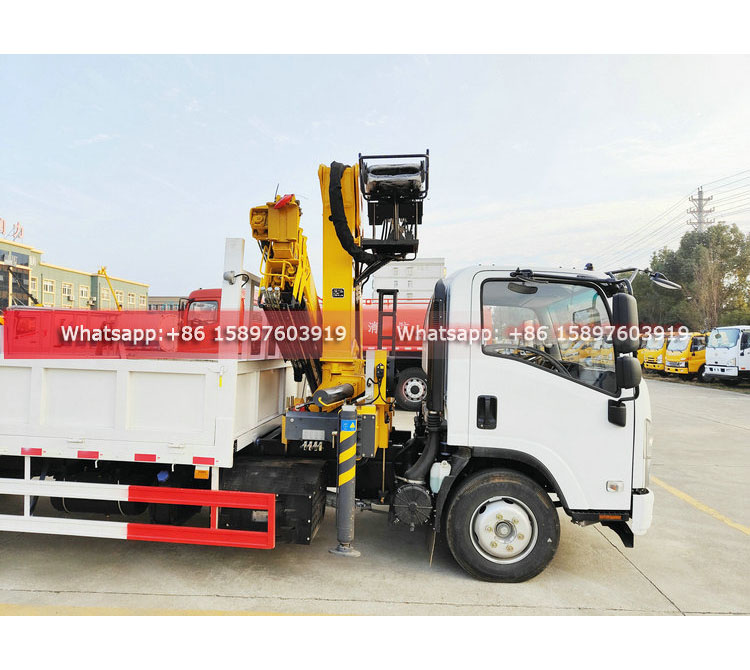

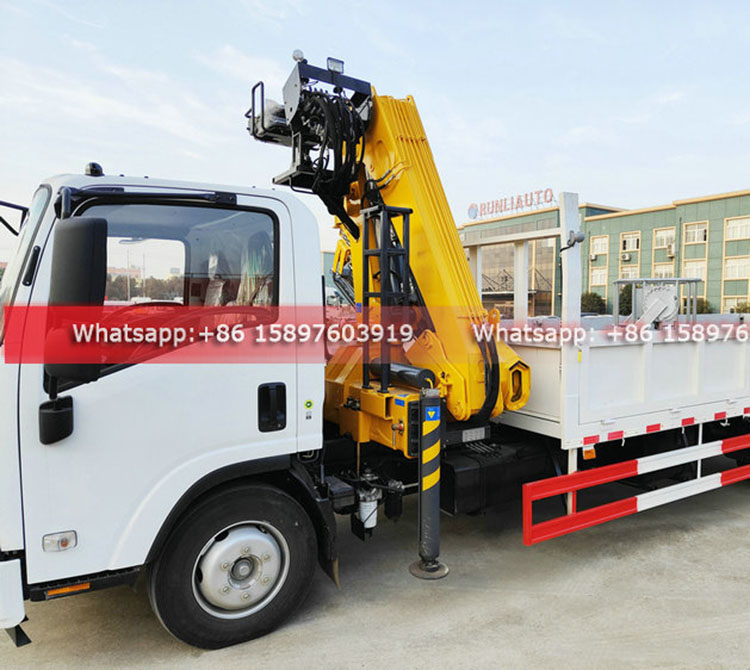

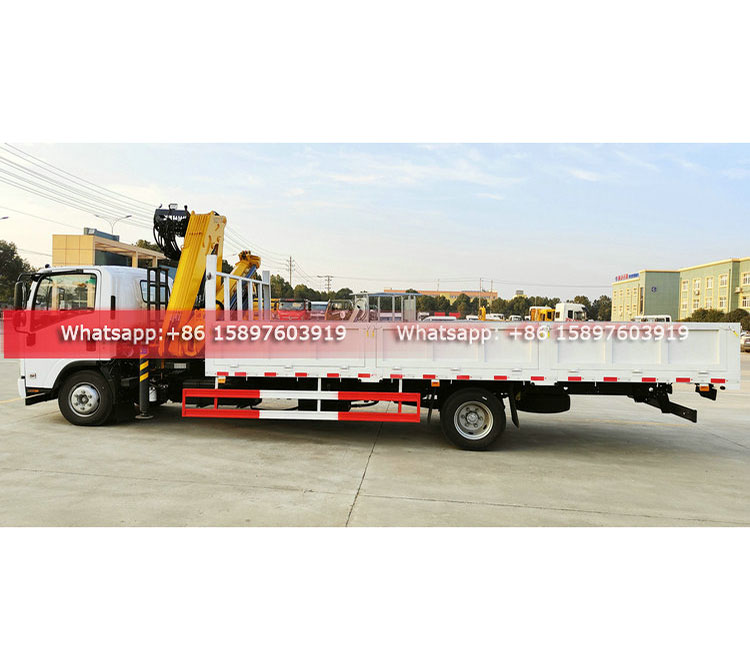

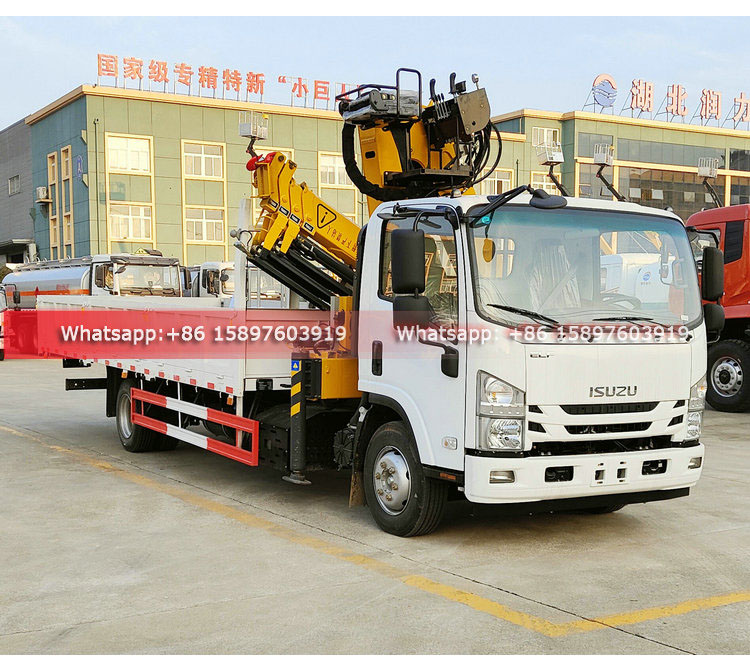

190HP ISUZU Truck Mounted With Crane
Item No :
190HP ISUZU Truck Mounted With Crane 5Tons Fold Boom Crane For SalesOrder(MOQ) :
1Payment :
T/T LC At SightProduct Origin :
Suizhou City, Hubei Province ChinaColor :
Customized ColorShipping Port :
Shanghai, Tianjin ,Qingdao Horogos, Erlianhot Etc China Main export PortLead Time :
35-45 daysOptional 3T to 5Tons Loading capacity Crane
Telescopic boom or Knuckled Boom For Choise
190HP ISUZU Truck Mounted With Crane XCMG 5Tons Fold Beoom Crane Loading Capacity:
| General parameter | Vehicle Brand | ISUZU |
| Overall Dimension | 9500×2450×3500mm | |
| Cargo size | 6250×2300×550mm | |
| Kerb Weight | 7000kgs | |
| Loading capacity | 8000kgs | |
| Cab | Cabin | Two doors , power steering |
| Air Condition | With | |
| Engine | Model/Rated Power | 4HK1-TC51 |
| Displacement/ power | 5193L / 141KW,190HP | |
| Emission Standard | Euro 5 | |
| manufacturer | ISUZU motor Co., Ltd. | |
| Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging | ||
| Chassis | driving type | 4*2 |
| Wheel base | 5200mm | |
| Front/rear tread | 1680/1650 | |
| Front axle | 4T front axle | |
| Rear axle | 7T rear axle | |
| Gear box | ISUZU MLD SIX Forwards | |
| leaf spring of suspension | 8/10+6 | |
| Type & Size of Tyre | 8.25R20 (6+1spare tire) | |
| Max Speed | 90-120Km/h | |

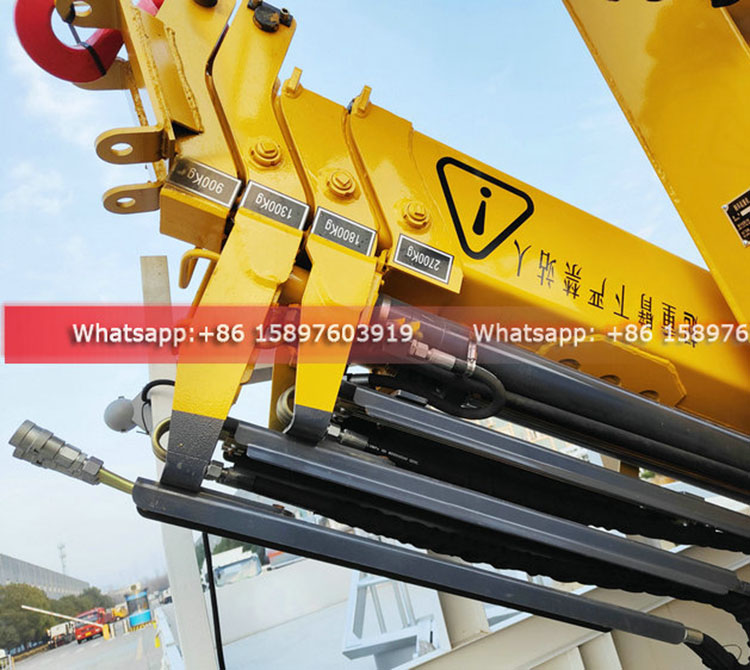

| Other attached components: | Crane Brand model | XCMG SQZ105 |
| Max. Lifting capacity | 5000 Kg | |
| Max. Lifting height | 11.9m | |
| Max.Lifting Moment | 12.5 K.m | |
| working radius | 9.9 m | |
| Recommend Power | 18 Kw | |
| Max. oil flow of hydraulic system | 32 L/min | |
| Max.pressure of hydraulic system | 20 Mpa | |
| oil tank capacity | 90 L | |
| crane weight | 2074 kg | |
| installation space | 900 Mm | |
| rotation angle | All rotation，360° | |
