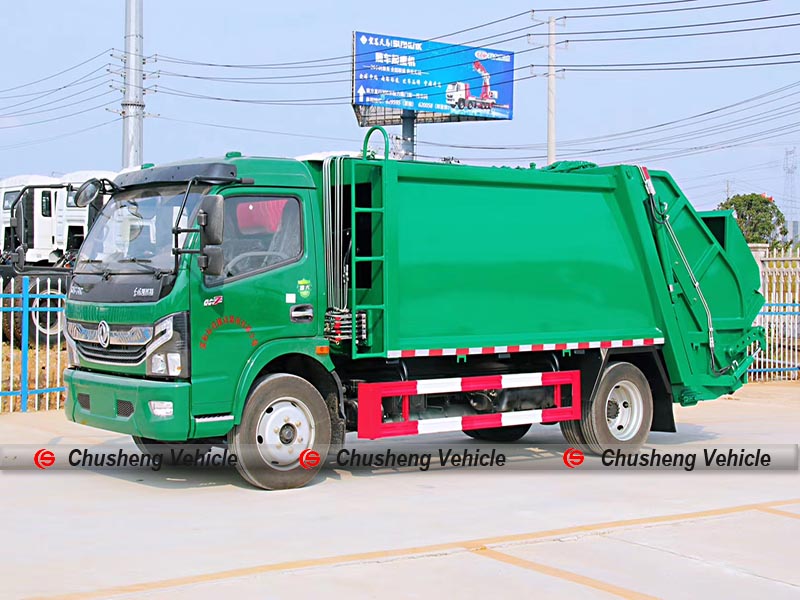

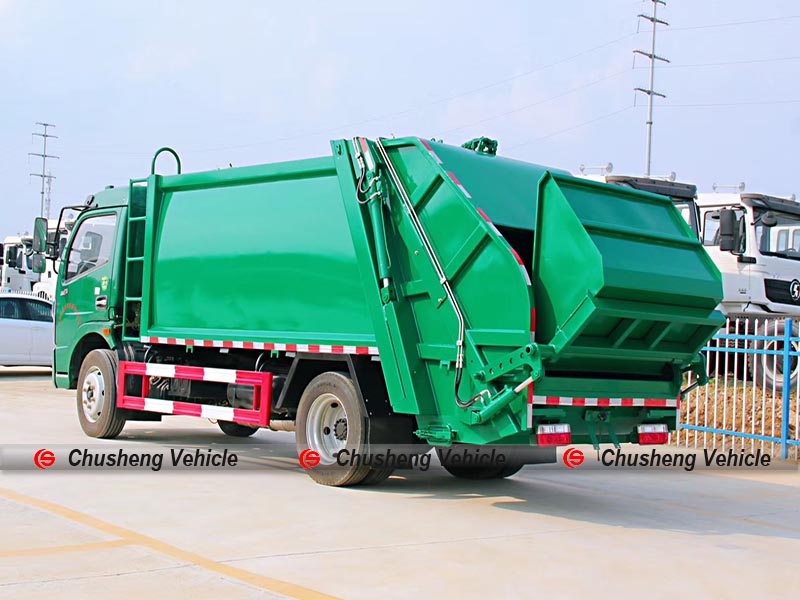

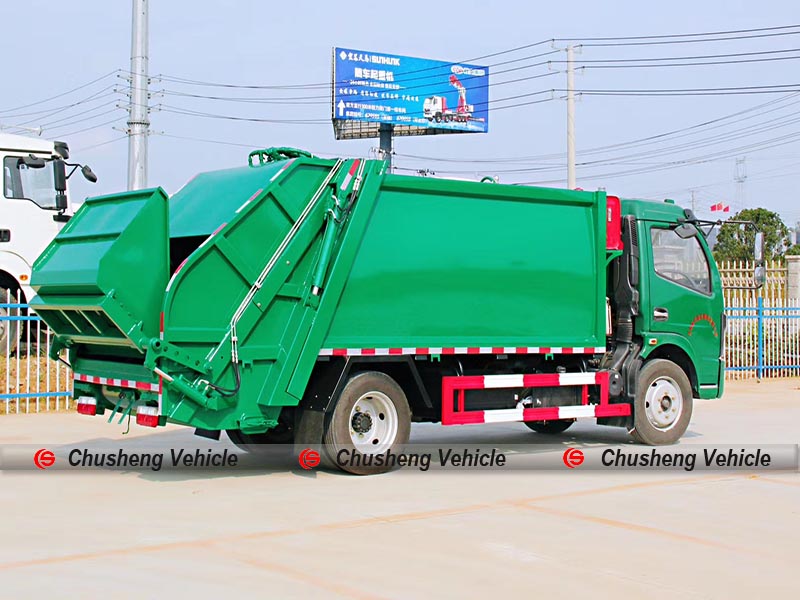

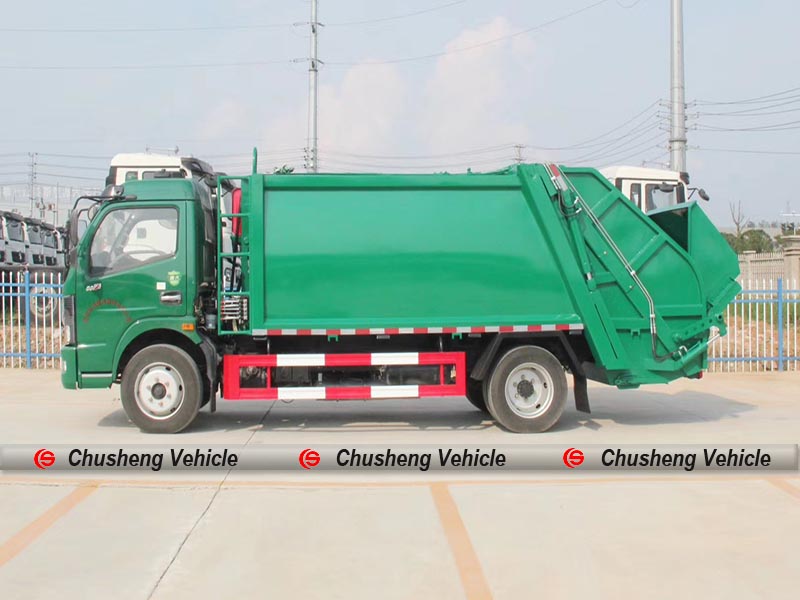

8cbm Dongfeng Garbage Truck

Garbage Compactor Truck

8cbm Dongfeng Garbage Truck

Garbage Truck consists of sealed garbage compartment, hydraulic system and operating system. The whole truck is fully sealed, self-compressed, self-dumped, and all the sewage in the process of compression is entered in the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation and avoids inconvenience to people.

  • product details

Truck Description:

CSC Garbage Truck (also called as bin lorry, compressed garbage truck, dirt-wagon, dust cart trash truck, refuse collection truck, dustcart, waste collection vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.


Advantage:

1. Dongfeng brand chassis, perfect performance, Cummins engine, super powerful, reliable performance.

2. High pressure, good sealing, convenient operation and safety.

3. High compression ratio and large loading capacity.

4. Computer control system to reduce the labor intensity of sanitation workers, and greatly improve the working environment.

5. Compression body capacity from 4 to 18 CBM


Technical Specification:

8cbm Garbage Truck Dongfeng

Vehicle details

Vehicle brand

CSC

GVW

12000 kg

Kerb Weight

6500 kg

Overall dimension

7600x2200x2700 mm

Chassis

Chassis brand

Dongfeng

Engine brand

Yuchai engine

Air conditioner

Equipped

Type of fuel

Diesel

Emission standard

Euro III

Horse power

120HP (85kw)

Displacement

3760 cc

Wheelbase/ No. of axles

3800 mm / 2

Tyre

7.50R16/(6+1)pcs

Max speed

95 km/h

Superstructure details

Capacity

8 CBM

Box material

Carbon steel

Multi-way reversing valve

China famous brand

Hydraulic cylinder

China famous brand

Control system: China famous brand or Siemens of Germany. Double insurance of computer control and manual operation, which greatly guarantees and improves the vehicle utilization rate.

Multiple garbage collection, sewerage collection. Flip mechanism: optional overturning mechanism with garbage bin, sealed cover bin, etc.

Remark

Above specification is just for reference, please send us your detail request.
