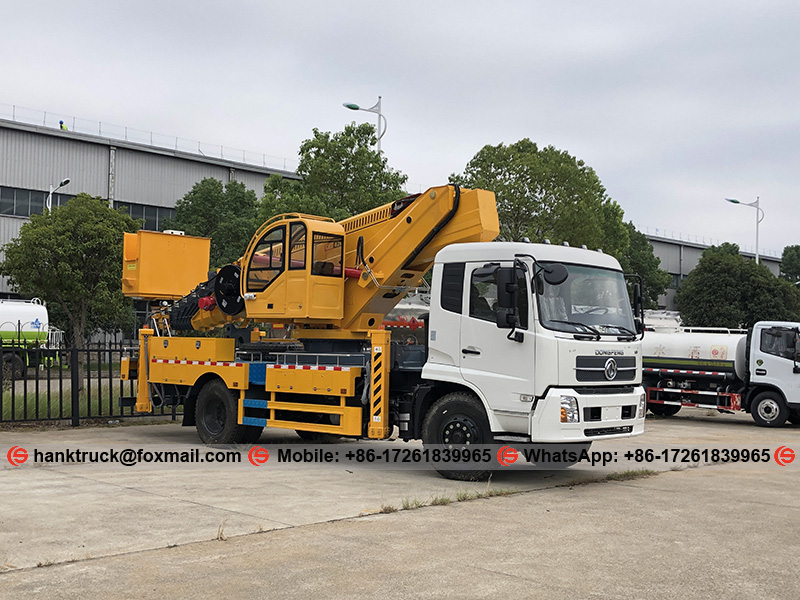

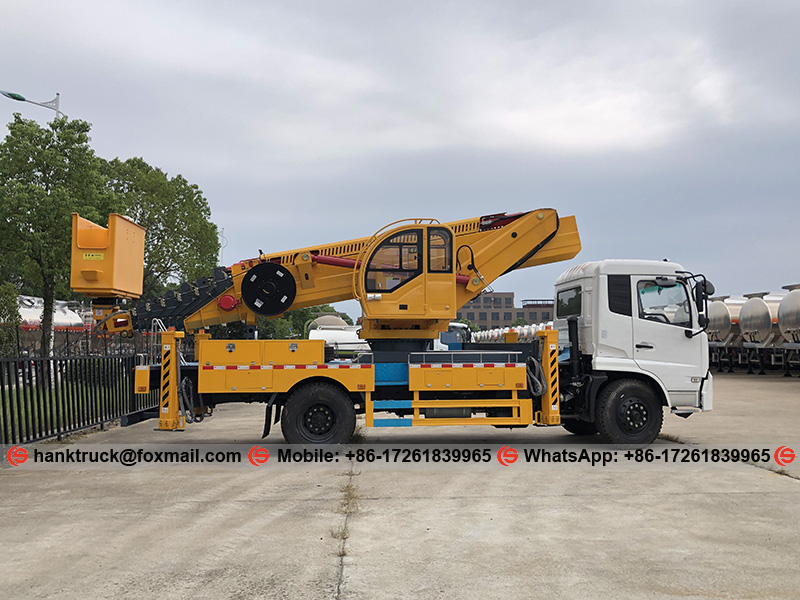

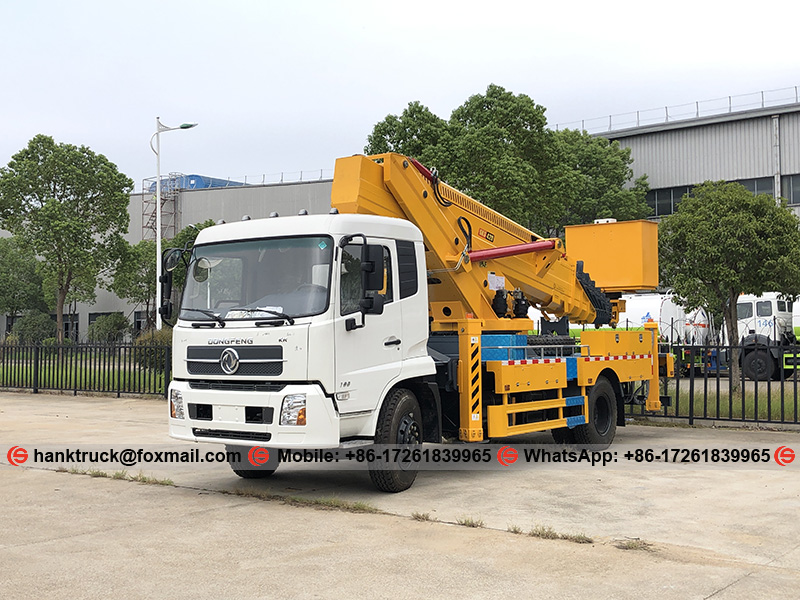

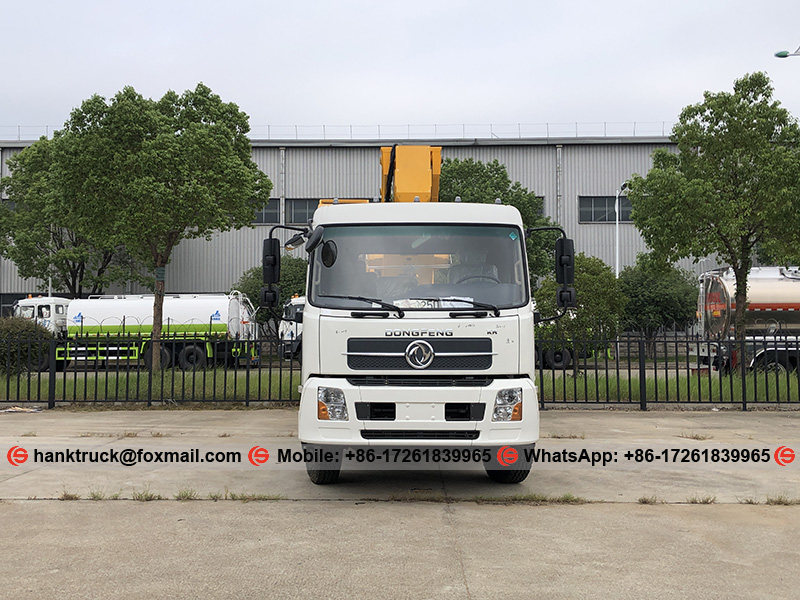

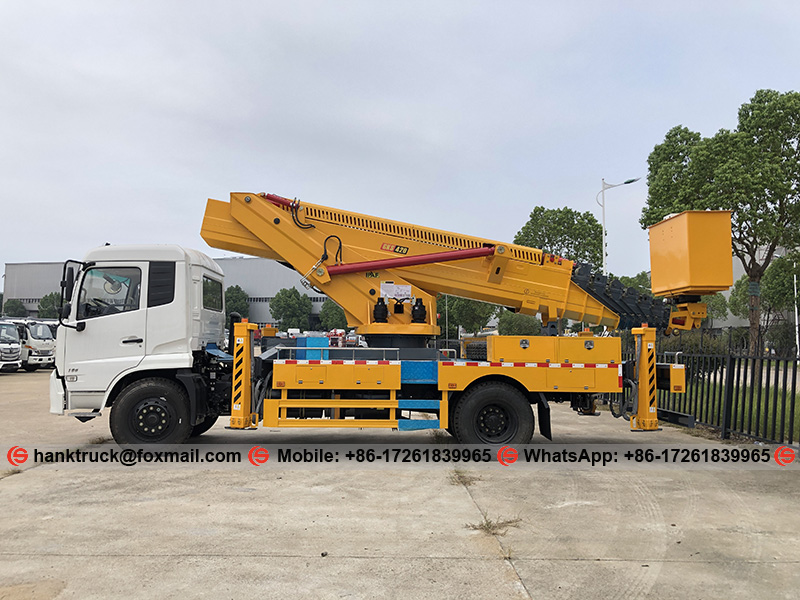

DONGFENG 42 Meters Telescopic Aerial Platform Truck

Aerial Platform Truck

DONGFENG 42 Meters Telescopic Aerial Platform Truck

  • product details

Truck Description:

CSC aerial platform working truck (also known as aerial platform operation truck, aerial working truck, aerial basket truck, bucket truck, aerial cage truck, aerial lift truck, high altitude working truck, telescopic aerial truck, cherry picker) is widely used in field such as street lamp & traffic light maintenance, line maintenance, tree trimming, decoration and advertising etc.


Advantage:

1. The aerial platform adapts high strength steel and famous components such as hydraulic pump, rotate motor, multi-way valve, balance valve and hydraulic cylinder to ensure easy and safe operation.

2. Independent support leg and basket lift switch handle to avoid wrong operation.

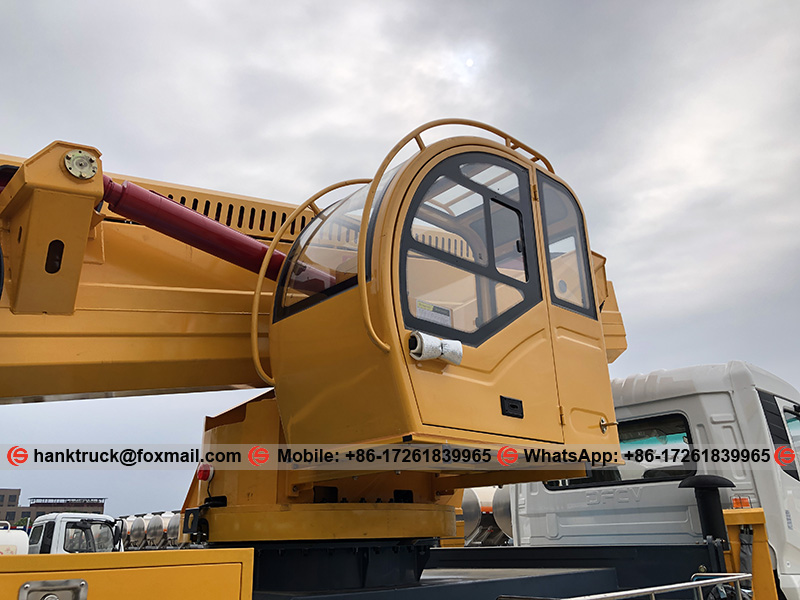

3. Dual basket lift control panels at rotate base and in the basket, ensuring operator reach the working height safely.

4. The spacious working basket can carry 200kg (two operators), and the base can rotate 360 degree continuously.

5. Emergency power unit optional to lower the basket to ground in case of engine failure.


Technical Specification:

DONGFENG 42 Meters Telescopic Aerial Platform Truck

Vehicle Parameters

General

Vehicle Brand

Chusheng

Chassis Brand

DONGFENG

Overall Dimension (mm)

Approx.: 9000x2500x3500 mm

Gross Vehicle Weight (kg)

16,000 kg

Curb/Net Weight (kg)

/

Chassis Parameters

Cab

Seat Capacity

3 seats and sleeper

A/C

Yes

Engine

Fuel Type

Diesel

Engine Brand

Cummins Engine

Power (HP/KW)

190 HP

140 KW

Displacement (ml)

5900 ml

Emission Standard

Euro 2

Chassis

Drive Type

4x2, Left hand drive

Gear Box

DONGFENG brand manual gear box, 6 forward speed & 1 reverse

Wheelbase (mm)

4500 mm

Tire Specification

10.00R20

Tire No. (pcs)

6+1 pcs

Max Speed (km/h)

95 km/h

Aerial Platform Structure Parameters

Basket Rated Capacity (kg)

200 KG

Max Working Height (m)

42 Meter

Control System

CAN bus system. Controlled in bucket and on ground, both can control engine start and stop.

Slewing

Base 360 degree continuous rotation; Bucket ±90 degree rotation.

Hydraulic System

Load sensitive electro-hydraulic proportional control, stepless speed regulation, equipped with emergency pump

Safety System

Interlock, soft legs alarm, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level gauge, boom max position limit and protection devices, leveling system.

Bucket Leveling System

Equal volume oil cylinder hydraulic auto leveling system

Contact

Mr. Hank

Mobile & WhatsApp No.: +86-17261839965

E-mail:


Send Us An Inquiry
The perfect after-sales service and technical support.  Look forward to your cooperation!
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
