Truck Description:
CSC aerial platform
working truck (also known as aerial platform operation truck, aerial working
truck, aerial basket truck, bucket truck, aerial cage truck, aerial lift truck, high altitude
working truck, telescopic aerial truck, cherry picker) is widely used in field
such as street lamp & traffic light maintenance, line maintenance, tree
trimming, decoration and advertising etc.
Advantage:
1. The aerial
platform adapts high strength steel and famous components such as hydraulic
pump, rotate motor, multi-way valve, balance valve and hydraulic cylinder to
ensure easy and safe operation.
2. Independent
support leg and basket lift switch handle to avoid wrong operation.
3. Dual basket lift
control panels at rotate base and in the basket, ensuring operator reach the
working height safely.
4. The spacious working
basket can carry 200kg (two operators), and the base can rotate 360 degree continuously.
5. Emergency power
unit optional to lower the basket to ground in case of engine failure.
Technical Specification:

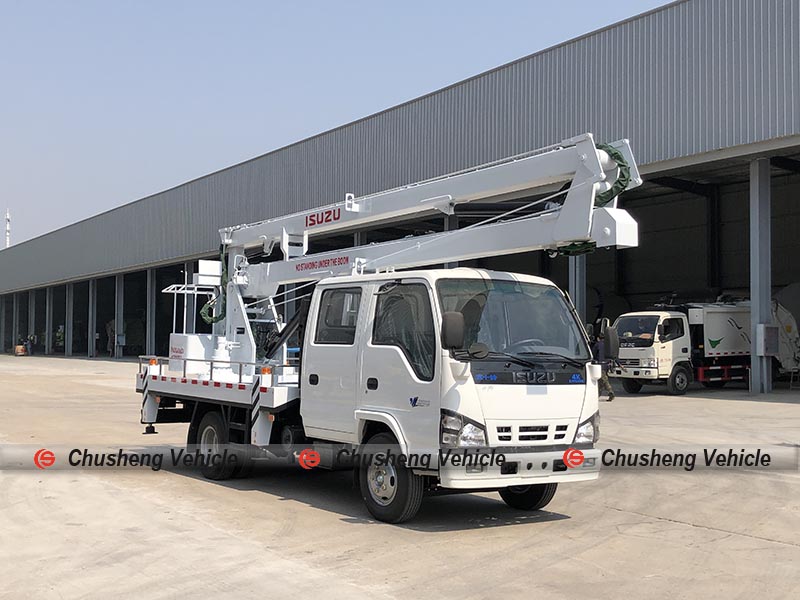

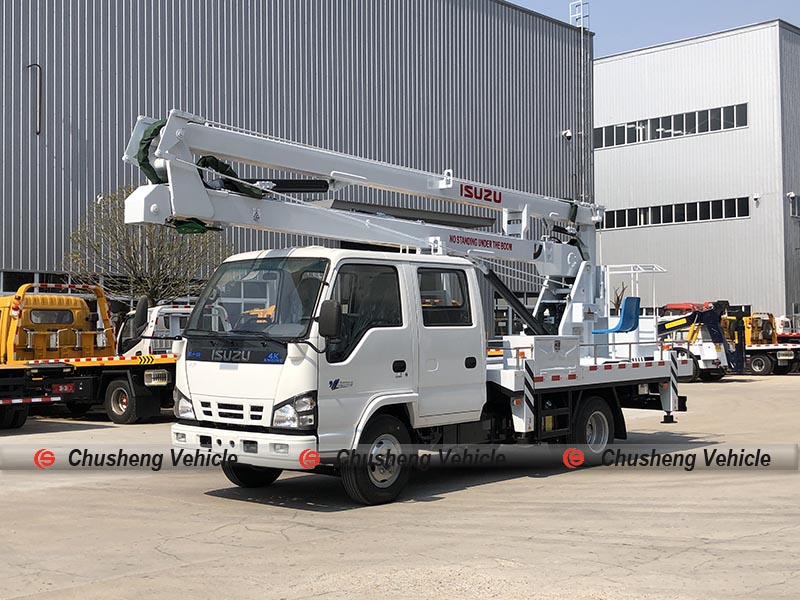

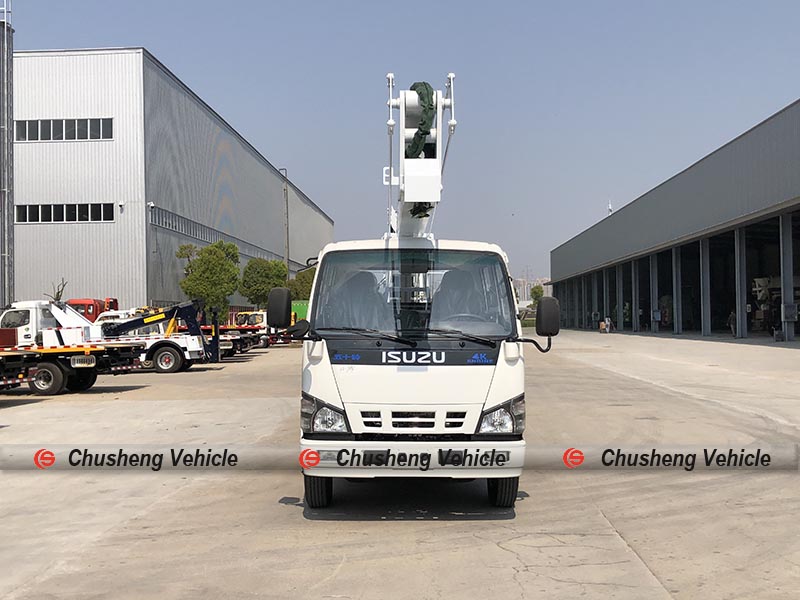

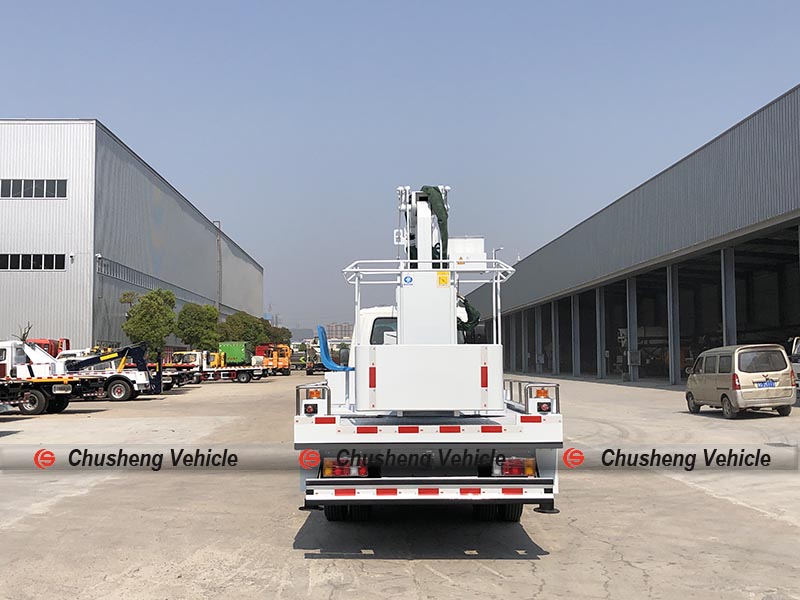

ISUZU ELF Double Cabin 16 Meter High Aerial Working Truck
|
Vehicle Parameters
|
General
|
Vehicle Brand
|
Chusheng
|
Chassis Brand
|
ISUZU
|
Overall Dimension
(mm)
|
7650x1980x3100 mm
|
Gross Vehicle Weight
(kg)
|
6,180 kg
|
Curb/Net Weight
(kg)
|
5,850 kg
|
Chassis Parameters
|
Cab
|
Seat Capacity
|
2+3 seat
|
A/C
|
Yes
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
ISUZU Turbo Engine
|
Power (HP/KW)
|
120 HP
|
88 KW
|
Displacement (ml)
|
2999 ml
|
Emission Standard
|
Euro 4
|
Chassis
|
Drive Type
|
4x2, Left hand
drive
|
Gear Box
|
ISUZU MSB gear box,
5 forward speed & 1 reverse, no overhaul within 500,000 km.
|
Wheelbase (mm)
|
3360 mm
|
Tire Specification
|
7.00R16
|
Tire No. (pcs)
|
6+1 pcs
|
Max Speed (km/h)
|
95 km/h
|
Aerial Platform
Structure Parameters
|
Basket Rated Capacity
(kg)
|
200 KG
|

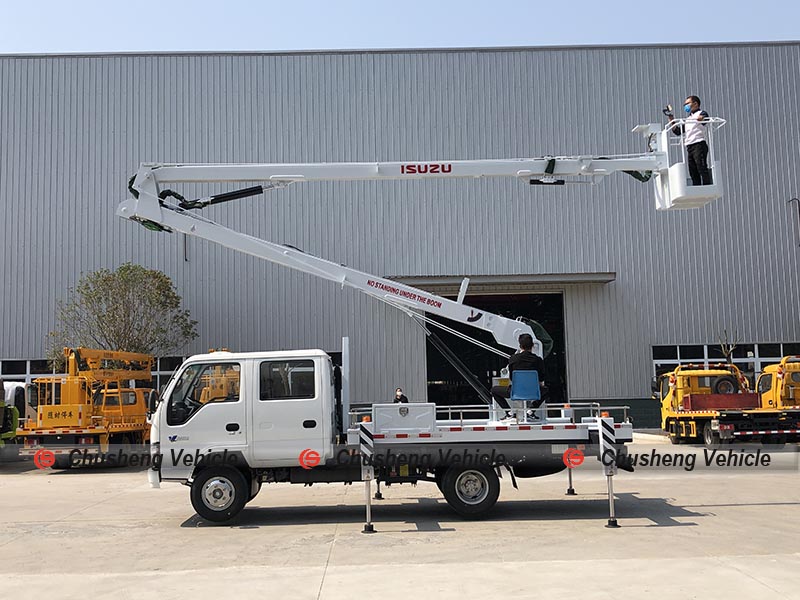

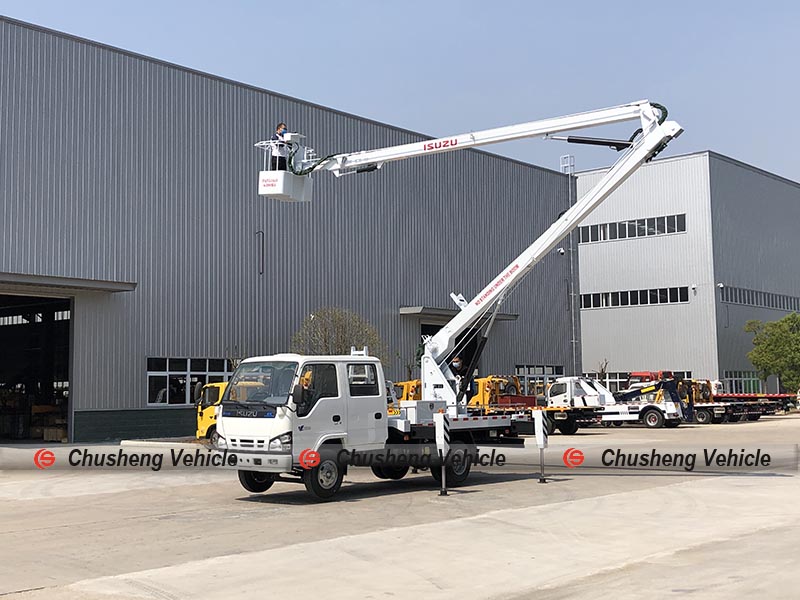

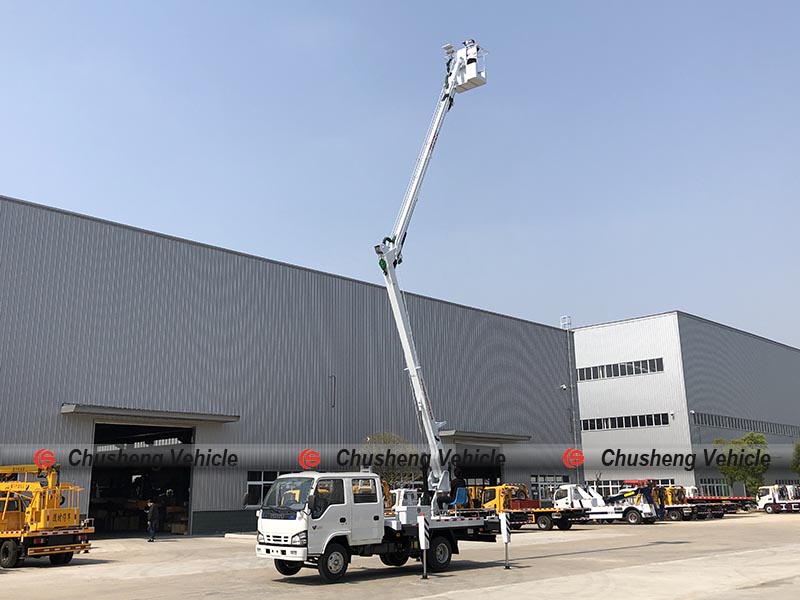

Working Height (m)
|
16 Meter
|
Slewing
|
360 degree
continuous rotation
|
Safety Components
|
Balance valve,
hydraulic lock, working light, warning flash light, emergency stop, lifting
hook (12-20 meter model), safety belt etc.
|
Emergency System
|
Emergency power unit equipped
(12-16 meter model optional) to lower the operator to ground in case of engine
failure.
|
Optional
|
Emergency power
unit; Fiberglass basket; Basket rotate ±90°
|
