Truck Description:
CSC garbage compactor truck (also known as garbage truck, compressed garbage truck, refuse collection truck, waste collection vehicle, dirt-wagon, dust cart trash truck, dustcart, and bin lorry) is a special purpose vehicle used to collect and transport all kinds of garbage in municipal sanitation department.
Advantage:
1. The garbage box is made of high strength wear resistant steel plate, prolonging box service life.
2. Top China brand cylinders and multi-way valve, high hydraulic pressure and high compression ratio up to 2.5:1, ensuring better loading capacity.
3. Intelligent integrated control panel, easier to operate and greater efficiency; the multi-way valve control always available just in case.
4. Two sewage tanks system: one sewage tank under loading container, the other sewage tank under garbage box. All sewage goes into the tanks to avoid dripping during compacting and transportation.
5. Compression box capacity from 3-20 CBM.
6. Various types of garbage bin lifting device available.
Technical Specification:
Garbage compactor truck rear lift device can be
customized to suit different type garbage bin.

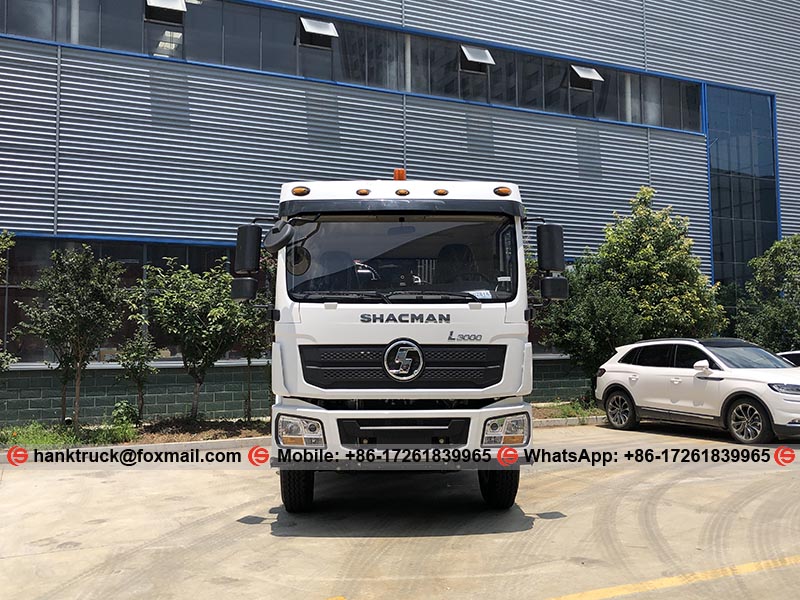

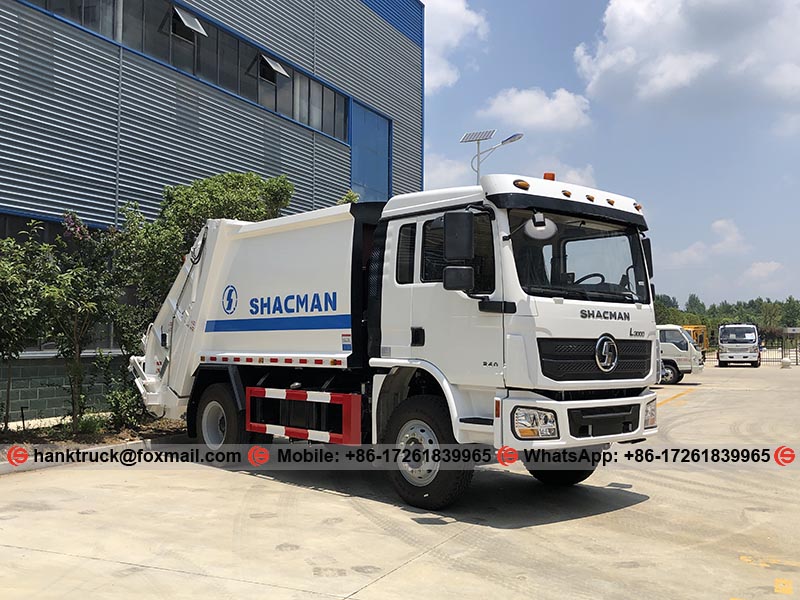

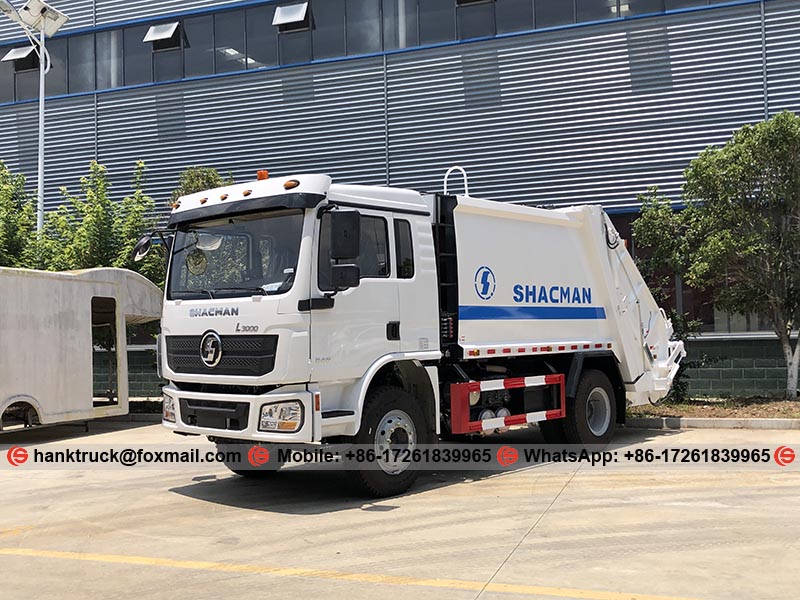

SHACMOTO 12 CBM Garbage Collection and Transport Truck
Vehicle
Parameters
General
Vehicle Brand
Chusheng
Chassis Brand
SHACMAN - L3000
Overall Dimension (mm)
Approx.: 8900x2500x3300 mm
GVW (kg)
18000 kg
Curb/Net Weight (kg)
/
Chassis
Parameters
Cab
Seat Capacity
3 seats and sleeper
A/C
Yes
Engine
Fuel Type
Diesel
Engine Brand
WEICHAI Turbo Engine
Power (HP/KW)
210 HP
155 KW
Displacement (ml)
6230 ml
Emission Standard
Euro 2
Chassis
Drive Type
4x2, Left hand drive
Gear Box
FAST brand manual gear box, 8 forward speed & 2 reverse.
Wheelbase (mm)
4500 mm
Tire Specification
10.00R20
Tire No. (pcs)
6+1 pcs
Max Speed (km/h)
95 km/h
Garbage
Compactor Structure Parameters
Box Capacity
12 CBM
Box Material
High strength wear resistant steel plate
Multi-way Valve
Top China brand or Italy imported brand
Hydraulic Cylinder
Top China brand
Lifting Device
Multiple garbage bin lifting devices optional to
suit different type garbage bin, please see as below demonstration.
Sewage Tank
Two tanks. Equipped to avoid secondary pollution
Optional
Imported multi-way valve; Siemens PLC; HZL hydraulic
cylinder; Rear cover; Dustpan loading container
